Aciq Aciq-24TD-HP32 / Aciq-24TD-AH32 2 Ton 15.2 SEER2 Heat Pump Split System (Upflow/Horizontal-Right)

Product Description

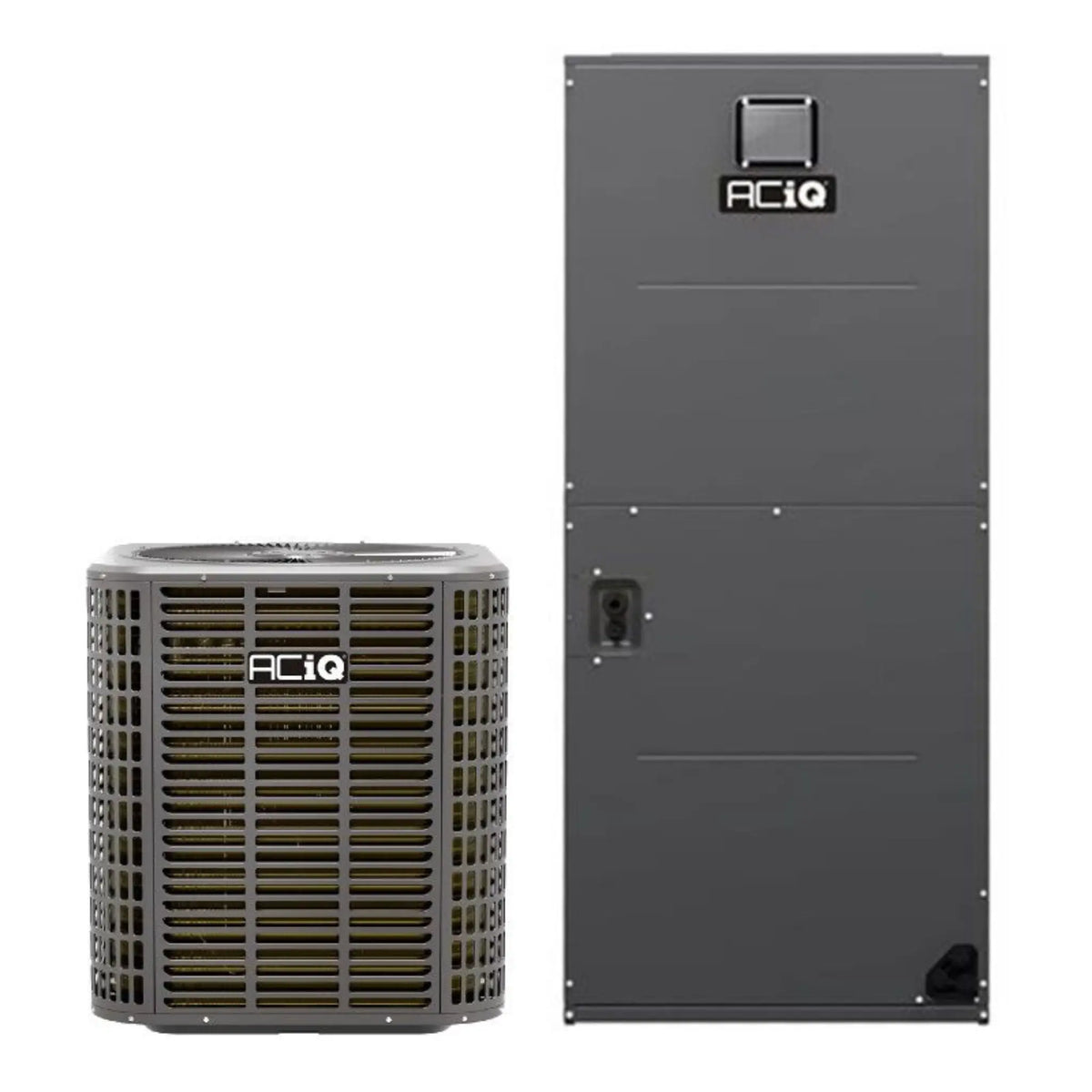

Aciq ACIQ-24TD-HP32 / ACIQ-24TD-AH32 is a complete 2-ton inverter heat pump split system comprising an R32 pre-charged condenser and a 2-ton central air handler configured for upflow or horizontal-right installation. The condenser uses a variable-speed rotary inverter compressor with two-stage operation and 15.2 SEER2 / 8.1 HSPF2 ratings, while the air handler provides up to 990 CFM, multi-speed constant torque blower operation, and optional 5 kW or 10 kW electric backup heat.

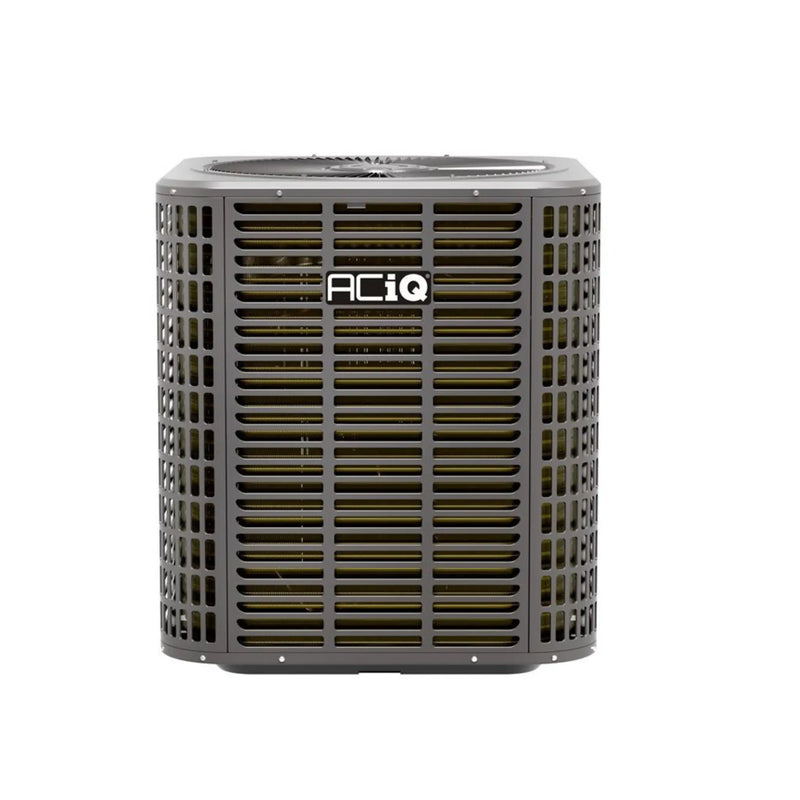

• Condenser: 2 ton, 24,000 BTU heating and cooling, variable-speed rotary inverter compressor, 15.2 SEER2, 8.1 HSPF2
• Refrigerant: Pre-charged with R32 (A2L), 63.5 oz charge; requires R32-compatible indoor equipment

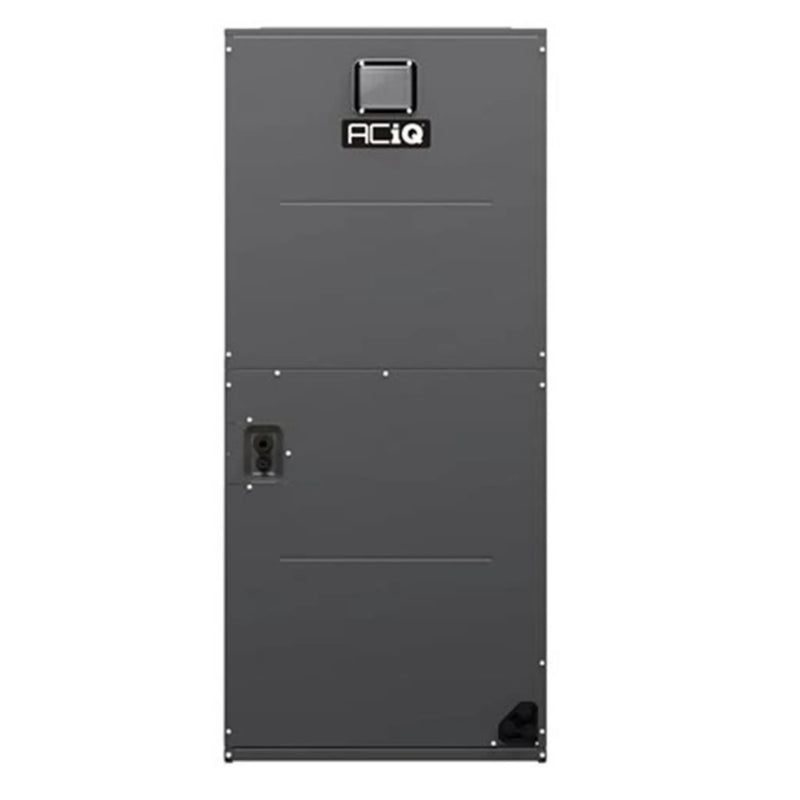

• Air handler: Multi-speed constant torque blower, up to 990 CFM, 18" x 20" filter slot, supports 5 kW or 10 kW electric heat kits

Product Highlights

Complete 2-ton R32 inverter heat pump split system; upflow or horizontal-right air handler; 15.2 SEER2, 8.1 HSPF2; pre-charged with 63.5 oz R32.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-24TD-HP32 / ACIQ-24TD-AH32

Technical Specifications

• Brand: Aciq
• Model: ACIQ-24TD-HP32 / ACIQ-24TD-AH32
• Capacity: 2 Ton
• Cooling Capacity: 24,000 BTU
• Heating Capacity: 24,000 BTU
• SEER2: 15.2
• HSPF2: 8.1
• EER2: 10
• Refrigerant: R32 (A2L)
• Refrigerant Charge: 63.5 oz
• Compressor Type: Rotary (variable-speed inverter)
• Stages: Two stage
• Input Voltage: 208/230V 1 Phase 60 Hz
• Phase: Single Phase
• Condenser Min Breaker Size: 16 Amps
• Condenser Max Breaker Size: 25 Amps
• Condenser Decibel Level: 67 dBA
• Condenser Weight: 127.9 lbs
• Condenser Dimensions (H x W x D): 24 15/16" x 29 1/8" x 29 1/8"
• Condenser Ambient Temperature Range: -4°F to 125°F
• Condenser Min/Max Outdoor Temp for Heating: -4°F to 80°F
• Condenser Min/Max Outdoor Temp for Cooling: 5°F to 125°F
• Air Handler Model: ACIQ-24TD-AH32
• Air Handler Weight: 130.1 lbs
• Air Handler Maximum CFM: 990
• Air Handler Horsepower: 1/5 HP
• Air Handler Decibel Level: 49 dBA
• Air Handler Filter Size: 18" x 20"
• Air Handler Dimensions (H x W x D): 46 1/2" x 21" x 21"
• Air Handler Configuration: Upflow / Horizontal-Right (multi-positional)
• Air Handler Electric Backup Heat: Optional 5 kW or 10 kW
• Air Handler Connection: Flare to braze
• Line Sizes (Liquid / Suction): 3/8" liquid / 3/4" suction
• Filter Drier: Included (field-installed)
