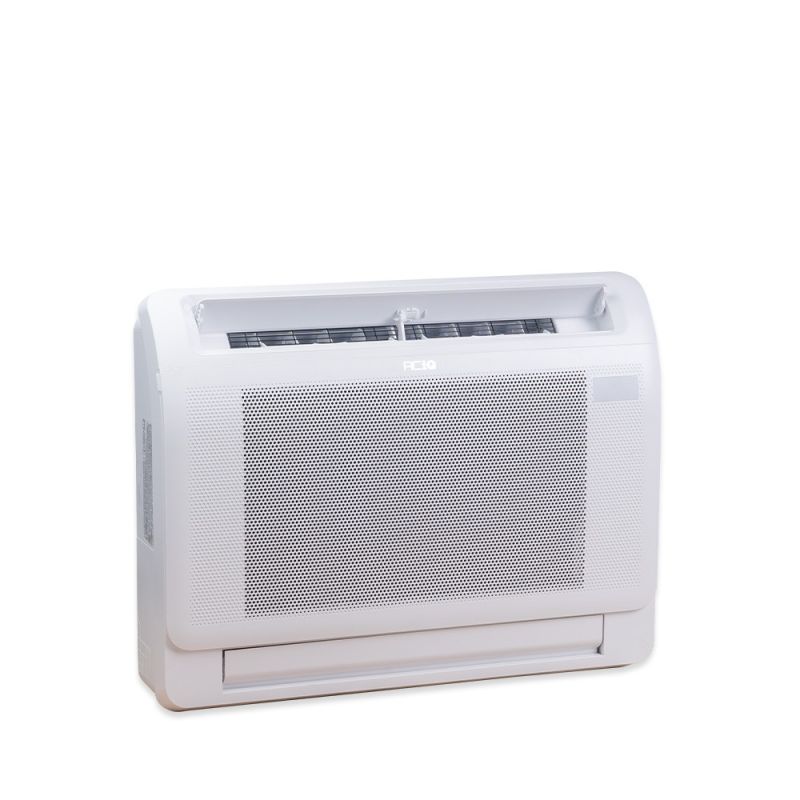

ACIQ ACIQ-24FM-HH-MD 24,000 BTU Floor Mount Mini Split Air Handler - R454B | 230V

Product Description

The ACIQ-24FM-HH-MD is a floor-mounted air handler designed for environments where wall space is limited. It is efficient for sun porches or attic rooms. This air handler is installed low on the wall, making it suitable for various installation challenges.

• Cooling and heating capacity of twenty-four thousand BTUs.
• Compatible with unlevel surfaces using adjustable threaded rods.
• Works well with minimal ceiling clearance, requiring only one inch of space.

Product Highlights

This unit provides effective cooling and heating while minimizing the need for extensive modifications during installation.

Product Information

Standard Information

• Brand: ACIQ
• Model Number: ACIQ-24FM-HH-MD

Technical Specifications

• Weight: 73.19 lbs
• Cooling BTU: 24,000 BTU
• Heating BTU: 24,000 BTU
• Maximum CFM: Up to 735.8 CFM
• Decibel Level: As low as 29.0 dBA
• Refrigerant: R454B
• Electrical: 208/230V, 1 Phase, 60Hz
• Height: 26.57 inches
• Width: 42.05 inches
• Depth: 9.25 inches
• Warranty: 12 year compressor, 7 year parts
