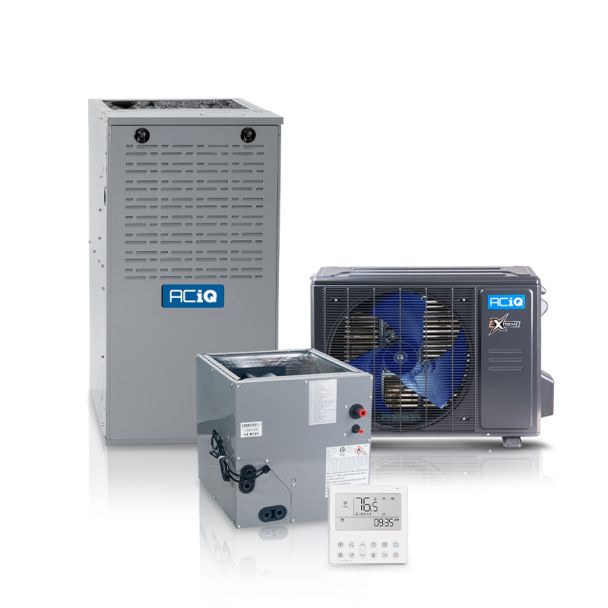

Aciq Aciq-24-HPD Hybrid 2 Ton 18.3 SEER2 80% AFUE 70,000 BTU Multi-positional (Aciq-24-ACL-14-B / G80CTL0701412)

Product Description

The Aciq ACIQ-24-HPD / ACIQ-24-ACL-14-B / G80CTL0701412 hybrid HVAC system combines a 2 ton inverter heat pump, a multi-positional 14.5-inch evaporator cased coil, and an 80% AFUE two-stage gas furnace. The heat pump provides variable cooling from 12,000 to 23,000 BTU and heating to 24,000 BTU with 18.3 SEER2 and R454B refrigerant; the furnace delivers 66,000 BTU input (54,000 BTU output) with a variable-speed ECM blower and silicon nitride hot surface ignition.

• Inverter variable-speed heat pump: 2 ton, 12,000–23,000 BTU cooling, 12,000–24,000 BTU heating, 18.3 SEER2, 10.0 HSPF2, R454B refrigerant, variable inverter twin rotary compressor, 74.08 oz refrigerant charge, extreme-heat operation to -22°F.
• Two-stage gas furnace: 66,000 BTU input (54,000 BTU output), 80% AFUE, variable-speed ECM blower, direct ignition with silicon nitride hot surface ignitor, multi-positional configuration (upflow/downflow/horizontal).
• Multi-positional 14.5-inch evaporator cased coil with factory-installed TXV; package includes heat pump, coil, and furnace and is designed for flexible installation and compatible blower/furnace pairings.

Product Highlights

Complete 2 ton hybrid system with R454B inverter heat pump (18.3 SEER2), 14.5-inch multi-positional A-coil with TXV, and 80% AFUE two-stage gas furnace for upflow/downflow/horizontal installations.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-24-HPD / ACIQ-24-ACL-14-B / G80CTL0701412

Technical Specifications

• Brand: ACiQ
• Model / MPN (Bundle): ACIQ-24-HPD / ACIQ-24-ACL-14-B / G80CTL0701412
• Package Components: Heat pump (ACIQ-24-HPD); Evaporator cased coil (ACIQ-24-ACL-14-B); Gas furnace (G80CTL0701412)
• Heat Pump Tonnage: 2 Ton
• Heat Pump Cooling Capacity: 23,000 BTU (variable 12,000-23,000 BTU)
• Heat Pump Heating Capacity: 24,000 BTU (variable 12,000-24,000 BTU)
• Heat Pump SEER2: 18.3
• Heat Pump HSPF2: 10.0
• Heat Pump EER2: 11.7
• Heat Pump Refrigerant: R454B
• Heat Pump Compressor Type: Variable inverter twin rotary
• Heat Pump Electrical (Voltage/Phase/Hz): 208/230V, 1 Phase, 60 Hz
• Heat Pump Dimensions (H x W x D): 26.5 in x 35.04 in x 13.46 in
• Heat Pump Weight: 109.13 lbs
• Refrigerant Charge (Heat Pump): 74.08 oz
• Condenser Noise Level: 60 dBA
• Condenser Max CFM: 1765.7
• Condenser Min/Max Outdoor Temp (Heating): -22°F - 75°F
• Condenser Min/Max Outdoor Temp (Cooling): -22°F - 122°F
• Condenser Min Breaker Size: 19 Amps
• Condenser Max Breaker Size: 20 Amps
• Furnace SKU / Model: G80CTL0701412
• Furnace Fuel Type: Natural Gas (field-convertible to Propane with optional kit)
• Furnace Input BTU: 66,000 BTU
• Furnace Output BTU: 54,000 BTU (80% AFUE)
• Furnace AFUE: 80%
• Furnace Blower: Variable Speed - ECM
• Furnace Burner Stages: Two
• Furnace Ignition Type: Direct Ignition with Silicon Nitride Hot Surface Ignitor
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Electrical (Voltage/Phase/Hz): 115V, 1 Phase, 60 Hz
• Furnace Dimensions (H x W x D): 33.33 in x 14.19 in x 29 in
• Furnace Weight: 107.00 lbs
• Evaporator Coil SKU: ACIQ-24-ACL-14-B
• Coil Tonnage: 2 Ton
• Coil Configuration: Multi-positional (upflow/downflow/horizontal)
• Coil Liquid Line Size: 3/8 in
• Coil Suction Line Size: 3/4 in
• Coil Dimensions (H x W x D): 18 in x 14.5 in x 21 in
• Coil Weight: 50.00 lbs
• AHRI Certificate (Furnace): 213148660
• Zone Compatibility: Single Zone
