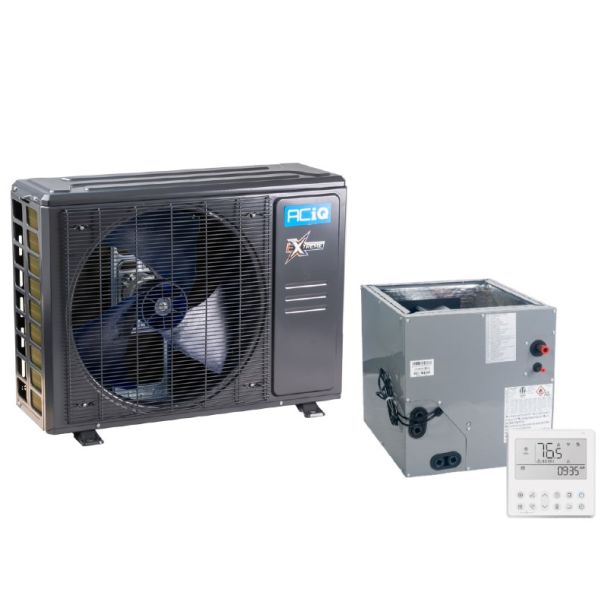

Aciq Aciq-24-HPD / Aciq-24-ACL-B 2 Ton 18.3 SEER2 High Efficiency Central Heat Pump with 17.5 Multi-Positional Cased Coil

Product Description

ACIQ ACIQ-24-HPD / ACIQ-24-ACL-B is a 2 ton central heat pump system combining an inverter-driven variable speed condenser and a 17.5-inch multi-positional cased A-coil evaporator. The unit uses R454B refrigerant, provides 23,000 BTU cooling and 24,000 BTU heating, and achieves 18.3 SEER2 and HSPF2 10.0 ratings. It operates on 208/230V single-phase power, delivers up to 1765.7 CFM, and has a -22°F to 122°F ambient range.

• Inverter-driven variable speed condenser with rotary compressor and 18.3 SEER2 efficiency
• Uses R454B refrigerant; cooling 23,000 BTU and heating 24,000 BTU with up to 1765.7 CFM airflow
• 17.5-inch multi-positional A-coil (upflow, downflow, horizontal); UL listed coil certification

Product Highlights

2 ton inverter heat pump system; R454B refrigerant; 18.3 SEER2, HSPF2 10.0; multi-positional 17.5" A-coil

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-24-HPD / ACIQ-24-ACL-B

Technical Specifications

• Brand: Aciq
• MPN: ACIQ-24-HPD / ACIQ-24-ACL-B
• Condenser SKU: ACIQ-24-HPD
• Evaporator Coil SKU: ACIQ-24-ACL-B
• Tonnage: 2 Ton
• Cooling Capacity: 23,000 BTU
• Heating Capacity: 24,000 BTU
• SEER2: 18.3
• EER2: 11.7
• HSPF2: 10.0
• Refrigerant: R454B
• Refrigerant Charge: 74.08 oz
• Compressor Type: Rotary
• Condenser Stages: Variable Speed
• Maximum Airflow: 1765.7 CFM
• Sound Level: 60 dBA
• Input Voltage: 208/230V, 1 Phase, 60 Hz
• Phase: Single Phase
• Min Breaker Size: 19 Amps
• Max Breaker Size: 20 Amps
• Liquid Line Size: 3/8"
• Suction Line Size: 3/4"
• Ambient Temperature Range: -22°F to 122°F
• Operating Temperature Range (Heating): -22°F to 75°F
• Zone Compatibility: Single Zone
• Condenser Dimensions (H x W x D): 26.50" x 35.04" x 13.46"
• Condenser Weight: 109.13 lbs
• Coil Dimensions (H x W x D): 18" x 17.5" x 21"
• Coil Weight: 50.00 lbs
• Coil Configuration: Multi-Positional (upflow, downflow, horizontal)
• Coil Style: A-Coil
• Coil Certification: UL Listed
• Compressor Sound/Performance Notes: Inverter-driven variable speed condenser with rotary compressor
