Aciq Aciq-24-HPD Aciq-24-ACL-14-B N80MSN0701412A Hybrid 2 Ton 66,000 BTU Pack Replaces Carrier 58SB0A070E14--12

Product Description

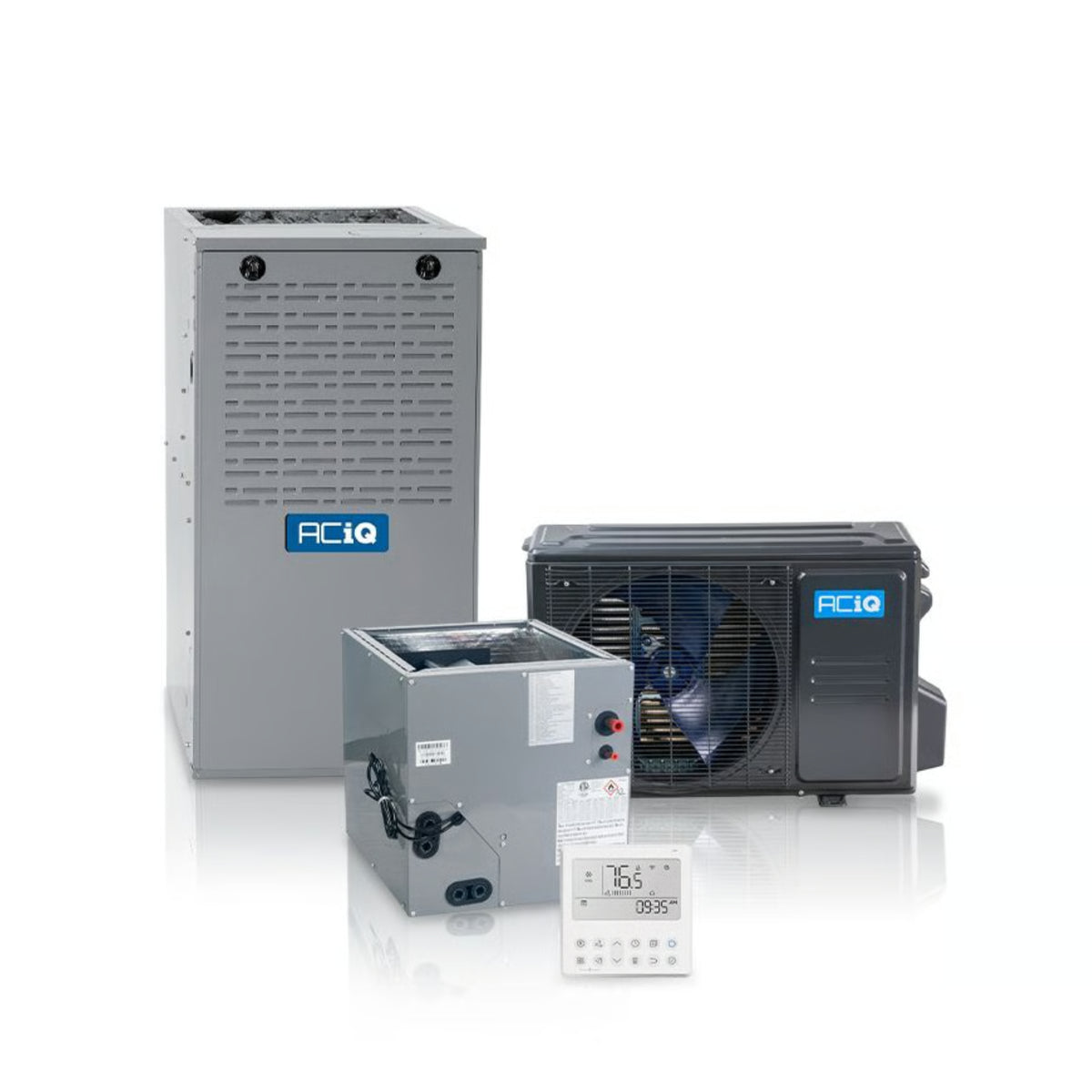

Aciq ACIQ-24-HPD / ACIQ-24-ACL-14-B / N80MSN0701412A is a complete hybrid HVAC system combining a 2 ton inverter heat pump, a 2 ton multi-positional evaporator coil, and a 66,000 BTU 80% AFUE gas furnace. The inverter heat pump provides variable BTU output with R454B refrigerant and cold-climate operation to -22°F, while the furnace offers multi-positional installation and a multi-speed ECM blower for ducted systems.

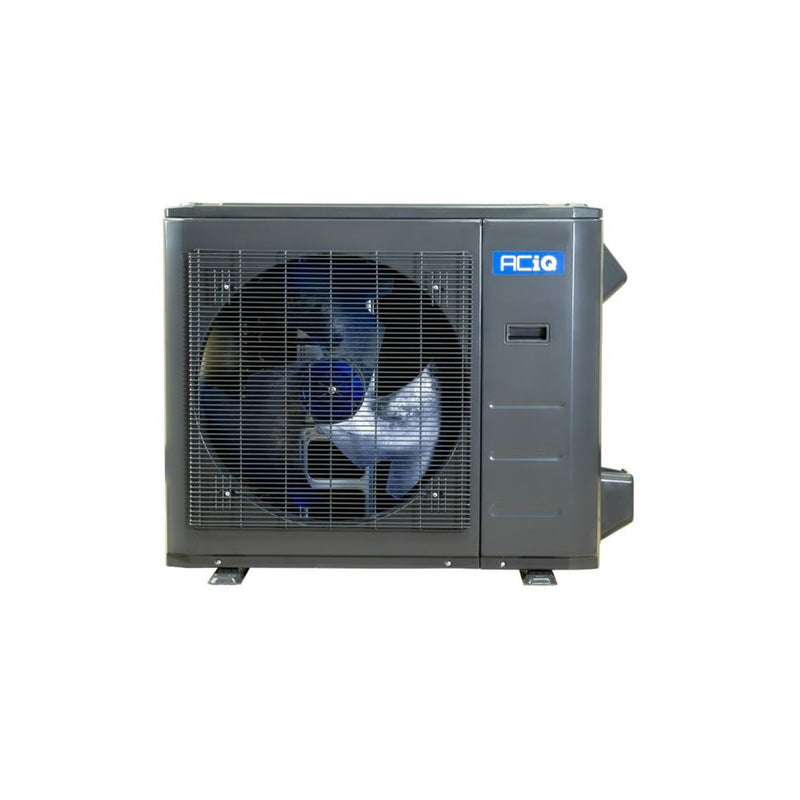

• Inverter heat pump: variable output 12,000–24,000 BTU, 18.3 SEER2, R454B refrigerant, 208/230V 1 phase
• 2 ton multi-positional evaporator coil with factory-installed TXV, 3/8" liquid and 3/4" suction connections
• 66,000 BTU input single-stage gas furnace, 80% AFUE, multi 18-speed ECM blower, upflow/downflow/horizontal

Product Highlights

Complete hybrid package: inverter heat pump, cased A-coil with TXV, and 66,000 BTU 80% AFUE multi-positional gas furnace; cold-climate heating to -22°F; R454B precharged refrigerant.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-24-HPD / ACIQ-24-ACL-14-B / N80MSN0701412A

Technical Specifications

• Brand: ACiQ
• Model / MPN: ACIQ-24-HPD / ACIQ-24-ACL-14-B / N80MSN0701412A
• Package includes: ACIQ-24-HPD heat pump, ACIQ-24-ACL-14-B evaporator coil, N80MSN0701412A furnace
• Tonnage: 2 Ton
• Heat pump cooling BTU: 23,000 BTU
• Heat pump heating BTU: 24,000 BTU
• Heat pump SEER2: 18.3
• Heat pump HSPF2: 10.0
• Heat pump EER2: 11.7
• Heat pump refrigerant: R454B
• Heat pump refrigerant charge: 74.08 oz
• Heat pump compressor type: Variable inverter twin rotary
• Input Voltage: 208/230V 1 Phase 60 Hz
• Heat pump max breaker size: 20 Amps
• Heat pump cooling dimensions (H x W x D): 26.50" x 35.04" x 13.46"

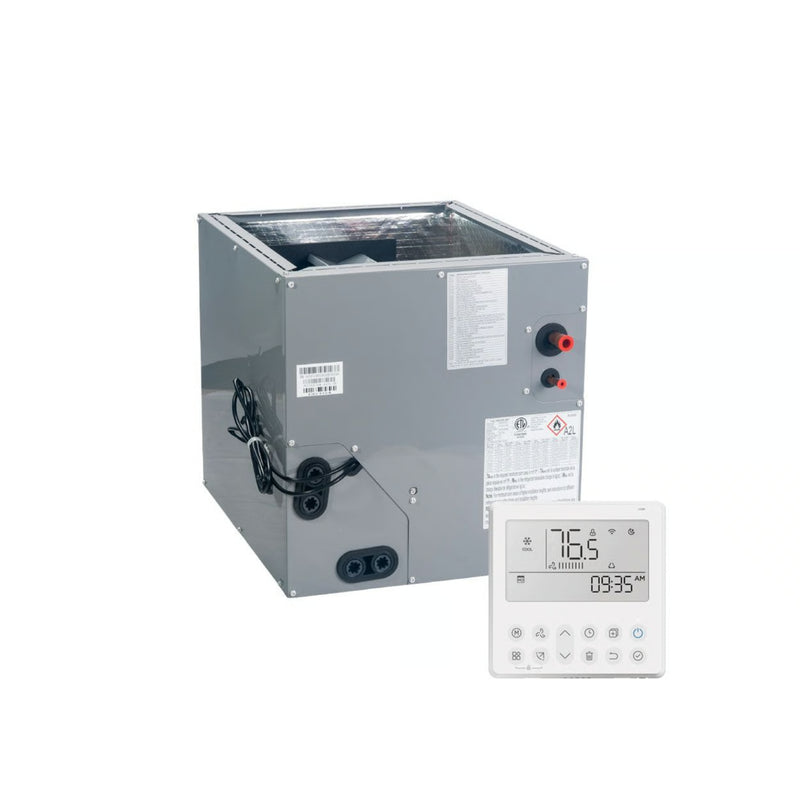

• Coil SKU: ACIQ-24-ACL-14-B
• Coil type: 2 Ton multi-positional evaporator cased A-coil
• Coil refrigerant: R454B
• Coil liquid line: 3/8"
• Coil suction line: 3/4"
• Coil tonnage: 2 Ton
• Coil certification: UL Listed
• Coil dimensions (H x W x D): 18" x 14 1/2" x 21"

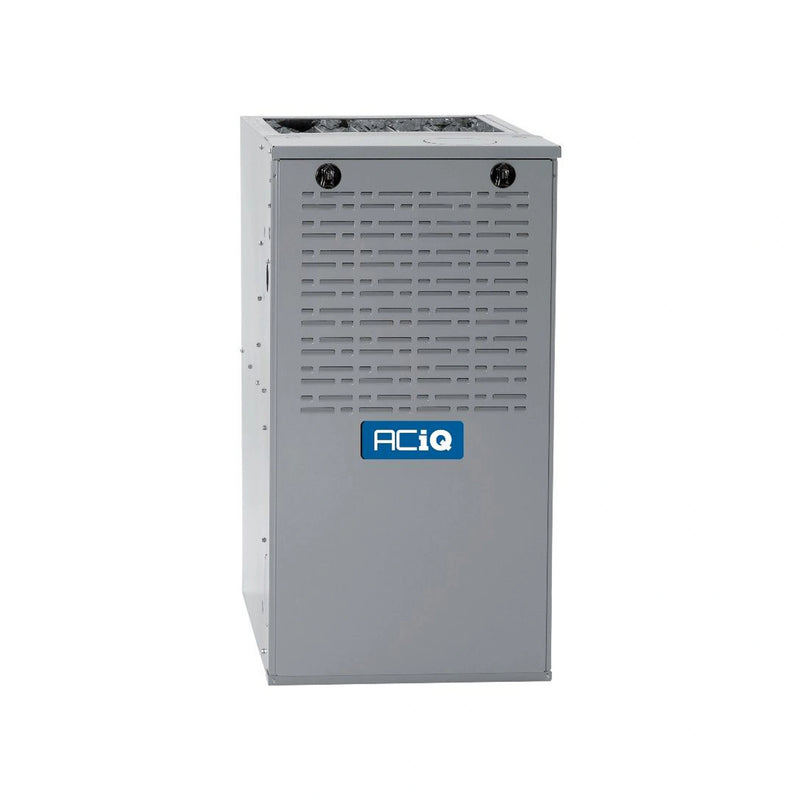

• Furnace SKU: N80MSN0701412A
• Furnace input BTU: 66,000 BTU
• Furnace output BTU: 52,800 BTU
• Furnace AFUE: 80%
• Furnace blower motor: Multi 18-Speed Constant Torque (MCT) ECM Motor
• Furnace max CFM: 1075
• Furnace configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace max breaker size: 15 Amps
• Furnace burner stages: Single
• Furnace ignition type: Direct ignition with silicon nitride hot surface ignitor
• Furnace fuel type: Natural gas (field-convertible to propane with LP kit)
• Furnace dimensions (H x W x D): 33 1/3" x 14 3/16" x 29"
• Furnace exhaust flue requirement: Metal
• Operating ambient temperature range: -22°F to 122°F
• Cold-climate heating capability: Effective heating down to -22°F (Extreme Heat technology)
• Certifications / AHRI: Multiple AHRI certificates referenced
• Replaces / equivalents: Carrier 58SB0A070E14--12; Tempstar TN80ESN0701412A; Bryant 810SA36070E14
