Aciq Aciq-24-HP-E-32 Heat Pump Split System 2 Ton (Multi-Positional) Aciq-24-AH-E-32B

Product Description

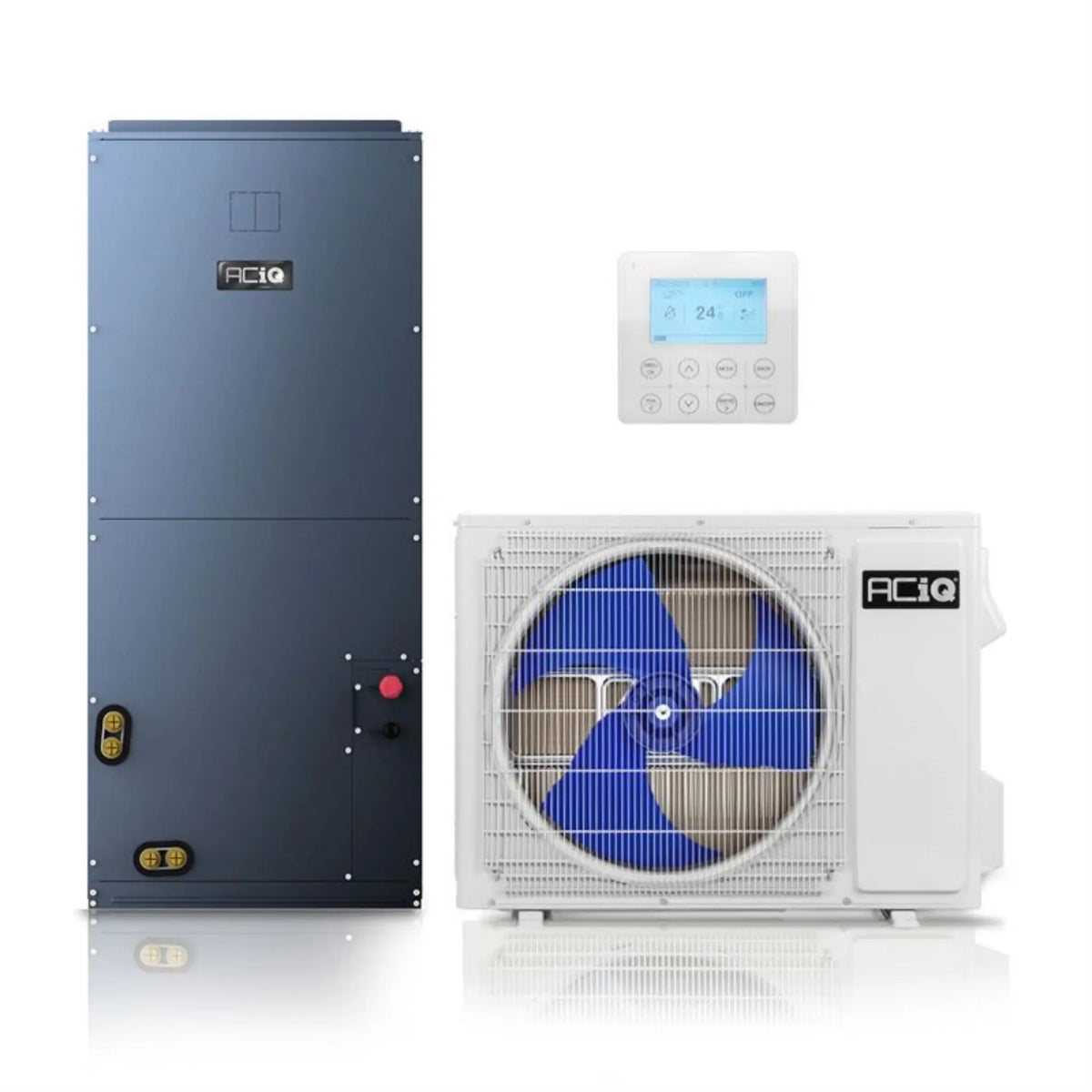

The Aciq ACIQ-24-HP-E-32 / ACIQ-24-AH-E-32B is a complete 2 ton central heat pump split system pairing an inverter-driven R32 condenser with a matched multi-positional air handler. The system provides 17 SEER2 efficiency, 23,000 BTU cooling and 24,000 BTU heating capacity, uses a variable-speed rotary compressor, is pre-charged with 49.38 oz R32 refrigerant, and includes a wired wall-mounted thermostat controller for residential HVAC installations.

• Inverter-driven variable-speed rotary compressor; SEER2 17, EER2 10.5, HSPF2 8.5
• Matched multi-positional air handler (upflow/downflow/horizontal) with optional 5 kW or 10 kW electric heat kits and 18" x 20" filter
• R32 refrigerant (49.38 oz), electrical 208/230 V 1 Phase 60 Hz, liquid/suction valves 3/8" and 5/8", recommended breaker 20–30 Amps

Product Highlights

Matched 2 ton inverter heat pump and multi-positional air handler, R32 refrigerant, 17 SEER2 efficiency

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-24-HP-E-32 / ACIQ-24-AH-E-32B

Technical Specifications

• Brand: ACiQ
• Model / MPN: ACIQ-24-HP-E-32 / ACIQ-24-AH-E-32B
• System Type: 2 Ton heat pump split system (condenser + matched air handler)

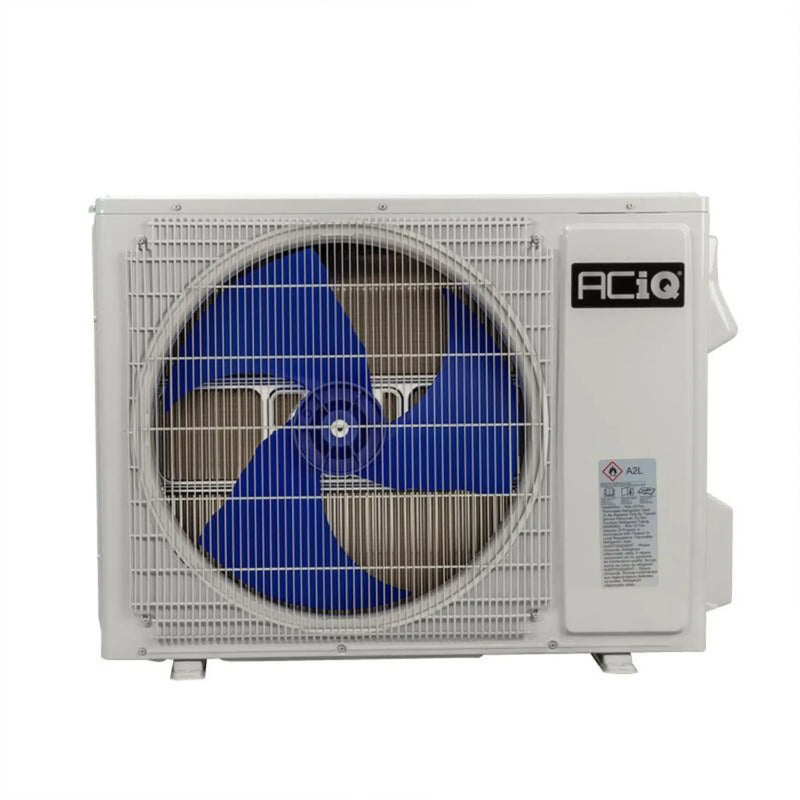

• Condenser SKU: ACIQ-24-HP-E-32

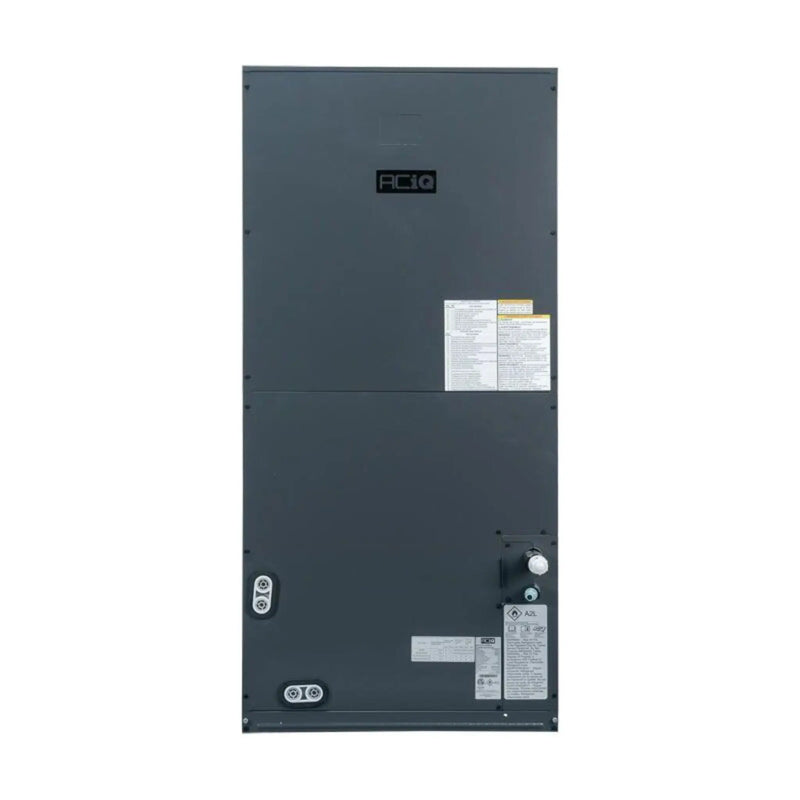

• Air Handler SKU: ACIQ-24-AH-E-32B
• Refrigerant: R32 (A2L)
• Refrigerant Charge: 49.38 oz
• Cooling Capacity: 23,000 BTU
• Heating Capacity: 24,000 BTU
• SEER2: 17
• HSPF2: 8.5
• EER2: 10.5
• Compressor Type: Variable-speed rotary (inverter-driven)
• Condenser Sound Level: 57 dBA
• Air Handler Sound Level: 44 dBA
• Maximum CFM (Condenser): 2059
• Air Handler Max CFM: 800
• Liquid Valve Size: 3/8"
• Suction Valve Size: 5/8"
• Input Voltage: 208/230 V, 1 Phase, 60 Hz
• Phase: Single Phase
• Recommended Outdoor Breaker Size (Min): 20 Amps
• Recommended Outdoor Breaker Size (Max): 30 Amps
• Tonnage: 2 Ton
• Min/Max Outdoor Temp for Heating: 5°F - 75°F
• Min/Max Outdoor Temp for Cooling: 5°F - 125°F
• Ambient Temperature Range: 5°F - 125°F
• Included Controller: Wired wall-mounted thermostat controller
• Air Handler Configuration: Multi-positional (upflow/downflow/horizontal)
• Air Handler Electric Backup Heat Capabilities: 5 kW or 10 kW
• Air Handler Filter Size: 18" x 20"
• Connection Type: Flare to braze
• Condenser Dimensions (H x W x D): 27.5625" x 38.5625" x 15.25"
• Air Handler Dimensions (H x W x D): 45.0" x 17.5" x 21.0"
• Weight (each unit): 129 lbs
• Air Handler Horsepower: 1/3 HP
• Condenser Stages: Variable Speed
• Notes / Safety: Condenser contains A2L R32 refrigerant and must be paired with R32-compatible indoor equipment with required leakage detection per safety requirements
