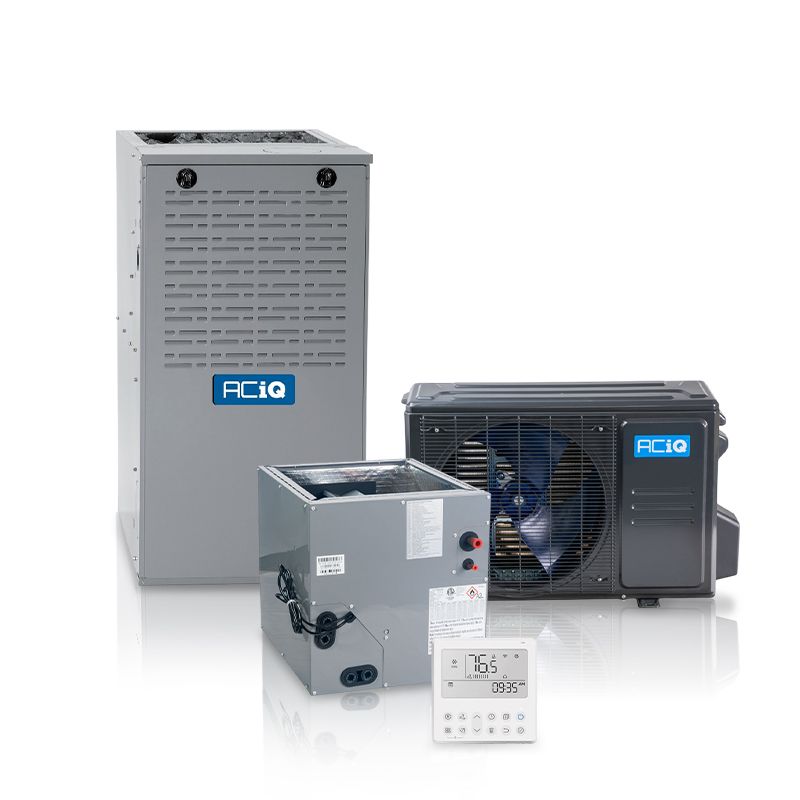

Aciq Aciq-24-EHPD Hybrid 2 Ton 18.1 SEER2 80% AFUE 70,000 BTU System (2 Ton Pack) G80CTL0701412

Product Description

Aciq ACIQ-24-EHPD / ACIQ-24-ACL-14-B / G80CTL0701412 is a hybrid HVAC system combining a 2-ton inverter heat pump condenser, a multi-positional evaporator A-coil, and an 80% AFUE two-stage gas furnace. The condenser uses R454B refrigerant with a variable inverter twin rotary compressor and an 18.1 SEER2 rating with low-temperature heating to -13 F. The furnace delivers 66,000 BTU input with a variable-speed ECM blower. The coil includes a factory-installed TXV kit.

• Inverter variable-speed twin rotary compressor with R454B refrigerant and 18.1 SEER2 efficiency
• 80% AFUE two-stage gas furnace with 66,000 BTU input and variable-speed ECM blower; multi-positional installation
• 2-ton multi-positional A-coil with factory-installed TXV kit; condenser low-temp heating to -13 F

Product Highlights

Complete 2-ton hybrid system: inverter heat pump condenser (ACIQ-24-EHPD), multi-positional A-coil (ACIQ-24-ACL-14-B) and 80% AFUE two-stage furnace (G80CTL0701412).

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-24-EHPD / ACIQ-24-ACL-14-B / G80CTL0701412

Technical Specifications

• Brand: ACiQ
• Model / MPN: ACIQ-24-EHPD / ACIQ-24-ACL-14-B / G80CTL0701412
• Package contents: 2 Ton inverter heat pump condenser (ACIQ-24-EHPD), 2 Ton multi-positional evaporator cased coil (ACIQ-24-ACL-14-B), 80% AFUE two-stage gas furnace (G80CTL0701412)
• Furnace AFUE / Efficiency: 80%
• Furnace heating input (BTU): 66,000
• Furnace burner stages: Two
• Furnace blower motor: Variable speed - ECM (communicating)
• Furnace configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace fuel type: Natural Gas (field-convertible to Propane with LP kit)
• Furnace electrical: 115V, 1 Phase, 60 Hz
• Furnace dimensions (H x W x D): 33 1/3 in x 14 3/16 in x 29 in
• Furnace weight (lbs): 107.00
• Furnace ignition type: Direct ignition with silicon nitride hot surface ignitor
• Condenser SKU: ACIQ-24-EHPD
• Condenser refrigerant: R454B
• Condenser refrigerant charge: 74.08 oz.
• Condenser weight (lbs): 109.13
• Condenser cooling capacity (BTU): 24,000
• Condenser heating capacity (BTU): 26,000
• Condenser SEER2: 18.1
• Condenser EER2: 11.0
• Condenser HSPF2: 9.7
• Condenser compressor type: Variable inverter twin rotary
• Condenser electrical: 208/230V, 1 Phase, 60 Hz
• Condenser dimensions (H x W x D): 26.50 in x 35.04 in x 13.46 in
• Condenser operating temperature (cooling): -13 F to 122 F
• Condenser operating temperature (heating): -13 F to 75 F
• Coil SKU: ACIQ-24-ACL-14-B
• Coil type: 2 Ton multi-positional evaporator cased A-coil
• Coil tonnage: 2 Ton
• Coil refrigerant: R454B
• Coil features: Factory-installed TXV kit; compatible with AC-only or heat pump condensers
• Coil dimensions (H x W x D): 18 in x 14 1/2 in x 21 in
• Coil weight (lbs): 50.00
• AHRI / Certifications: AHRI certificate numbers and AHRI/submittal PDFs provided
