Aciq Aciq-24-EHPD Hybrid 2 Ton 16 SEER2 80% AFUE 70,000 BTU (2 Ton Package Aciq-24-ACL-14-B / N80MSN0701412A)

Product Description

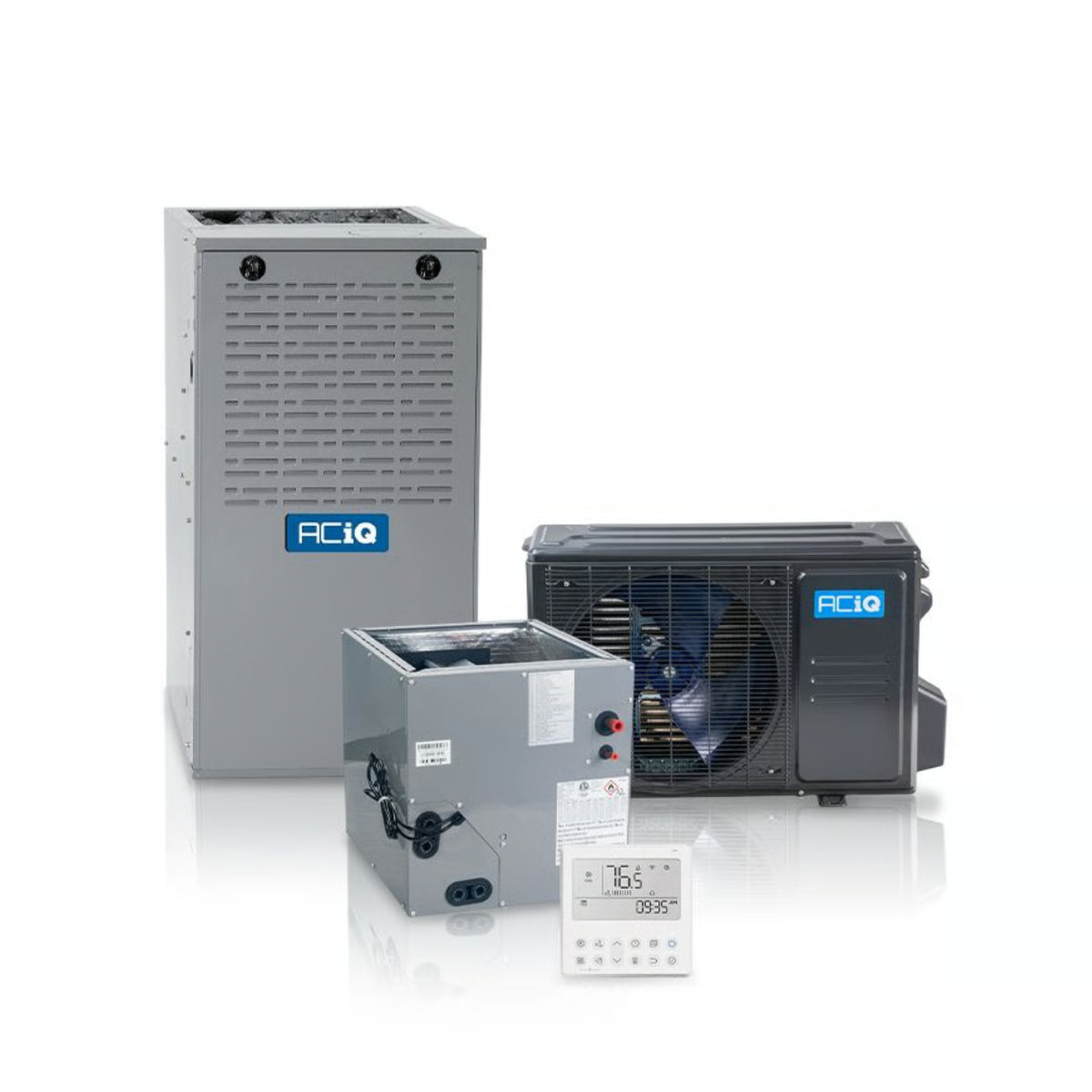

The Aciq ACIQ-24-EHPD / ACIQ-24-ACL-14-B / N80MSN0701412A is a hybrid residential HVAC system combining a 2-ton inverter heat pump condenser, a 2-ton multi-positional evaporator coil with factory-installed TXV, and a 66,000 BTU 80% AFUE single-stage gas furnace. The inverter condenser uses R454B refrigerant and variable inverter twin rotary compressor technology to modulate capacity for cooling and heating across wide ambient ranges.

• 2-ton inverter heat pump condenser (ACIQ-24-EHPD) with R454B refrigerant, 12,000–24,000 BTU cooling and 12,000–26,000 BTU heating output
• 66,000 BTU input, 80% AFUE multi-positional single-stage gas furnace (N80MSN0701412A) with multi-speed ECM blower and direct ignition
• 2-ton multi-positional evaporator coil (ACIQ-24-ACL-14-B) with factory-installed TXV

Product Highlights

Hybrid 2-ton system with inverter heat pump (R454B), multi-positional 66k BTU 80% AFUE furnace, factory TXV coil.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-24-EHPD / ACIQ-24-ACL-14-B / N80MSN0701412A

Technical Specifications

• Brand: Aciq
• Model / MPN: ACIQ-24-EHPD / ACIQ-24-ACL-14-B / N80MSN0701412A
• System type: Hybrid heat pump and gas furnace system
• System tonnage: 2 Ton

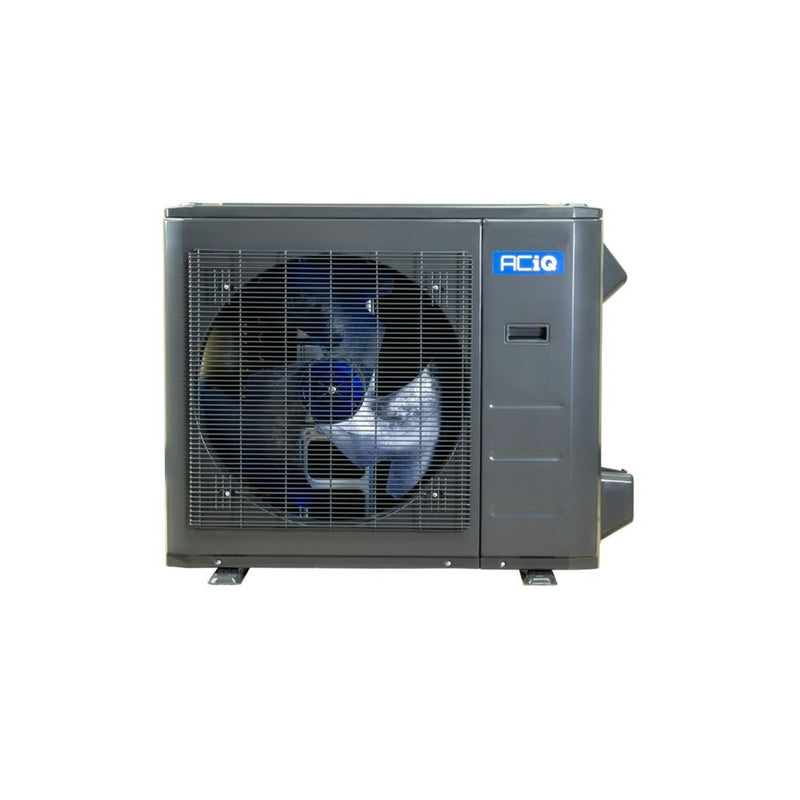

• Heat pump model: ACIQ-24-EHPD
• Heat pump compressor type: Variable inverter twin rotary
• Heat pump cooling capacity: 24,000 BTU
• Heat pump heating capacity: 26,000 BTU
• Heat pump variable output (cooling): 12,000 - 24,000 BTU
• Heat pump variable output (heating): 12,000 - 26,000 BTU
• Heat pump SEER2: 18.1
• Heat pump HSPF2: 9.7
• Heat pump EER2: 11.0
• Heat pump refrigerant: R454B
• Input Voltage: 208/230V, 1 Phase, 60 Hz
• Heat pump dimensions (H x W x D): 26.50" x 35.04" x 13.46"
• Heat pump weight: 109.13 lbs
• Heat pump decibel level: 60 dBA

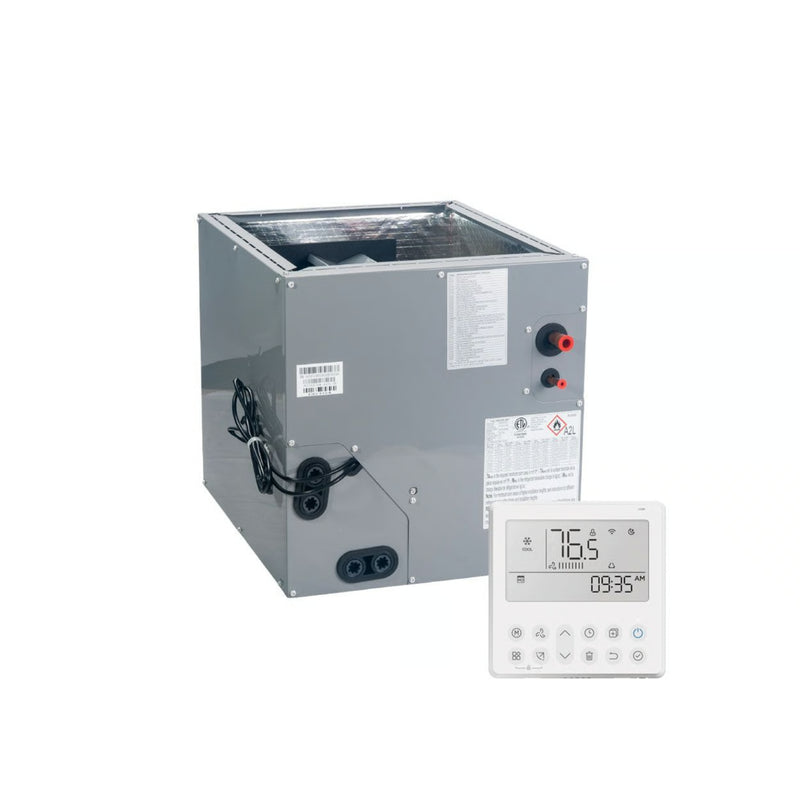

• Evaporator coil model: ACIQ-24-ACL-14-B
• Coil configuration: Multi-positional (upflow, downflow, horizontal), A-coil
• Coil features: Factory-installed TXV kit
• Coil refrigerant compatibility: R454B
• Coil dimensions (H x W x D): 18" x 14.5" x 21"
• Coil weight: 50.00 lbs

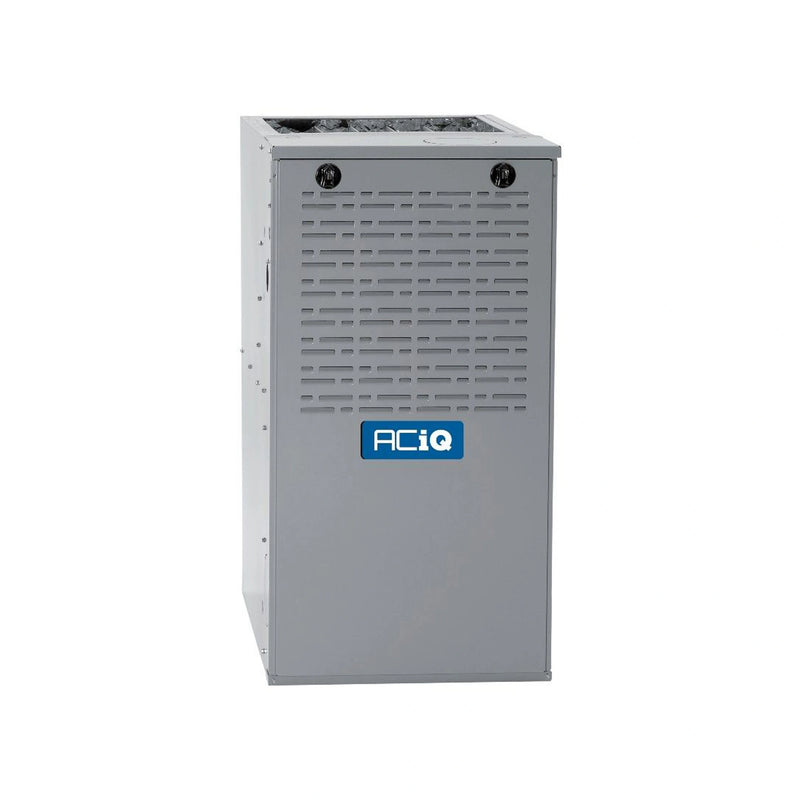

• Furnace model: N80MSN0701412A
• Furnace input BTU: 66,000 BTU
• Furnace output BTU: 52,800 BTU
• Furnace AFUE: 80%
• Furnace configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace blower motor: Multi 18-Speed Constant Torque (MCT) ECM Motor
• Furnace ignition: Direct ignition with silicon nitride hot surface ignitor
• Furnace fuel type: Natural gas (field convertible to propane with optional kit)
• Furnace dimensions (H x W x D): 33 1/3" x 14 3/16" x 29"
• Furnace weight: 114.00 lbs
• System refrigerant charge: 74.08 oz.
• AHRI certificate number: 213146206
• Compliance: Furnace is not Low NOx or Ultra Low NOx compliant
