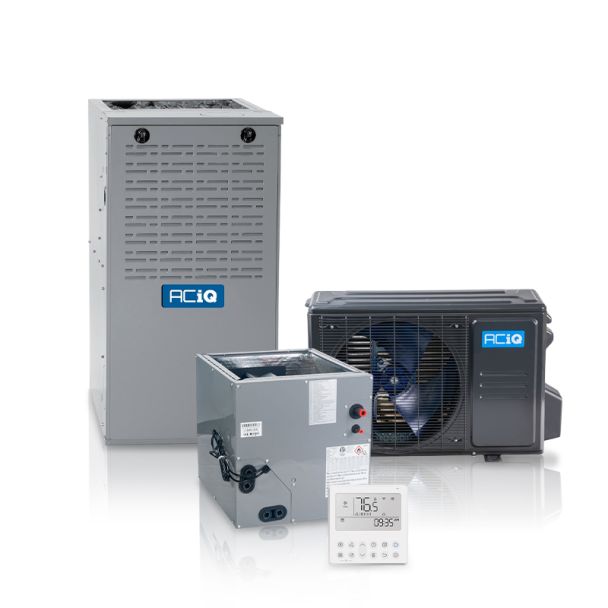

Aciq Aciq-24-EHPD / Aciq-24-ACL-B / N80MSN0701712A hybrid 70,000 BTU heat pump and gas furnace system (2 Ton) replaces N80ESN0701712A

Product Description

The Aciq ACIQ-24-EHPD / ACIQ-24-ACL-B / N80MSN0701712A is a hybrid HVAC system bundle that pairs a 2-ton inverter heat pump condenser, a 2-ton multi-positional evaporator A-coil, and a 66,000 BTU 80% AFUE single-stage gas furnace. The inverter condenser provides variable cooling (12,000–24,000 BTU) and heating (12,000–26,000 BTU) using R454B refrigerant with 18.1 SEER2 and 9.7 HSPF2. The furnace features a multi-speed ECM blower, direct silicon nitride hot surface ignition, and is field-convertible to propane.

• Inverter heat pump ACIQ-24-EHPD: 2 Ton, 18.1 SEER2, 9.7 HSPF2, R454B refrigerant, variable 12,000–24,000 BTU cooling and 12,000–26,000 BTU heating
• Multi-positional A-coil ACIQ-24-ACL-B: 2 Ton evaporator cased coil with factory-installed TXV; liquid line 3/8" and suction line 3/4"
• Gas furnace N80MSN0701712A: 66,000 BTU input, 80% AFUE (≈52,800 BTU output), single-stage burner, multi-speed ECM blower, direct Si3N4 ignition, field-convertible to propane

Product Highlights

Matched 2-ton inverter heat pump (R454B) + 2-ton A-coil + 66k BTU 80% AFUE multi-positional furnace; component warranties apply.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-24-EHPD / ACIQ-24-ACL-B / N80MSN0701712A

Technical Specifications

• Brand: Aciq
• Model / MPN (Bundle): ACIQ-24-EHPD / ACIQ-24-ACL-B / N80MSN0701712A
• System Type: Hybrid heat pump and gas furnace system (inverter heat pump + A-coil + gas furnace)
• Included Components: Inverter heat pump condenser (ACIQ-24-EHPD); multi-positional evaporator A-coil (ACIQ-24-ACL-B) with factory-installed TXV; 66k BTU 80% AFUE single-stage gas furnace (N80MSN0701712A)
• Heat Pump SKU: ACIQ-24-EHPD
• Heat Pump Tonnage: 2 Ton
• Heat Pump SEER2: 18.1
• Heat Pump HSPF2: 9.7
• Heat Pump EER2: 11.0
• Heat Pump Cooling Capacity: 24,000 BTU (variable 12,000–24,000 BTU)
• Heat Pump Heating Capacity: 26,000 BTU (variable 12,000–26,000 BTU)
• Heat Pump Refrigerant: R454B
• Heat Pump Refrigerant Charge: 74.08 oz.
• Heat Pump Compressor Type: Variable inverter twin rotary
• Heat Pump Electrical: 208/230V, 1 Phase, 60 Hz
• Heat Pump Breaker Size (Min): 19 Amps
• Heat Pump Breaker Size (Max): 20 Amps
• Heat Pump Max CFM: 1765.7
• Heat Pump Sound Level: 60 dBA
• Heat Pump Operating Temperature Range (Heating): -13°F to 75°F
• Heat Pump Operating Temperature Range (Cooling): -13°F to 122°F
• Heat Pump Dimensions (H x W x D): 26.50 in x 35.04 in x 13.46 in
• Heat Pump Weight: 109.13 lb
• Coil SKU: ACIQ-24-ACL-B
• Coil Type: 2 Ton multi-positional evaporator cased A-coil
• Coil Refrigerant: R454B
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 3/4"
• Coil Dimensions (H x W x D): 18 in x 17.5 in x 21 in
• Coil Weight: 50.00 lb
• Furnace SKU: N80MSN0701712A
• Furnace Input BTU: 66,000 BTU
• Furnace Output BTU: 52,800 BTU (at 80% AFUE)
• Furnace AFUE: 80%
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Blower Motor: Multi-Speed ECM
• Furnace Maximum CFM: 1005
• Furnace Electrical: 115V, 1 Phase, 60 Hz
• Furnace Breaker Size (Max): 15 Amps
• Furnace Burner Stages: Single
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural Gas (field-convertible to Propane with optional LP kit)
• Furnace Dimensions (H x W x D): 33.333... in x 17.5 in x 29 in
• Furnace Weight: 120.00 lb
• Furnace Exhaust Flue Requirement: Metal
• Furnace Replacement MPN: N80ESN0701712A
• AHRI Certificate Number (Furnace): 213146136
