Aciq Aciq-24-EHPD / Aciq-24-ACL-14-B / N80MSN0451412A Hybrid 2 Ton 16 SEER2 80% AFUE 45,000 BTU Heat Pump and Gas Furnace System (2 Ton Package)

Product Description

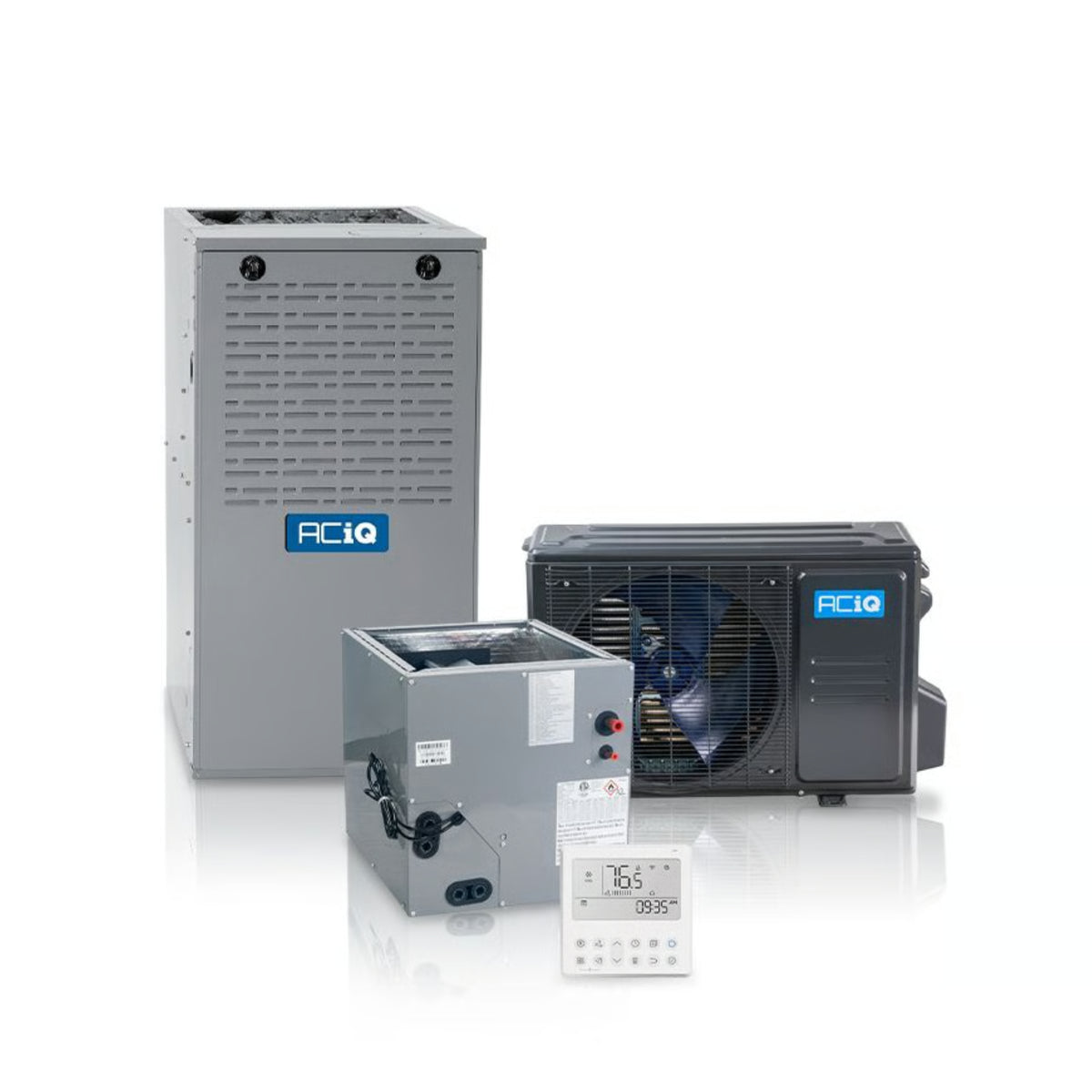

The Aciq ACIQ-24-EHPD / ACIQ-24-ACL-14-B / N80MSN0451412A is a hybrid 2-ton HVAC package combining a 24,000 BTU inverter heat pump condenser (R454B) with a 44,000 BTU 80% AFUE single-stage gas furnace and a 2-ton multi-positional evaporator coil with factory-installed TXV. The inverter condenser provides variable capacity (cooling 12,000–24,000 BTU; heating 12,000–26,000 BTU), 18.1 SEER2 and 9.7 HSPF2, and operates from −13°F to 122°F (cooling). The furnace supports multi-positional installation, a multi 18-speed ECM blower (max 715 CFM), direct ignition, and requires metal venting.

• Inverter variable-speed condenser (R454B) with adaptive sizing and variable output cooling 12,000–24,000 BTU and heating 12,000–26,000 BTU
• 44,000 BTU input single-stage gas furnace, 80% AFUE, multi-positional cabinet, multi 18-speed constant torque ECM blower, direct ignition
• 2-ton multi-positional A-coil with factory-installed TXV; condenser SEER2 18.1, HSPF2 9.7; condenser compressor is covered by manufacturer warranty (warranty details removed from spec listing)

Product Highlights

Hybrid inverter heat pump and single-stage gas furnace package for ducted residential installations; factory TXV evaporator coil and component-specific support.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-24-EHPD / ACIQ-24-ACL-14-B / N80MSN0451412A

Technical Specifications

• Brand: Aciq
• Model / Package MPN: ACIQ-24-EHPD / ACIQ-24-ACL-14-B / N80MSN0451412A
• System Tonnage: 2 Ton
• Package Components: ACIQ-24-EHPD condenser; ACIQ-24-ACL-14-B evaporator coil; N80MSN0451412A furnace

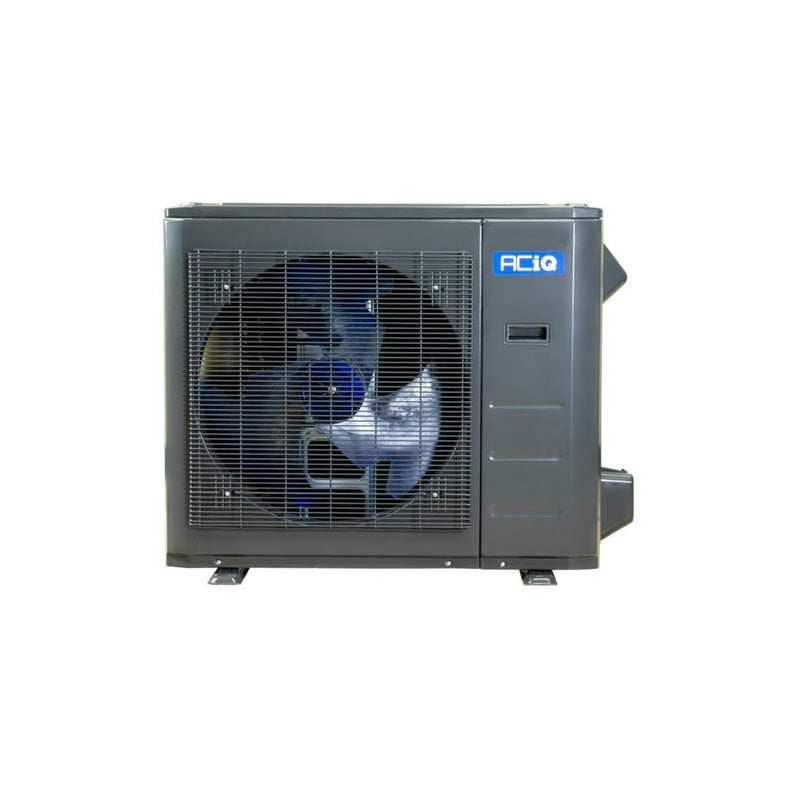

• Condenser SKU: ACIQ-24-EHPD
• Condenser Cooling Capacity: 24,000 BTU
• Condenser Heating Capacity: 26,000 BTU
• Condenser Variable Output (Cooling): 12,000 - 24,000 BTU
• Condenser Variable Output (Heating): 12,000 - 26,000 BTU
• Condenser SEER2: 18.1
• Condenser HSPF2: 9.7
• Condenser EER2: 11.0
• Condenser Refrigerant: R454B
• Condenser Refrigerant Charge: 74.08 oz.
• Condenser Compressor Type: Rotary (variable speed/inverter)
• Condenser Maximum CFM: 1765.7
• Condenser Decibel Level: 60 dBA
• Condenser Electrical: 208/230V, 1 Phase, 60 Hz
• Condenser Dimensions (H x W x D): 26.5" x 35.04" x 13.46"
• Condenser Weight: 109.13 lbs

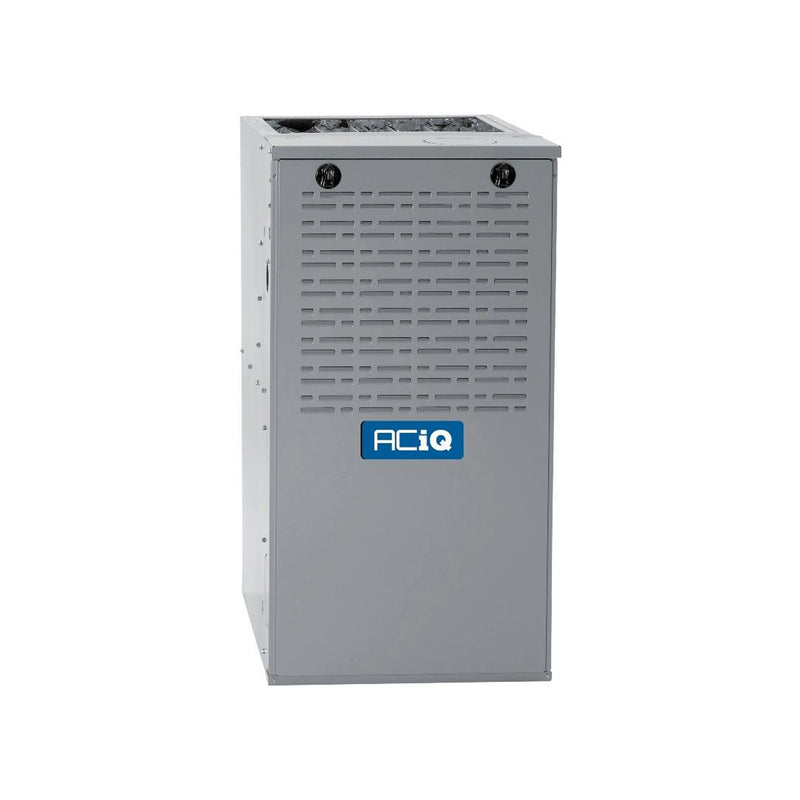

• Furnace SKU: N80MSN0451412A
• Furnace Heating BTU (Input): 44,000 BTU
• Furnace Estimated Output BTU: 35,200 BTU (approx.)
• Furnace AFUE: 80%
• Furnace Configuration: Upflow/Downflow/Horizontal (multi-positional)
• Furnace Width: 14.19"
• Furnace Height: 33.33"
• Furnace Depth: 29"
• Furnace Blower Motor: Multi 18-Speed Constant Torque (MCT) ECM Motor
• Furnace Maximum CFM: 715
• Furnace Ignition Type: Direct Ignition with Silicon Nitride Hot Surface Ignitor
• Furnace Fuel Type: Natural Gas (field-convertible to Propane with optional kit)
• Furnace Exhaust Flue Requirement: Metal
• Furnace Weight: 108 lbs

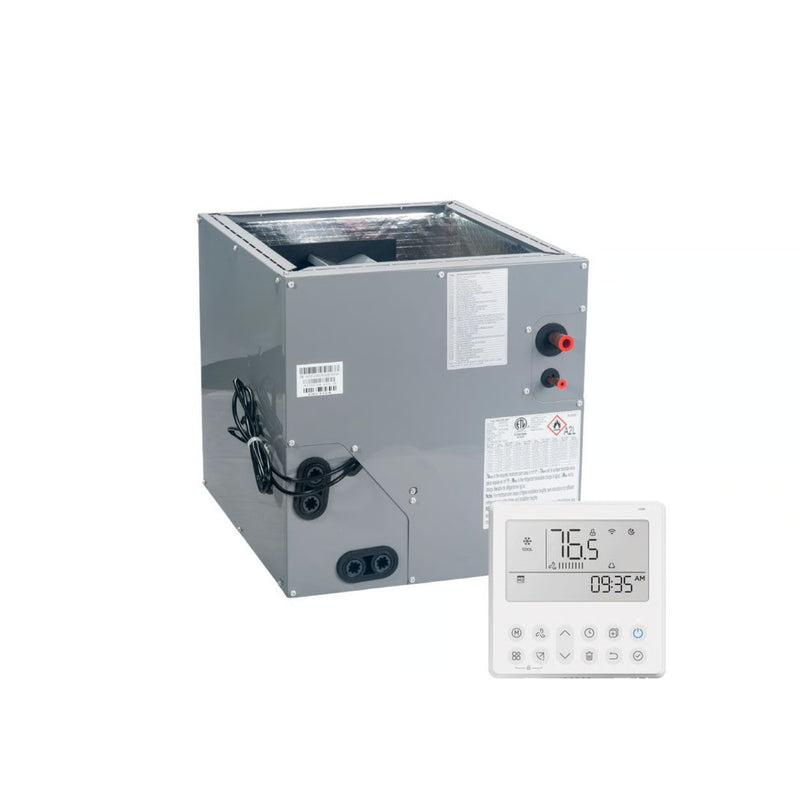

• Coil SKU: ACIQ-24-ACL-14-B
• Coil Tonnage: 2 Ton
• Coil Configuration: Multi-positional A-coil
• Coil Width: 14.5"
• Coil Height: 18"
• Coil Depth: 21"
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 3/4"
• Coil Weight: 50.0 lbs
• Coil Factory Feature: Factory-installed TXV kit
• Operating Temperature Range (Cooling): -13°F to 122°F
• Operating Temperature Range (Heating): -13°F to 75°F
• Notes: System components sold as a matched package; furnace requires metal venting; condenser and coil compatible with matched blower/furnace/condenser configurations
