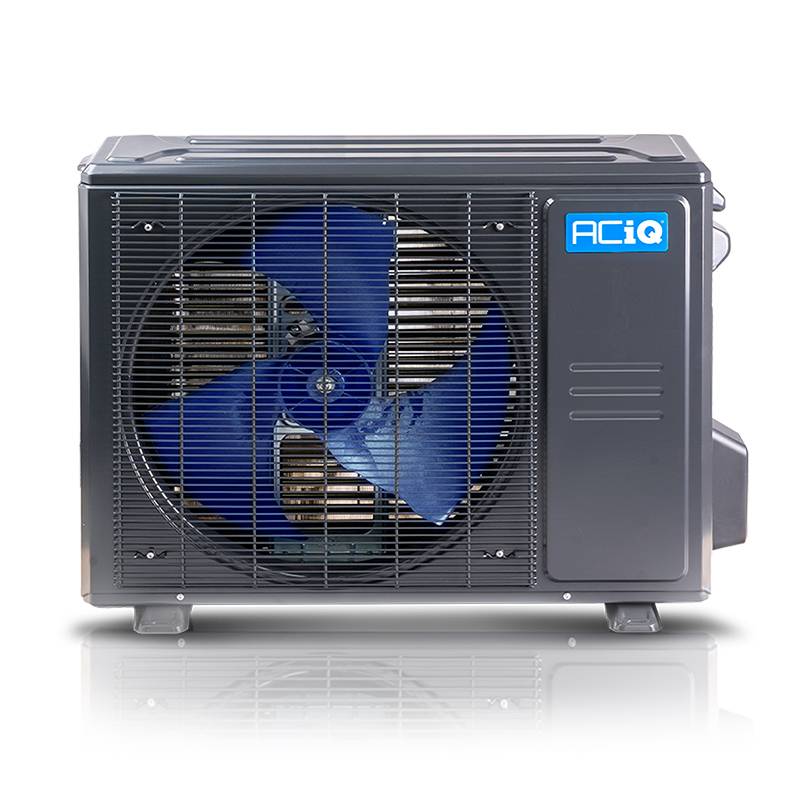

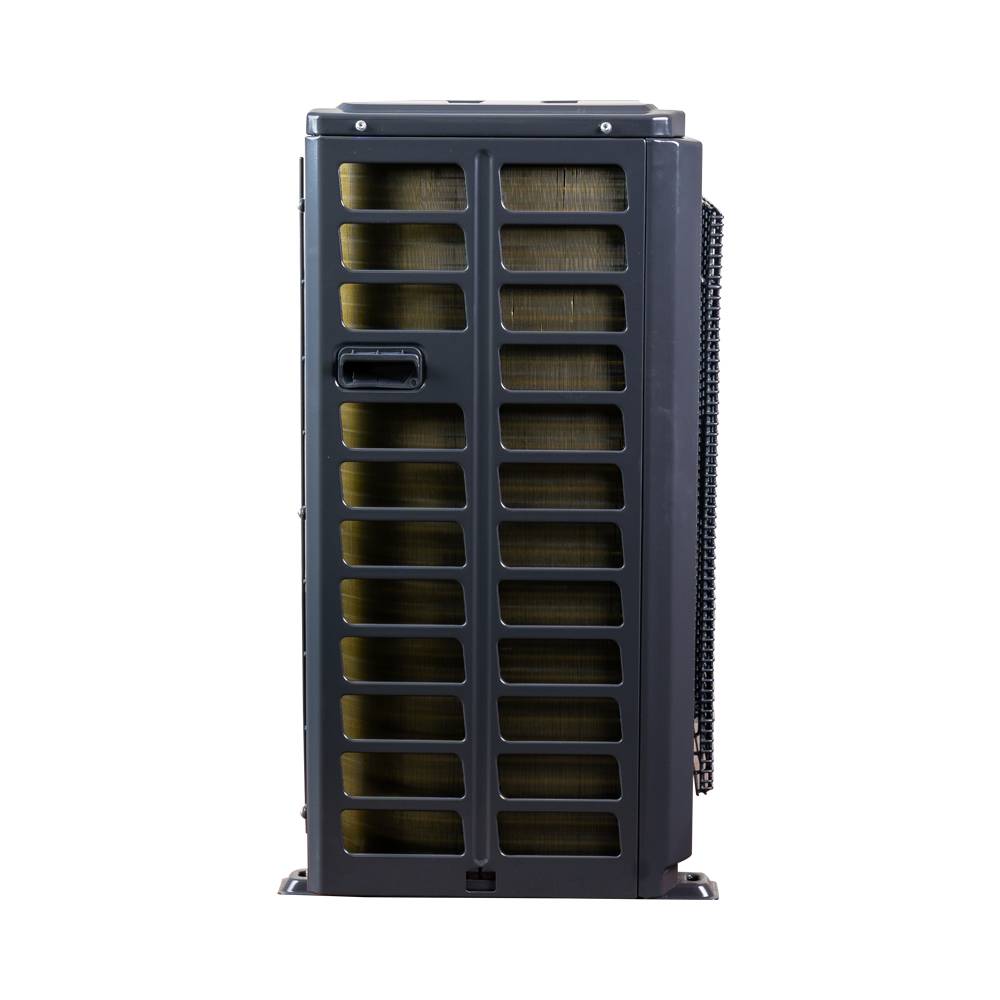

Aciq Aciq-24-AC-B 2 Ton Air Conditioner 24,000 BTU (2 Ton)

Product Description

The Aciq ACIQ-24-AC-B is a 2 Ton high-efficiency air conditioner providing 24,000 BTU cooling capacity and 15.5 SEER efficiency. It uses R454B refrigerant, a rotary compressor, and operates across -13 to 122 F. The unit requires 208-230V, single-phase 60 Hz power, connects with 3/8 in liquid and 3/4 in gas lines, and produces 56 dB(A) sound. Features include Gold Fin coating, leak detection, and multi-application use including AC replacement and hybrid systems.

• 24,000 BTU cooling capacity with 15.5 SEER efficiency and R454B refrigerant
• Rotary compressor, quiet 56 dB(A) operation, and operating range -13 to 122 F
• 208-230V input, 1 phase 60 Hz, 3/8 in liquid line and 3/4 in gas line

Product Highlights

2 Ton residential air conditioner; Gold Fin corrosion protection

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-24-AC-B

Technical Specifications

• Brand: ACIQ
• Model: ACIQ-24-AC-B
• Manufacturer Part Number: ACIQ-24-AC-B
• Tonnage: 2 Ton
• Cooling Capacity: 24,000 BTU
• Efficiency Rating: 15.5 SEER
• Refrigerant: R454B
• Compressor Type: Rotary
• Input Voltage: 208-230V
• Phase: 1Ph
• Frequency: 60 Hz
• Liquid Line Size: 3/8 in
• Gas Line Size: 3/4 in
• Sound Level: 56 dB(A)
• Operating Temperature Range: -13 to 122 F
• Coating: Gold Fin
• Features: Leak detection; Versatile applications including AC replacement and hybrid systems
