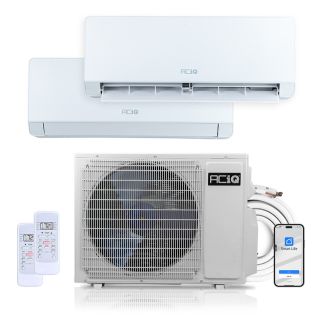

ACIQ ACIQ-18Z-E-M2 18,000 BTU Dual Zone Wall Mount Mini Split Heat Pump System

Product Description

The ACIQ ACIQ-18Z-E-M2 is an 18,000 BTU dual zone wall mount mini split heat pump system. This unit operates on R32 refrigerant and is rated at 22.0 SEER2, making it suitable for energy-efficient cooling and heating. It's designed for applications that require multiple zones, offering both heating and cooling capabilities.

• Includes a fifteen-foot line set for convenient installation.
• Compatible with multiple indoor units to provide heating and cooling across different spaces.
• Low noise levels at 64 dBA for quiet operation.

Product Highlights

This mini split system is perfect for residential or commercial applications that require efficient temperature control across multiple rooms. Its compact size makes it easy to install.

Product Information

Standard Information

• Brand: ACIQ
• MPN: ACIQ-18Z-E-M2

Technical Specifications

• HSPF2: 10.0
• Cooling BTU: 17700 BTU
• Heating BTU: 18000 BTU
• Maximum CFM: 1529
• Decibel Level (dBA): 64
• Refrigerant: R32
• SEER2: 22
• Compressor Type: Rotary
• Liquid Line: 1/4 inch
• Suction Line: 3/8 inch
• Electrical: 208/230V, 60Hz, 1 Ph
• Max Breaker Size: 20A
• Min. Breaker Size: 15A
• BTU/Tonnage: 18,000 BTU/1.5 Ton
• Mini Split Type: Wall Mounted
• Zone Compatibility: Multi Zone
• Ambient Temperature Range: -13F ~ 125F
• Height: 21.93 inches
• Width: 34.65 inches
• Depth: 13.90 inches
• Warranty: 6 Year Compressor & 4 Year Parts with Online Registration
