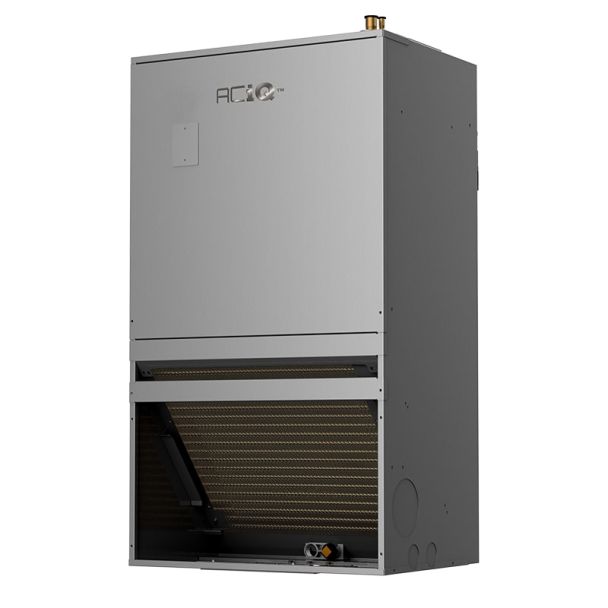

Aciq Aciq-18W-WM Wall mounted air handler 18,000 BTU (1.5 ton) Aciq-18W-WM

Product Description

The Aciq ACIQ-18W-WM wall-mounted air handler is a 1.5 ton (18,000 BTU) indoor unit designed for use with R410A systems. It features a digital electronic expansion valve for precise refrigerant flow, a variable DC blower, and a multi-speed direct drive blower motor. The unit operates on 208-230V single-phase 60 Hz power, delivers up to 617 CFM, includes a wired smart Wi-Fi thermostat, and accepts an optional electric heat strip.

• Digital electronic expansion valve (EEV) for precise refrigerant control
• Multi-speed direct drive blower motor with variable DC blower capability, maximum 617 CFM
• Operates on 208-230V single-phase 60 Hz; compatible with R410A refrigerant; optional electric heat strip

Product Highlights

1.5 ton wall-mounted air handler for R410A with EEV, up to 617 CFM, 208-230V single-phase power, and optional electric heat strip

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-18W-WM

Technical Specifications

• SKU: ACIQ-18W-WM
• Brand: Aciq
• MPN: ACIQ-18W-WM
• Model Name: Wall Mounted Air Handler
• Tonnage: 1.5 Ton
• Cooling Capacity: 18,000 BTU
• Heating Capacity: 19,000 BTU
• Refrigerant: R410A
• Input Voltage: 208-230V
• Phase: Single phase
• Frequency: 60 Hz
• Maximum CFM: 617
• Blower Motor: Multi speed direct drive motor
• Blower Type: Variable DC blower (featured)
• Expansion Valve: Digital electronic expansion valve (EEV)
• Filter Size: 16" x 20" x 1" small chassis filter
• Liquid Line Size: 3/8"
• Suction Line Size: 3/4"
• Electric Heat: Optional electric heat strip
• Mounting Type: Wall or stud mount (vertical installation)
• Configuration: Upflow-only
• Cabinet Material: Fully insulated galvanized-steel cabinet
• Dimensions (H x W x D): 42.91 x 22.83 x 19.49 inches
• Weight: 109.13 lbs
• Included Controls: Wired smart Wi-Fi thermostat (or compatible 24V thermostat)
• Approvals: Manufactured home and mobile home approved
