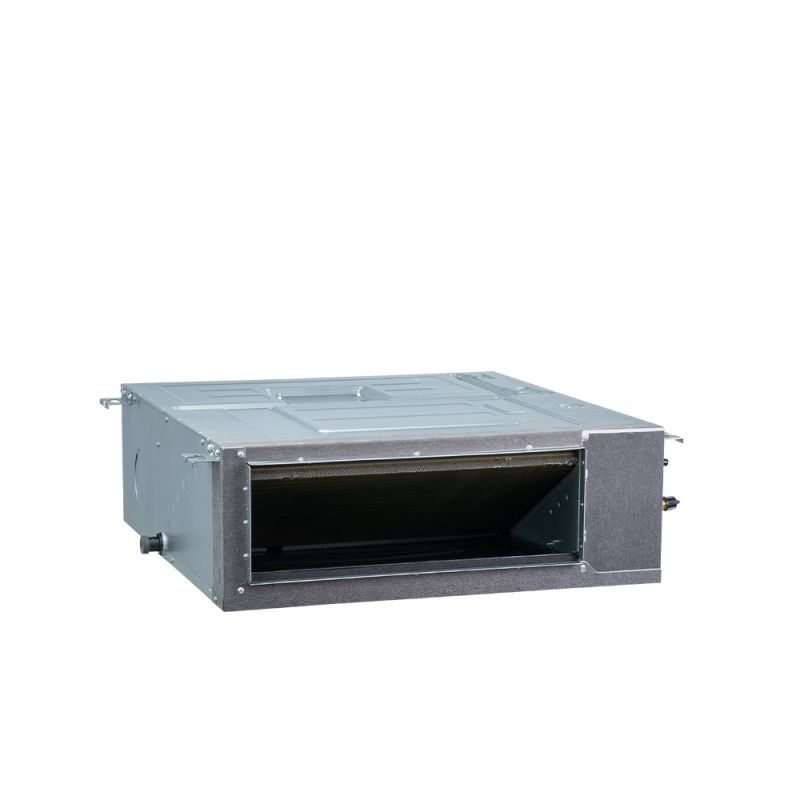

ACIQ ACIQ-18CD-HH-MC 18,000 BTU ACiQ Platinum Single Zone Concealed Duct Mini Split Air Handler - R454B | 230V

Product Description

The ACiQ ACIQ-18CD-HH-MC is an 18,000 BTU Mini Split Air Handler designed for concealed duct installation. This unit operates on R454B refrigerant and works on a voltage of 230V. The concealed duct design allows for flexible installation options, making it suitable for new constructions and additions.

• 18,000 BTU heating and cooling capacity
• Quiet operation with a decibel level as low as 28 dBA
• Compatible with multi-zone applications

Product Highlights

This concealed duct mini split air handler provides flexible placement and easy installation, making it ideal for small bedroom setups or master suites.

Product Information

Standard Information

• Weight: 91.27 lbs
• Brand: ACiQ

Technical Specifications

• Cooling BTU: 18,000 BTU
• Heating BTU: 18,000 BTU
• Maximum CFM: Up to 706.30 CFM
• Decibel Level: As low as 28.0 dBA
• Electric Heat: Heat Pump
• Refrigerant: R454B
• Liquid Line: 1/4 inches
• Suction Line: 1/2 inches
• Electrical: 208/230V, 1 Phase, 60Hz
• Phase: Single Phase
• BTU/Tonnage: 18,000 BTU/1.5 Ton
• Mini Split Type: Concealed Duct
• Zone Compatibility: Multi Zone, Single Zone
• Height: 9.65 inches
• Width: 39.37 inches
• Depth: 29.53 inches
• Warranty: 12 year compressor, 7 year parts with online registration
