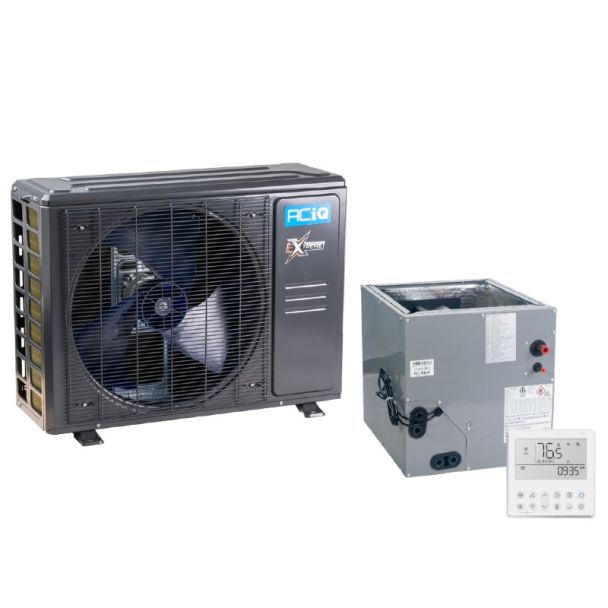

Aciq Aciq-18-HPD / Aciq-24-ACL-B 1.5 Ton Central Heat Pump with 17.5 inches Multi-Positional Cased Coil Replaces Aciq-18-HPB

Product Description

The Aciq ACIQ-18-HPD / ACIQ-24-ACL-B is a 1.5-ton inverter central heat pump package paired with a 17.5-inch multi-positional cased evaporator coil. The variable-speed inverter compressor provides modulating BTU output and extreme-cold heating to -22°F while using R454B refrigerant. The system is rated with SEER2 and HSPF2 efficiencies and is configured for 208/230V single-phase electrical service and single-zone ducted applications.

• Variable-speed inverter compressor with modulating BTU output and extreme-cold heating performance down to -22°F.
• Includes 17.5" multi-positional cased coil with factory-installed TXV; liquid line 3/8" and suction line 3/4".
• Electrical: 208/230V, 1 phase, 60 Hz; max breaker 20 Amps; designed for single-zone ducted installations.

Product Highlights

1.5-ton inverter heat pump package with R454B refrigerant, multi-positional 17.5" coil, and cold-climate operation to -22°F.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-18-HPD / ACIQ-24-ACL-B

Technical Specifications

• Brand: Aciq
• MPN: ACIQ-18-HPD / ACIQ-24-ACL-B
• Package Components: ACIQ-18-HPD condenser (1.5 ton) paired with ACIQ-24-ACL-B 17.5" multi-positional evaporator cased coil
• Condenser SKU: ACIQ-18-HPD
• Coil SKU: ACIQ-24-ACL-B
• Tonnage (Condenser): 1.5 Ton
• Cooling Capacity (BTU): 18,000 BTU
• Heating Capacity (BTU): 19,000 BTU
• SEER2 (Efficiency): 19
• HSPF2: 9.7
• EER2: 12.5
• Refrigerant: R454B
• Condenser Refrigerant Charge: 74.08 oz.
• Compressor Type: Variable-speed inverter compressor
• Condenser Stages: Variable Speed
• Maximum CFM (Condenser): 618
• Sound Level (dBA): 59
• Liquid Line Size: 3/8"
• Suction Line Size: 3/4"
• Electrical Input Voltage: 208/230V
• Phase: Single Phase
• Frequency: 60 Hz
• Max Breaker Size: 20 Amps
• Min Breaker Size: 17 Amps
• Coil Configuration: Multi-Positional (upflow/downflow/horizontal)
• Coil Style: A-Coil
• Coil Height: 18"
• Coil Width: 17.5"
• Coil Depth: 21"
• Coil Weight: 50.00 lbs
• Condenser Weight: 109.13 lbs
• Condenser Dimensions (H x W x D): 26.50" x 35.04" x 13.46"
• Coil Certification: UL Listed
• Factory Installed Components: TXV kit on coil
• Operating Temperature Range (Heating): -22°F - 75°F
• Operating Temperature Range (Cooling): -22°F - 122°F
• Zone Compatibility: Single Zone
• Replaces: ACIQ-18-HPB
