Aciq Aciq-18-HP-E-32 / Aciq-18-AH-E-32B Essentials 1.5 Ton 17 SEER2 Central Heat Pump Split System (Multi-positional)

Product Description

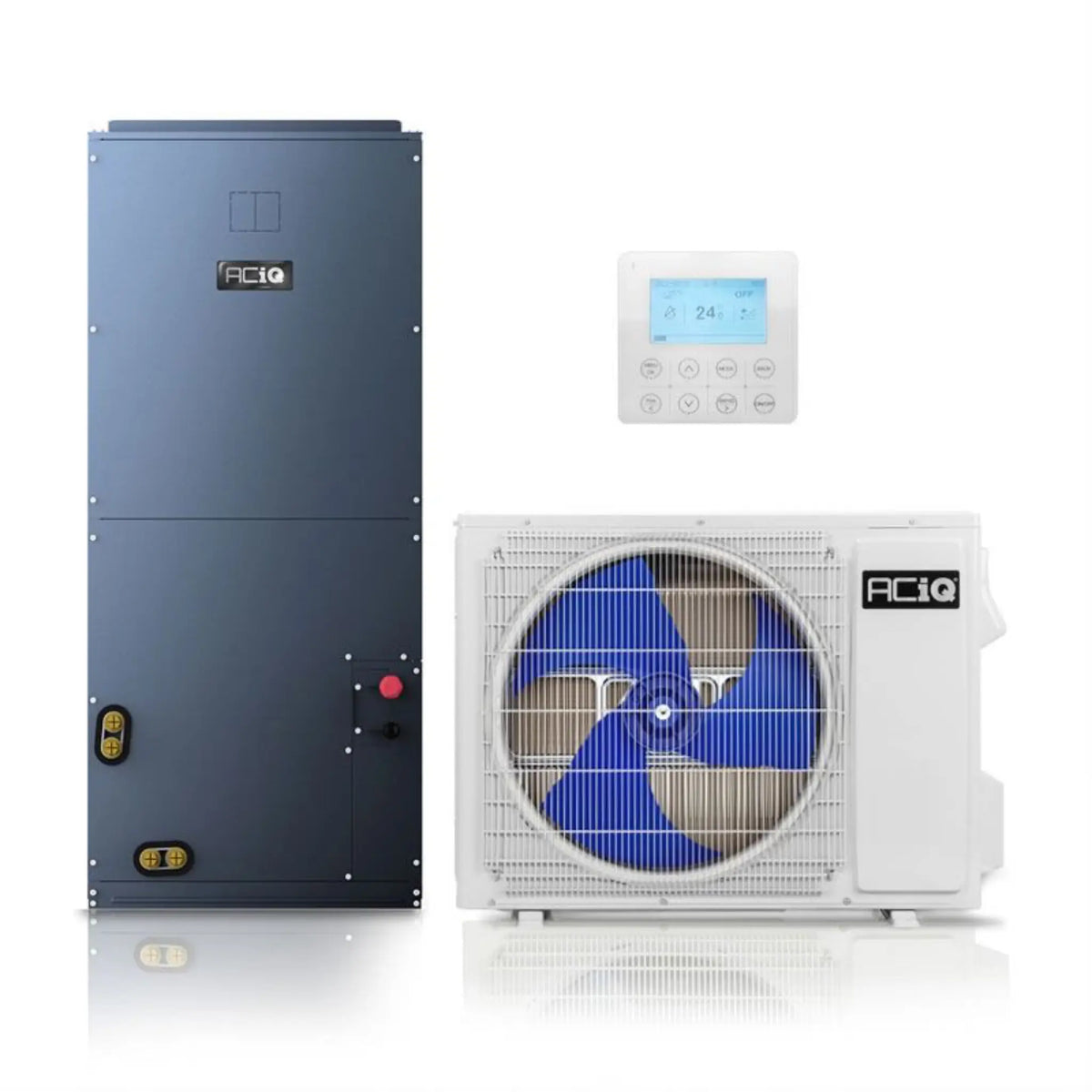

The Aciq ACIQ-18-HP-E-32 / ACIQ-18-AH-E-32B is a 1.5 ton inverter heat pump split system that provides 18,000 BTU cooling and heating capacity with 17 SEER2 efficiency and R32 refrigerant. The system pairs a variable-speed rotary compressor condenser with a multi-positional central air handler, supports 208/230V single-phase electrical service, and is pre-charged with R32 refrigerant for matched residential ducted installations.

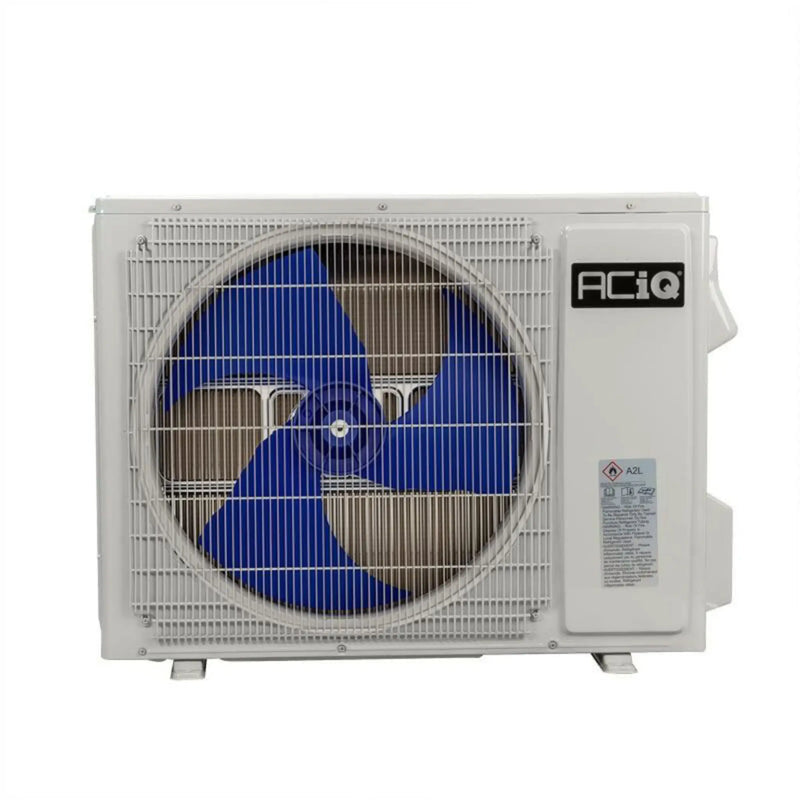

• Inverter-driven variable-speed rotary compressor delivering 18,000 BTU capacity and 17 SEER2 efficiency with R32 refrigerant; condenser refrigerant charge 42.33 oz.

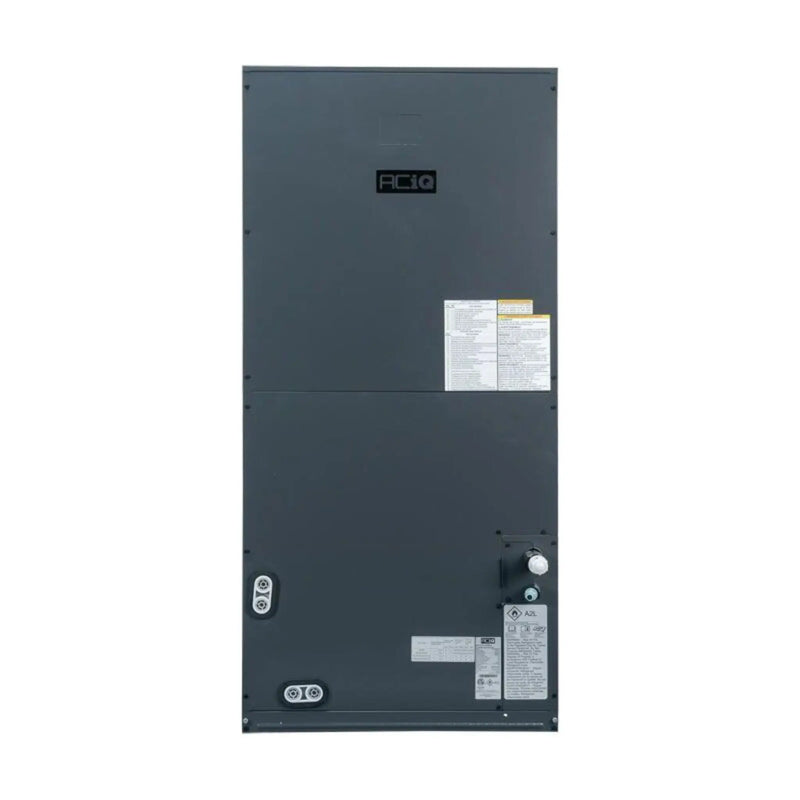

• Multi-positional air handler (upflow, downflow, horizontal) with constant torque blower, maximum 600 CFM, 18" x 20" filter, accepts optional 5 kW or 10 kW electric heat kits.
• Electrical: 208/230V 1 Phase 60 Hz; condenser breaker range 17–25 Amps; suction/liquid line sizes 5/8" and 3/8"; operating ambient ranges for heating 5°F–75°F and cooling 5°F–125°F.

Product Highlights

Matched 1.5 ton condenser and multi-positional air handler split system, 17 SEER2 / HSPF2 8.6 performance, inverter variable-speed compressor, pre-charged with R32 refrigerant.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-18-HP-E-32 / ACIQ-18-AH-E-32B

Technical Specifications

• Brand: Aciq
• MPN: ACIQ-18-HP-E-32 / ACIQ-18-AH-E-32B
• Model (Condenser): ACIQ-18-HP-E-32
• Model (Air Handler): ACIQ-18-AH-E-32B
• Product type: Heat pump split system
• Tonnage: 1.5 Ton
• Cooling Capacity: 18,000 BTU
• Heating Capacity: 18,000 BTU
• SEER2: 17
• EER2: 11.25
• HSPF2: 8.6
• Refrigerant: R32
• Refrigerant Charge (Condenser): 42.33 oz.
• Compressor Type: Rotary variable-speed (inverter-driven)
• Input Voltage: 208/230V 1 Phase 60 Hz
• Phase: Single Phase
• Max Breaker Size (Condenser): 25 Amps
• Min Breaker Size (Condenser): 17 Amps
• Liquid Valve Size: 3/8"
• Suction Valve Size: 5/8"
• Maximum CFM (Air Handler): 600
• Maximum CFM (Condenser listed): 2059.0
• Noise Level (Condenser): 56 Decibels
• Noise Level (Air Handler): 42 Decibels
• Operating Ambient Temperature (Heating): 5°F - 75°F
• Operating Ambient Temperature (Cooling): 5°F - 125°F
• Air Handler Configuration: Multi-positional (upflow, downflow, horizontal-left)
• Filter Size (Air Handler): 18" x 20"
• Horsepower (Air Handler): 1/3 HP
• Connection: Flare to braze
• Condenser Dimensions (H x W x D): 27-9/16" x 38-9/16" x 15-1/4"
• Air Handler Dimensions (H x W x D): 45" x 17-1/2" x 21"
• Condenser Weight: 129 lbs
• Air Handler Weight: 102.5 lbs
