Aciq Aciq-18-EHPD Hybrid 1.5 Ton 16 SEER2 40,000 BTU System (Package) N96MSN0401410A

Product Description

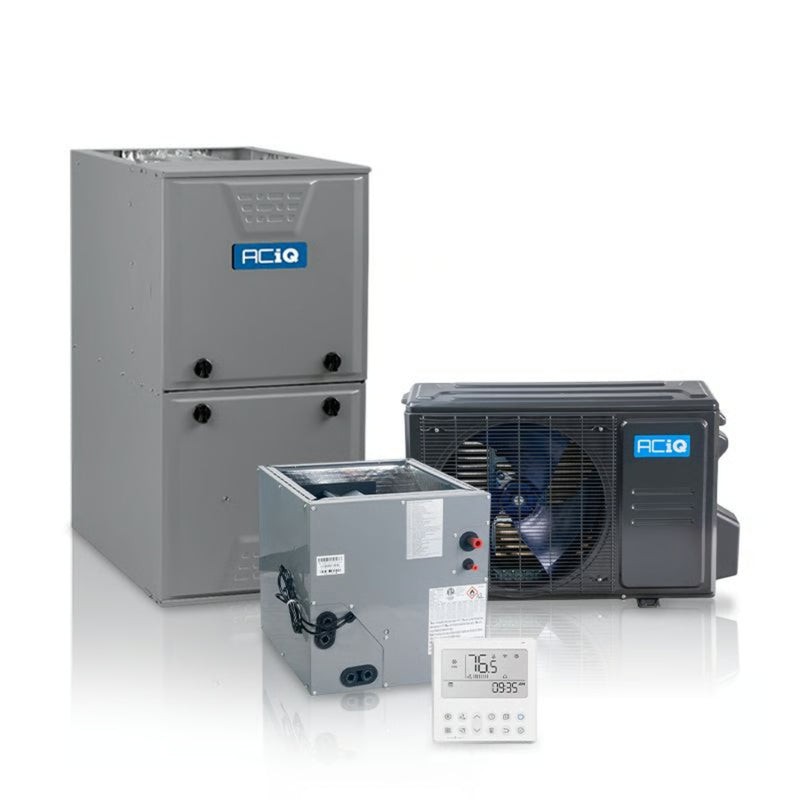

The AciQ ACIQ-18-EHPD / ACIQ-24-ACL-14-B / N96MSN0401410A is a hybrid HVAC package that combines a 1.5 ton inverter heat pump condenser, a 40,000 BTU 96% AFUE multi-positional gas furnace, and a 2 ton multi-positional evaporator coil. The inverter condenser uses R454B refrigerant and variable inverter twin rotary compression for adaptive cooling and heating, while the furnace features an ECM blower and field-convertible fuel option.

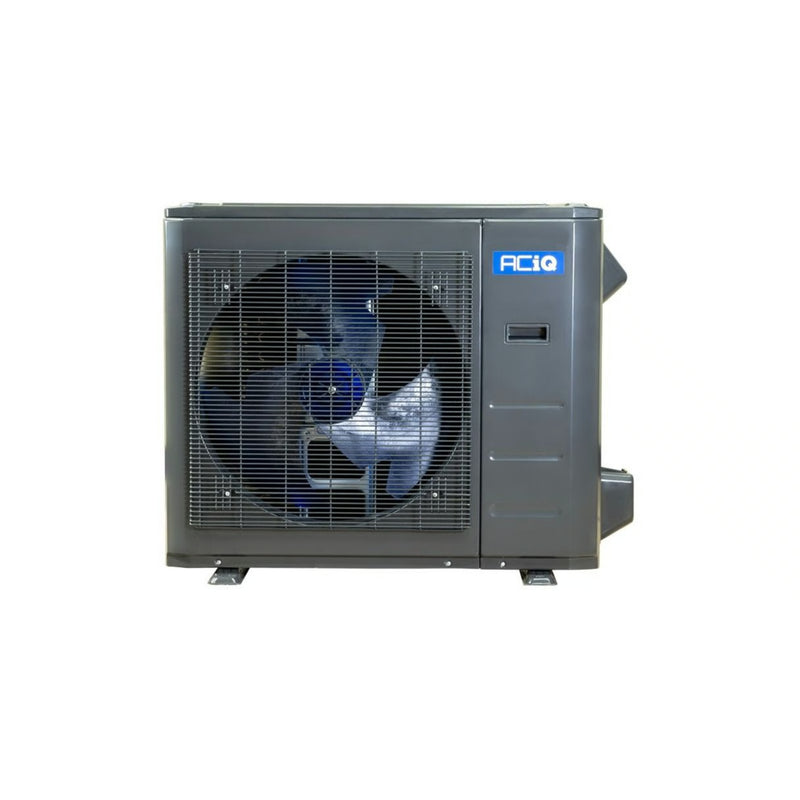

• Inverter heat pump condenser (ACIQ-18-EHPD) with R454B refrigerant, rated 18.8 SEER2 and 9.1 HSPF2

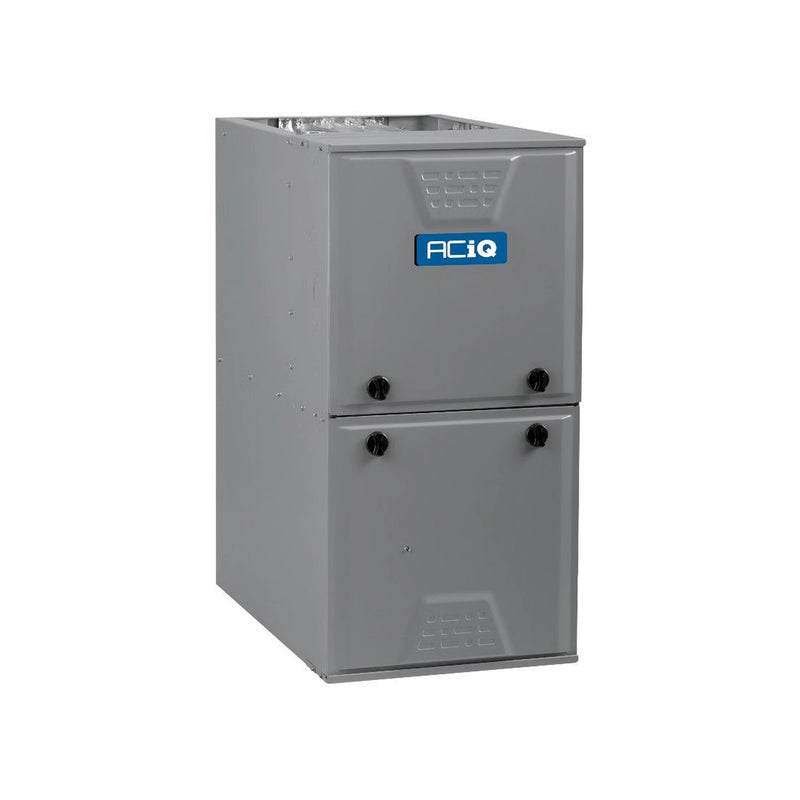

• 40,000 BTU single-stage multi-positional gas furnace (N96MSN0401410A) with 96% AFUE and ECM blower; field-convertible to propane

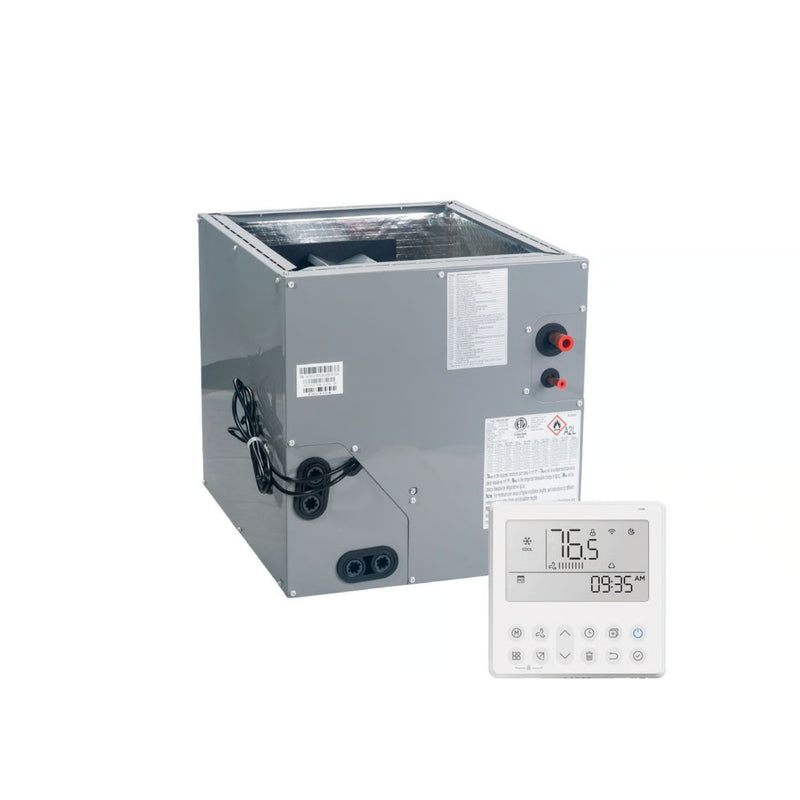

• 2 ton multi-positional A-coil (ACIQ-24-ACL-14-B) with factory-installed TXV and 3/8" liquid / 3/4" suction line sizes

Product Highlights

Complete residential hybrid system: inverter heat pump, multi-positional gas furnace, and A-coil; R454B refrigerant; manufacturer warranties on compressor, furnace heat exchanger, and coil.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-18-EHPD / ACIQ-24-ACL-14-B / N96MSN0401410A

Technical Specifications

• Brand: AciQ
• Package Models: ACIQ-18-EHPD / ACIQ-24-ACL-14-B / N96MSN0401410A
• Condenser MPN: ACIQ-18-EHPD
• Condenser Tonnage: 1.5 Ton
• Condenser Cooling Capacity: 18,000 BTU
• Condenser Heating Capacity: 18,000 BTU
• Condenser SEER2: 18.8
• Condenser HSPF2: 9.1
• Condenser Refrigerant: R454B
• Condenser Compressor Type: Variable inverter twin rotary
• Condenser Electrical: 208/230V, 1 Phase, 60 Hz
• Condenser Dimensions (H x W x D): 21.81" x 31.69" x 12.99"
• Furnace MPN: N96MSN0401410A
• Furnace Heating Input: 40,000 BTU
• Furnace Heating Output: 38,400 BTU
• Furnace AFUE: 96%
• Furnace Configuration: Upflow/Downflow/Horizontal (multi-positional)
• Furnace Blower Motor: ECM
• Furnace Burner Stages: Single
• Furnace Fuel Type: Natural Gas (field convertible to Propane)
• Furnace Dimensions (H x W x D): 35" x 14" x 29.5"
• Furnace Weight (lbs): 120.00
• Furnace CFM (Max): 950
• Coil MPN: ACIQ-24-ACL-14-B
• Coil Tonnage: 2 Ton
• Coil Configuration: Multi-Positional (A-coil)
• Coil Refrigerant: R454B
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 3/4"
• Coil Dimensions (H x W x D): 18" x 14.5" x 21"
• Coil Weight (lbs): 50.00
• AHRI / Certification: AHRI certificates and submittals available
• Energy Star: Furnace: Yes
• Max CFM (Condenser): 618
• Decibel Level (dBA): 55
• Max Breaker Size: 20 Amps
• Min Breaker Size: 16 Amps
• Min/Max Outdoor Temp for Heating: -13 F - 75 F
• Min/Max Outdoor Temp for Cooling: -13 F - 122 F
• Condenser Refrigerant Charge Length: 25'
