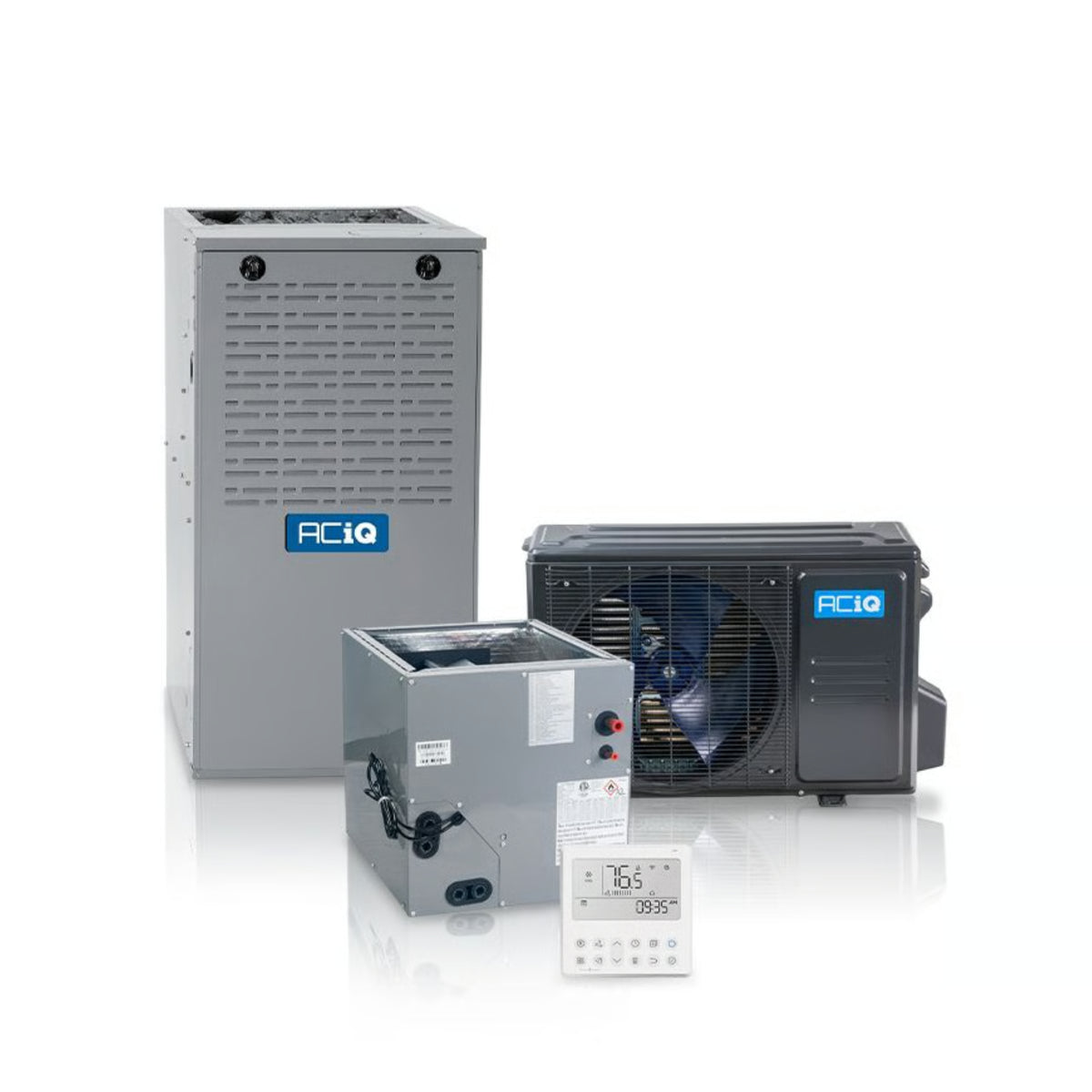

Aciq Aciq-18-EHPD / Aciq-24-ACL-B / N80MSN0701712A Hybrid 1.5 Ton Heat Pump and Gas Furnace System 18.8 SEER2 80% AFUE (Package) Replaces N80ESN0701712A

Product Description

Aciq ACIQ-18-EHPD / ACIQ-24-ACL-B / N80MSN0701712A is a hybrid HVAC system package combining a 1.5 ton inverter heat pump condenser, a 66,000 BTU 80% AFUE single-stage gas furnace, and a 2 ton multi-positional evaporator A-coil. The inverter condenser uses R454B refrigerant with variable output and 18.8 SEER2 / HSPF2 9.1 ratings, while the furnace features a multi-speed ECM blower and silicon nitride hot surface ignitor.

• Inverter-driven variable-speed condenser (ACIQ-18-EHPD) with R454B refrigerant, 18.8 SEER2 and HSPF2 9.1, variable output ~12,000–18,000 BTU.
• Single-stage 66,000 BTU input gas furnace (N80MSN0701712A) with 80% AFUE, multi-positional installation, multi-speed ECM blower, and direct ignition.
• Multi-positional 2 ton evaporator A-coil (ACIQ-24-ACL-B) with factory-installed TXV; system components pre-charged/compatible for R454B operation.

Product Highlights

Matched hybrid package with inverter heat pump, multi-positional 66k BTU gas furnace, and A-coil; pre-charged/compatible for R454B refrigerant.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-18-EHPD / ACIQ-24-ACL-B / N80MSN0701712A

Technical Specifications

• Brand: Aciq
• Package MPN: ACIQ-18-EHPD / ACIQ-24-ACL-B / N80MSN0701712A

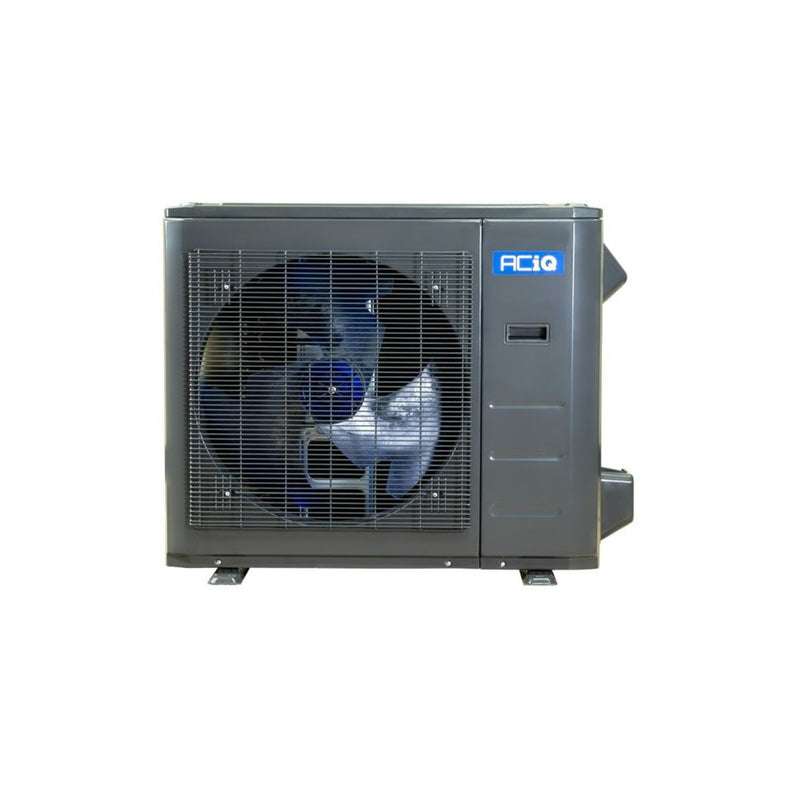

• Condenser MPN: ACIQ-18-EHPD
• Condenser Tonnage: 1.5 Ton
• Condenser SEER2: 18.8
• Condenser HSPF2: 9.1
• Condenser Cooling Capacity: 18,000 BTU
• Condenser Heating Capacity: 18,000 BTU
• Condenser Refrigerant: R454B
• Condenser Refrigerant Charge: 51.15 oz
• Condenser Compressor Type: Variable inverter twin rotary
• Condenser Electrical: 208/230V, 1 phase, 60 Hz
• Condenser Dimensions (H x W x D): 21.81 in x 31.69 in x 12.99 in
• Condenser Weight: 83.77 lb
• Condenser Max Breaker Size: 20 Amps
• Condenser Min Breaker Size: 16 Amps
• Condenser Max CFM: 618
• Condenser Sound Level: 55 dBA

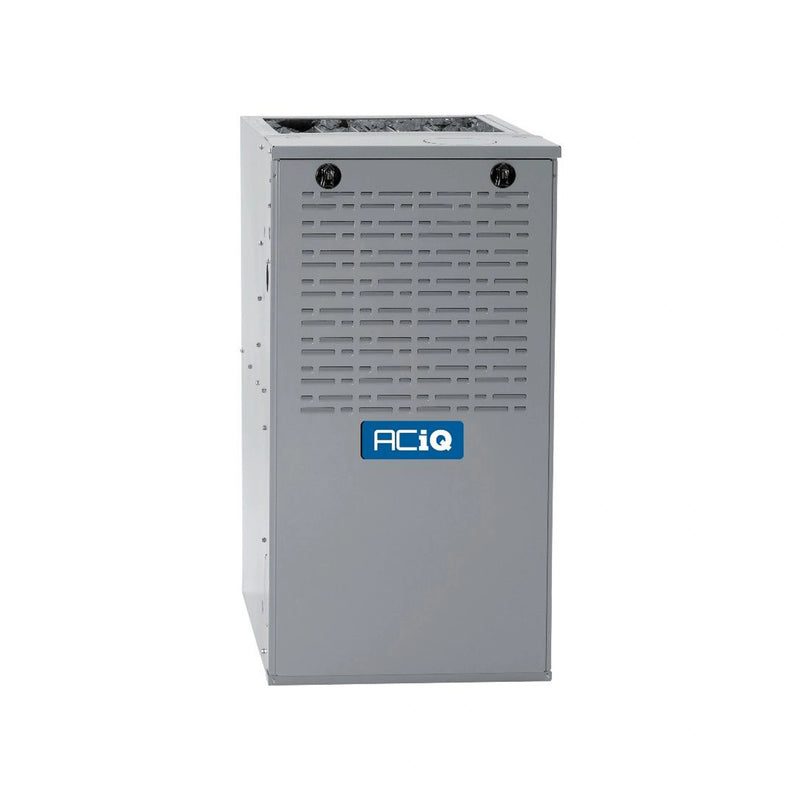

• Furnace MPN: N80MSN0701712A
• Furnace Input BTU: 66,000 BTU
• Furnace Output BTU: 52,800 BTU (approx.)
• Furnace AFUE: 80%
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Dimensions (H x W x D): 33.33 in x 17.5 in x 29 in
• Furnace Weight: 120 lb
• Furnace Blower Motor: Multi-speed ECM
• Furnace Ignition: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural gas (field-convertible to propane with optional kit)
• Furnace Electrical: 115V, 1 phase, 60 Hz
• Furnace Max Breaker Size: 15 Amps
• Furnace Required Venting: Metal flue venting
• Furnace AHRI Certificate Number: 213146136

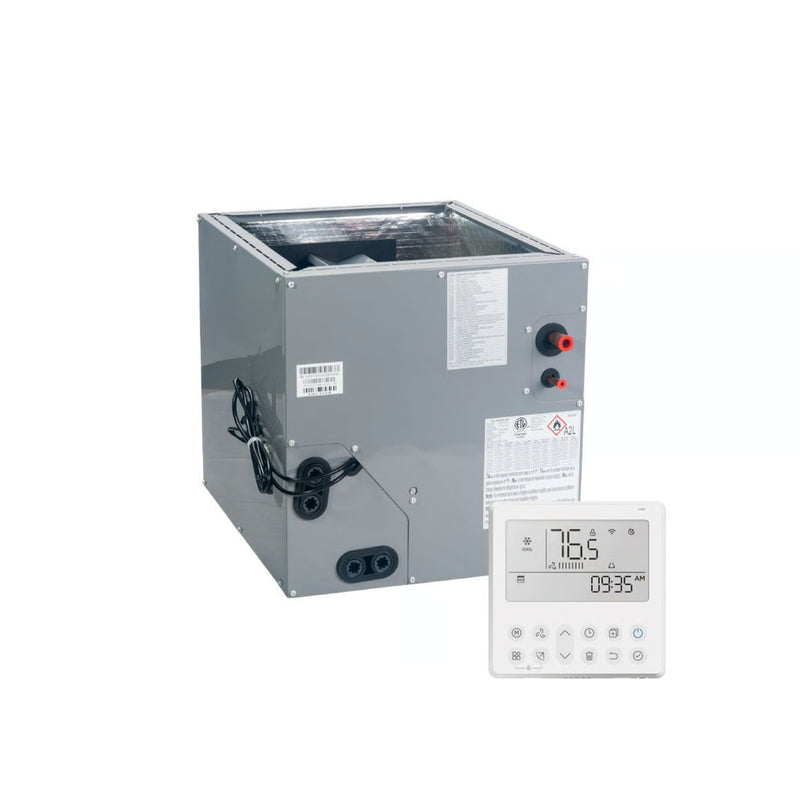

• Coil MPN: ACIQ-24-ACL-B
• Coil Tonnage: 2 Ton
• Coil Configuration: Multi-positional (A-coil)
• Coil Dimensions (H x W x D): 18 in x 17.5 in x 21 in
• Coil Features: Factory-installed TXV kit
• Coil Refrigerant: R454B
• Coil Liquid Line Size: 3/8 in
• Coil Suction Line Size: 3/4 in
• Coil Certification: UL listed
