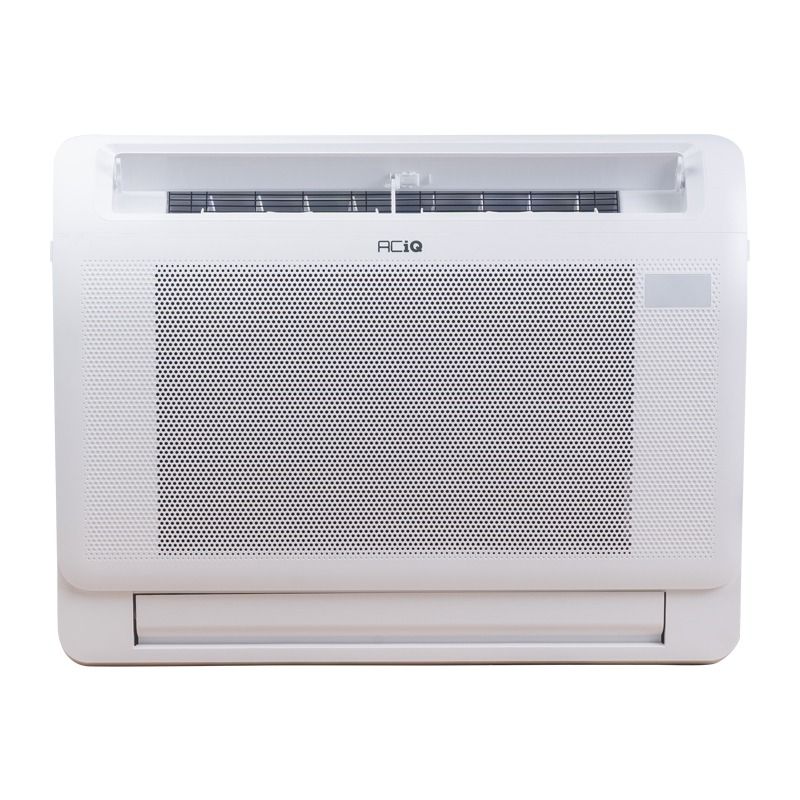

ACIQ ACIQ-12FM-HH-MD 12,000 BTU ACiQ Platinum Single Zone Floor Mount Mini Split Air Handler - R454B | 230V

Product Description

The ACIQ ACIQ-12FM-HH-MD is a 12,000 BTU floor mount mini split air handler designed for effective heating and cooling. This unit is ideal for places where wall space is limited, such as sun porches or attic rooms. The floor-mounted design allows for easy installation and optimal air delivery.

• 12,000 BTU heating and cooling capacity.
• Remote control thermostat included for convenience.
• Quiet operation with a decibel level as low as twenty-four dBA.

Product Highlights

This air handler is optimized for heating and cooling. It takes in return air at the top and delivers it at the bottom, eliminating heat stratification. In cooling mode, airflow direction is reversed for effective air mixing.

Product Information

Standard Information

• Brand: ACIQ
• Model: ACIQ-12FM-HH-MD

Technical Specifications

• Cooling BTU: 12,000 BTU
• Heating BTU: 12,000 BTU
• Maximum CFM: Up to 441.4 CFM
• Decibel Level (dBA): As low as 24.00
• Electric Heat: Heat Pump
• Energy Star: Yes
• Refrigerant: R454B
• Liquid Line: 1/4 inches
• Suction Line: 3/8 inches
• Electrical: 208/230V, 1 Phase, 60Hz
• Phase: Single Phase
• Warranty: 12 year compressor, 7 year parts with online registration
