ACIQ ACIQ-12CD-HH-MC 12,000 BTU ACiQ Platinum Single Zone Concealed Duct Mini Split Air Handler - R454B | 230V

Product Description

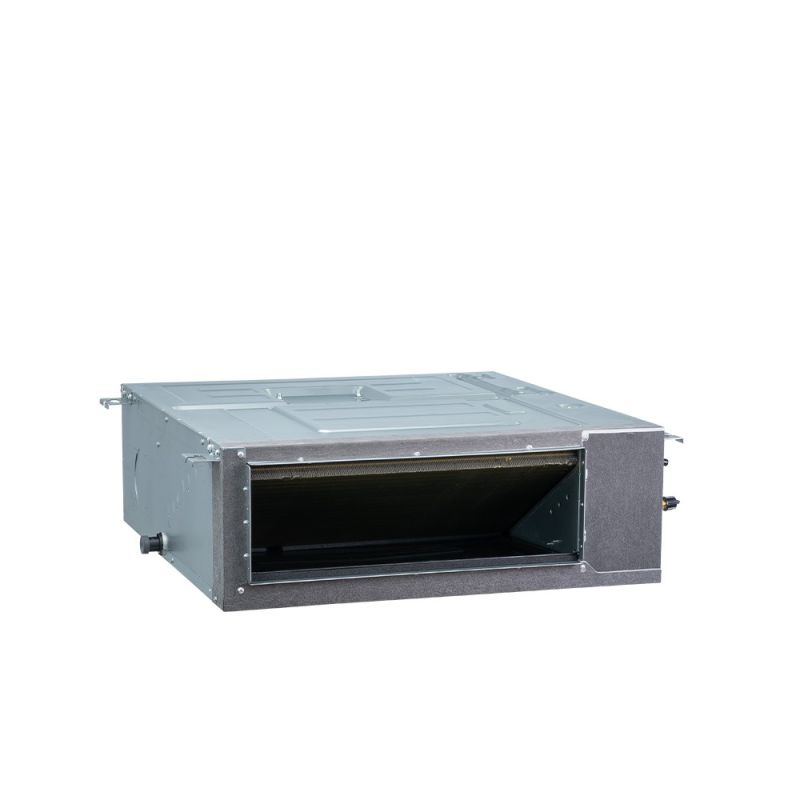

The ACIQ ACIQ-12CD-HH-MC is a 12,000 BTU platinum concealed duct mini split air handler. This unit is designed for discreet installation and allows effective heating and cooling without visible air handlers. It can be placed in various locations such as above ceilings or behind soffits, providing flexibility in air distribution.

• 12,000 BTU capacity
• Compatible with up to four duct runs
• Sleek design for unobtrusive installation

Product Highlights

This air handler features a straightforward return air system bringing air in from the rear and pushing it out front, thanks to a quiet squirrel cage fan. The unit supports easy customization with ducting options and comes with a wall-mounted thermostat.

Product Information

Standard Information

• Brand: ACIQ
• Model Number: ACIQ-12CD-HH-MC

Technical Specifications

• Cooling BTU: 12,000 BTU
• Heating BTU: 12,000 BTU
• Maximum CFM: Up to 419.10 CFM
• Decibel Level: As low as 26.0 dBA
• Refrigerant: R454B
• Liquid Line: 1/4 inch
• Suction Line: 3/8 inch
• Electrical Input: 208/230V, 1 Phase, 60Hz
• Warranty: 12 year compressor, 7 year parts upon online registration
