Product Description

The Aciq ACIQ-12-EHPD is a 1 ton inverter central heat pump system that delivers variable capacity for ducted HVAC applications. It provides rated cooling at 12,000 BTU and heating capability to 13,000 BTU, with variable output from 12,000 to 24,000 BTU and a 21 SEER2 efficiency. The system uses R454B refrigerant, operates on 208-230V single-phase power, and includes a Gold Fin condenser coil and smart soft-start functionality.

• Inverter heat pump with variable output 12,000–24,000 BTU and smart soft-start to reduce short cycling
• Rated cooling 12,000 BTU, heating 13,000 BTU, 21 SEER2 efficiency, quiet operation at 34 dB(A)
• Multi-positional indoor airflow, communicating interface (24V thermostat), R454B refrigerant, 208-230V/1Ph/60Hz

Product Highlights

1 ton inverter heat pump; 12,000 BTU cooling (variable to 24,000); 21 SEER2; R454B refrigerant.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-12-EHPD

Technical Specifications

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-12-EHPD
• Model: ACIQ 12 EHPD 12K 60K
• Tonnage: 1 Ton
• Cooling Capacity: 12,000 BTU
• Heating Capacity: 13,000 BTU
• Variable Output: 12,000 to 24,000 BTU
• Efficiency Rating: 21 SEER2
• Refrigerant: R454B
• Sound Level: 34 dB(A)
• Input Voltage: 208-230V / 1Ph / 60Hz
• Outdoor Operating Temperature Range: -13 to 122 °F
• Efficient Cooling Range: 5 °F to 122 °F
• Efficient Heating Range: 5 °F to 75 °F
• Airflow Direction / Mounting: Multi-positional; Upflow, downflow, horizontal left or right
• CFM (Turbo/High/Med/Low): 618.03 / 576.83 / 529.74 / 488.54
• Communicating Interface: 24V thermostat

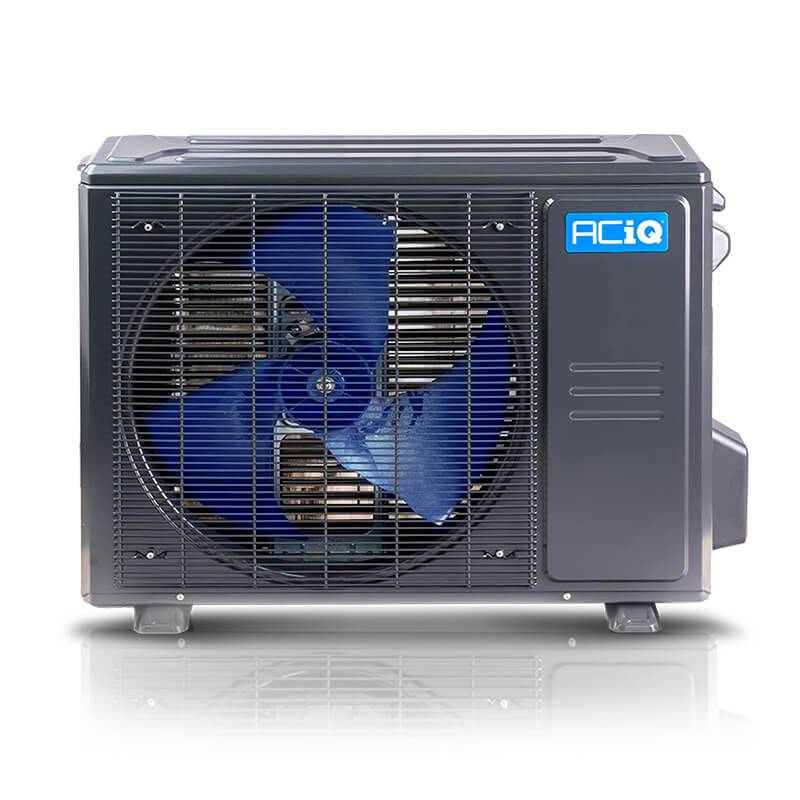

• Outdoor Unit Dimensions (WxDxH): 31.69 x 12.99 x 21.81 inches

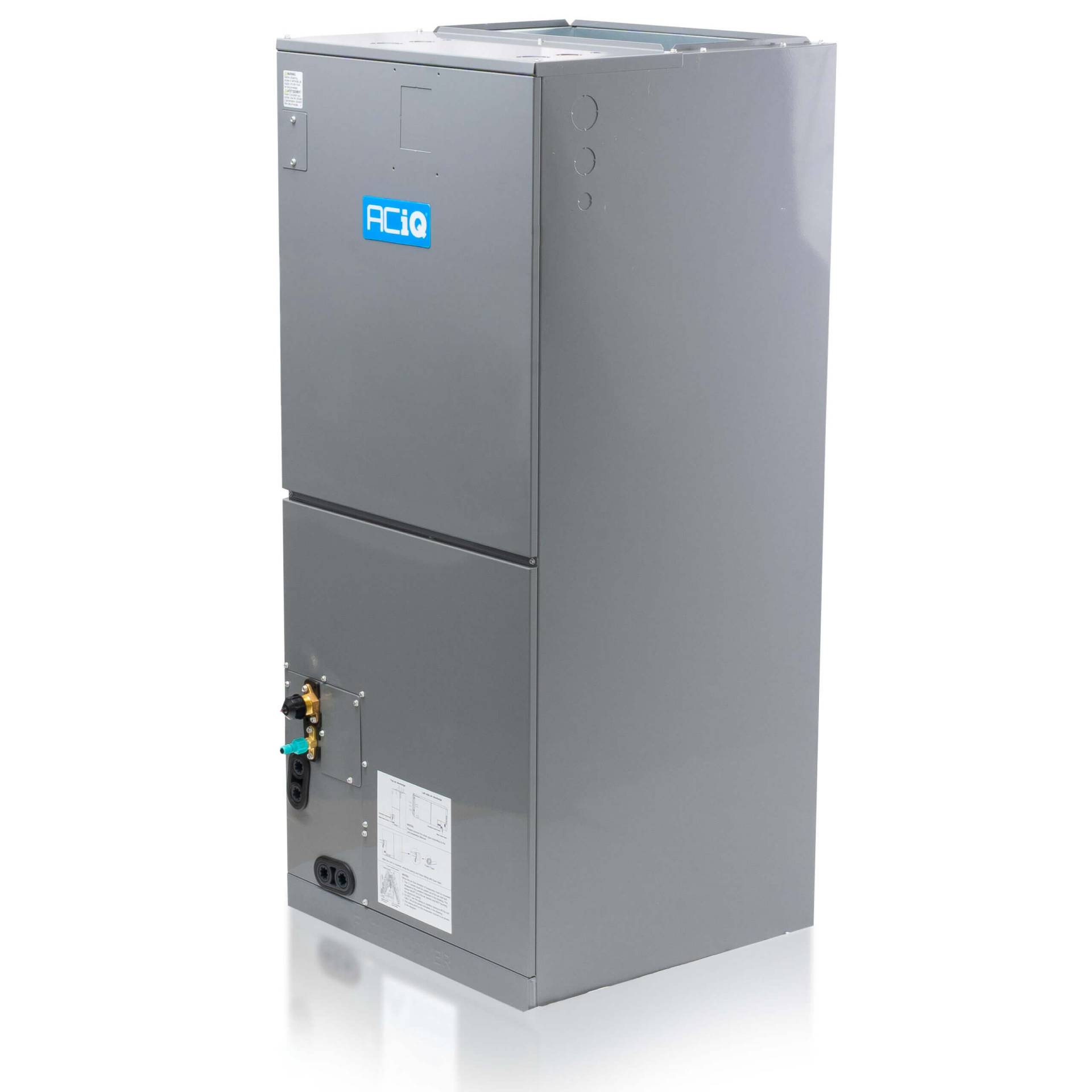

• Indoor Unit Dimensions (WxDxH): 21.02 x 17.52 x 45.00 inches
• Condenser Coil Coating: Gold Fin
• Approvals: Manufactured and Mobile Home approved
