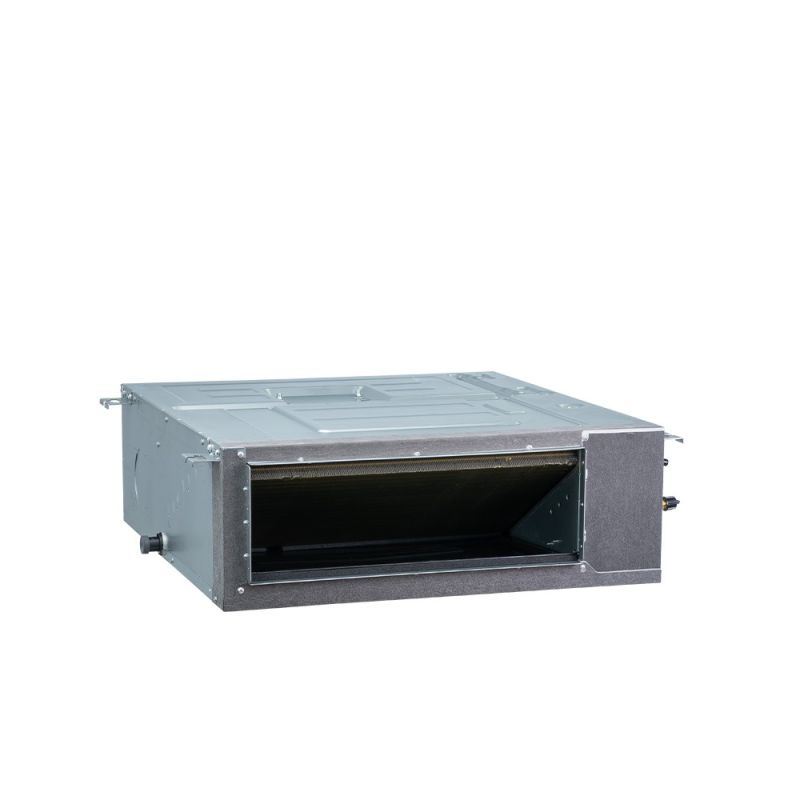

ACIQ ACIQ-09CD-HH-MC 9,000 BTU Concealed Duct Mini Split Air Handler - R454B | 230V

Product Description

The ACiQ ACIQ-09CD-HH-MC is a concealed duct mini split air handler designed for versatile installations. This unit operates at 9,000 BTUs for both heating and cooling, ideal for small rooms in various climates. Its compact design allows it to fit above ceilings, below floors, or in concealed spaces, providing a clean look without visible air handlers.

• Operates quietly with almost-silent fan operation.
• Compatible with up to four flex duct runs for customized air distribution.
• Includes wall-mounted thermostat and supports multiple installation setups.

Product Highlights

This concealed duct unit is suitable for new construction or additions, with a simple setup that integrates easily with existing HVAC systems.

Product Information

Standard Information

• Brand: ACiQ
• Weight: 73.85 lbs

Technical Specifications

• Cooling BTU: 9,000 BTU
• Heating BTU: 9,000 BTU
• Maximum CFM: Up to 344.30 CFM
• Decibel Level: As low as 26.0 dBA
• Electric Heat: Heat Pump
• Refrigerant: R454B
• Liquid Line: 1/4 inch
• Suction Line: 3/8 inch
• Electrical: 208-230V, 1 Phase, 60Hz
• Phase: Single Phase
• Coverage: Multi Zone, Single Zone
• Dimensions (H x W x D): 9.65 inches x 27.56 inches x 29.53 inches
• Warranty: 12-year compressor, 7-year parts with registration
