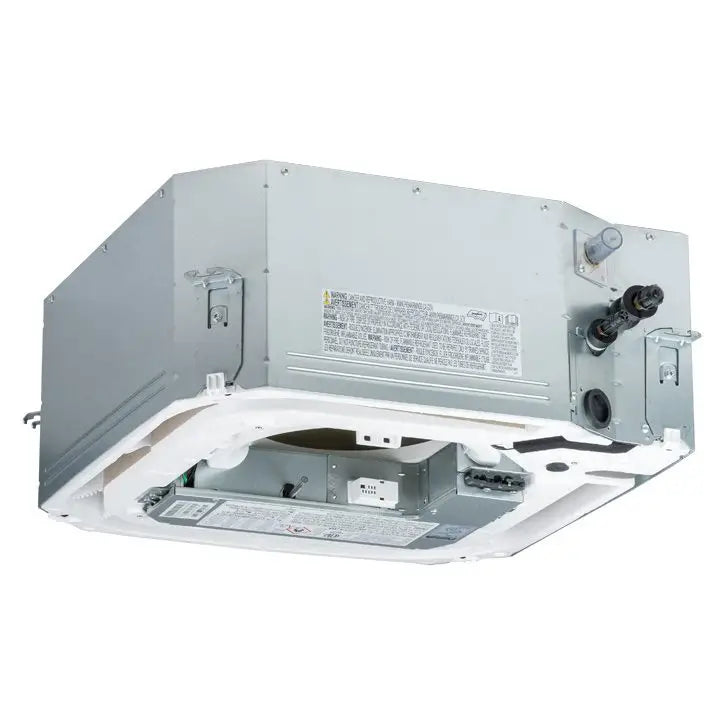

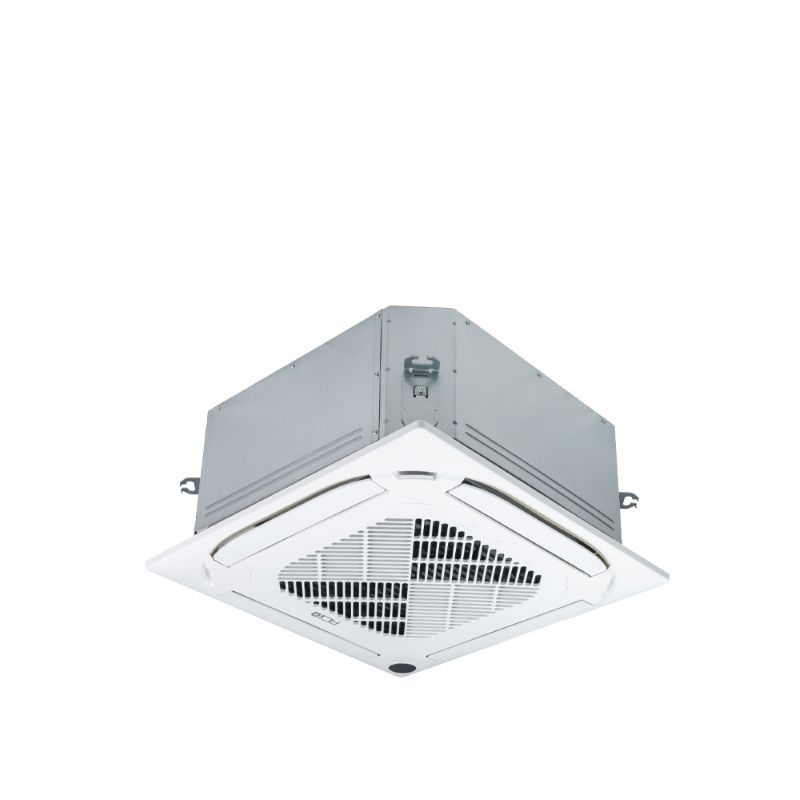

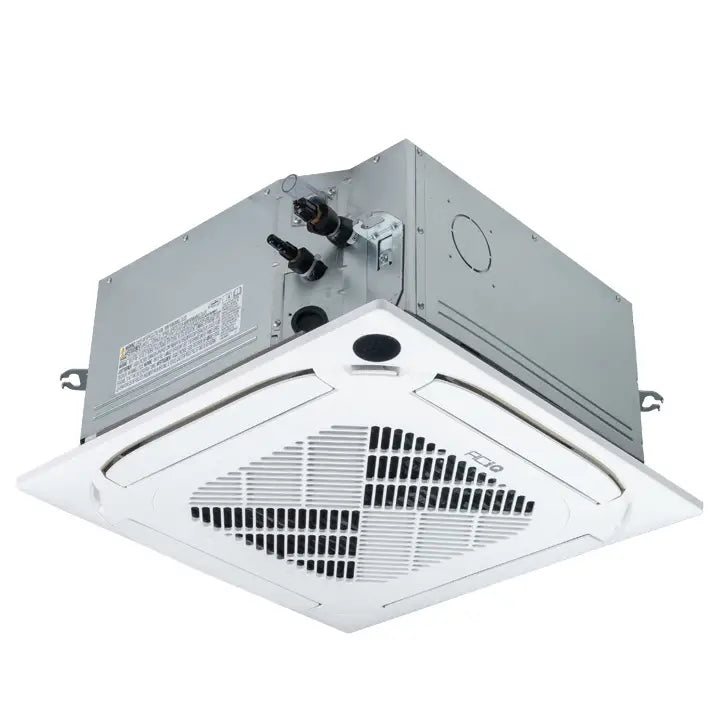

Aciq Aciq-09CC-HH-MC 9,000 BTU Platinum Single Zone Ceiling Cassette Mini Split Air Handler - R454B 230V

Product Description

The ACIQ ACIQ-09CC-HH-MC is a 9,000 BTU platinum single zone ceiling cassette mini split air handler that uses R454B refrigerant and operates at 230V. Designed for a more hidden appearance and centralized air distribution, this ceiling cassette air handler provides high-efficiency heating and cooling. It comes with a handheld remote control and features a decorative grille for an understated look.

• Provides 9,000 BTU of heating and cooling.
• Features 4-way air supply for consistent room coverage.
• Includes a built-in condensate pump with a 14" lift.

Product Highlights

This ceiling cassette mini split air handler offers discreet installation, efficient climate control, and user-friendly operation with included remote and optional WiFi capabilities.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-09CC-HH-MC

Technical Specifications

• SKU: ACIQ-09CC-HH-MC
• Brand: ACiQ
• Controller: Wireless Included
• Product Features: WiFi
• Cooling BTU: 9,000 BTU
• Heating BTU: 9,000 BTU
• Maximum CFM: Up to 353.20 CFM
• Decibel Level: As low as 24.0 Decibels
• Electric Heat: Heat Pump
• Refrigerant: R454B
• Liquid Line: 1/4"
• Suction Line: 3/8"
• Electrical: 208/230V, 1 Phase, 60Hz
• Phase: Single Phase
• BTU/Tonnage: 9,000 BTU/0.75 Ton
• Mini Split Type: Ceiling Cassette
• Zone Compatibility: Single Zone
• Height: 9.65"
• Width: 22.44"
• Depth: 22.44"
• Model Number: ACIQ-09CC-HH-MC/ACIQ-CC-GRILLE-C
• AC Type: Air Handler
• For: Ducted
• Power Supply: 208/230, 1, 60 V, Ph, Hz Rated
• Capacity Cooling: 9,000 Btu/h
• Capacity Heating: 9,800 Btu/h
• Air Flow Maximum: 352.94 CFM
• Noise Level Minimum: 24.0 dB(A)
• Refrigerant Type: R454B

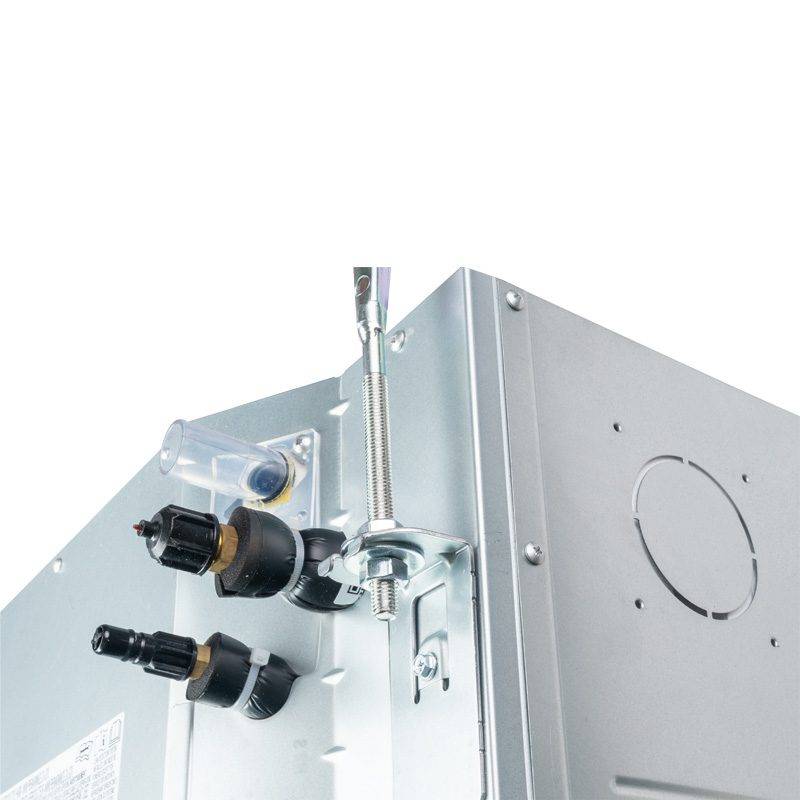

• Connections Liquid Line / Gas Line: 1/4" / 3/8" inch
• Drainage Pump Lift Capacity: 14 inch
• Grille Size: 22.44×22.44 inch
• Net Weight: 41.89 lbs
