Aciq AC-I-60AC14 / AC-I-4860ACL-24 / N96MSN1202422A 120,000 BTU 5 Ton 13.8 SEER2 96% AFUE Multi-Positional System N96MSN1202422A

Product Description

The AciQ AC-I-60AC14 / AC-I-4860ACL-24 / N96MSN1202422A is a matched split HVAC system combining a 120,000 BTU 96% AFUE gas furnace, a 5-ton 13.8 SEER2 R32 condenser, and a 24.5-inch multi-positional cased evaporator coil. The furnace includes an ECM blower and single-stage burner with multi-positional cabinet; the condenser is pre-charged with R32 and uses a rotary compressor. The coil features all-aluminum construction and a factory-installed TXV.

• Matched system: N96MSN1202422A furnace (120,000 BTU, 96% AFUE), AC-I-60AC14 condenser (60,000 BTU, 13.8 SEER2), AC-I-4860ACL-24 cased evaporator coil (24.5" width).

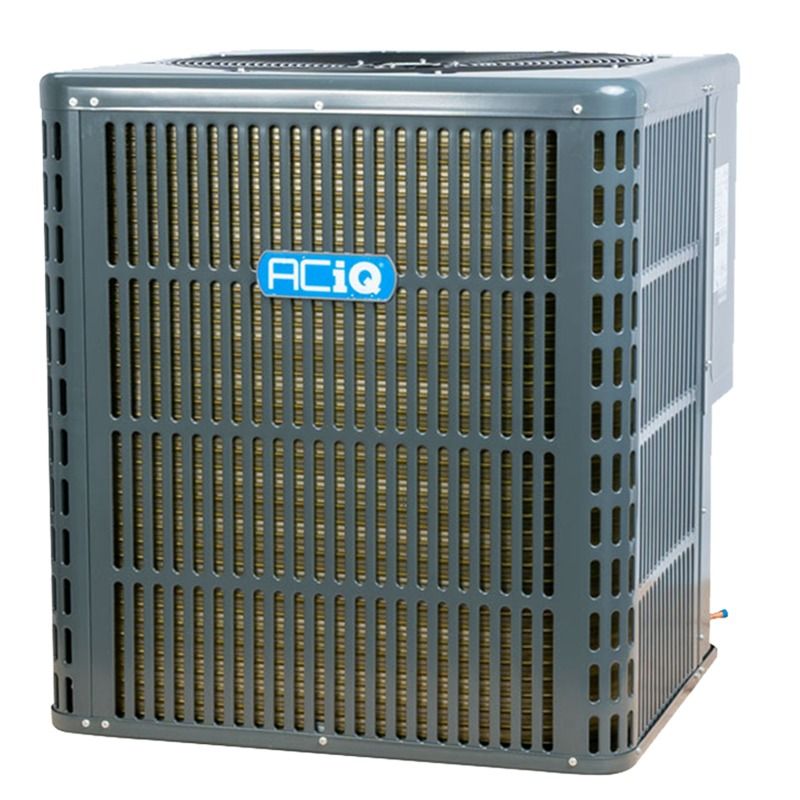

• Condenser: R32 refrigerant (pre-charged 102.29 oz.), rotary compressor, 208/230V 1 phase 60 Hz, approximate 60 dBA outdoor sound level, 3/8" liquid and 3/4" suction valve sizes.
• Furnace and coil: multi-positional (upflow/downflow/horizontal), furnace ECM blower with maximum 2105 CFM, single-stage gas burner, furnace field-convertible to propane; coil is all-aluminum with factory TXV.

Product Highlights

Matched 5-ton split system with R32 condenser (13.8 SEER2), 96% AFUE multi-positional furnace, and 24.5" all-aluminum cased A-coil with factory TXV.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-60AC14 / AC-I-4860ACL-24 / N96MSN1202422A
• Country of Origin: China

Technical Specifications

• Brand: AciQ
• Model (System): AC-I-60AC14 / AC-I-4860ACL-24 / N96MSN1202422A
• Condenser MPN: AC-I-60AC14
• Coil MPN: AC-I-4860ACL-24
• Furnace MPN: N96MSN1202422A
• System Type: Split central air conditioner and furnace system
• Heating capacity (BTU): 120,000 BTU
• Cooling capacity (BTU): 60,000 BTU (5 Ton)
• AFUE: 96%
• SEER2: 13.8
• EER2: 11.7
• Refrigerant: R32 (A2L)
• Refrigerant charge: 102.29 oz.
• Compressor type: Rotary
• Condenser electrical: 208/230V 1 Phase 60 Hz
• Condenser max breaker: 50 Amps
• Condenser min breaker: 33 Amps
• Condenser dimensions (H x W x D): 32.87" x 29.13" x 29.13"
• Condenser decibel level: 60 dBA (approx.)
• Condenser liquid valve size: 3/8"
• Condenser suction valve size: 3/4"
• Condenser weight: 193 lbs

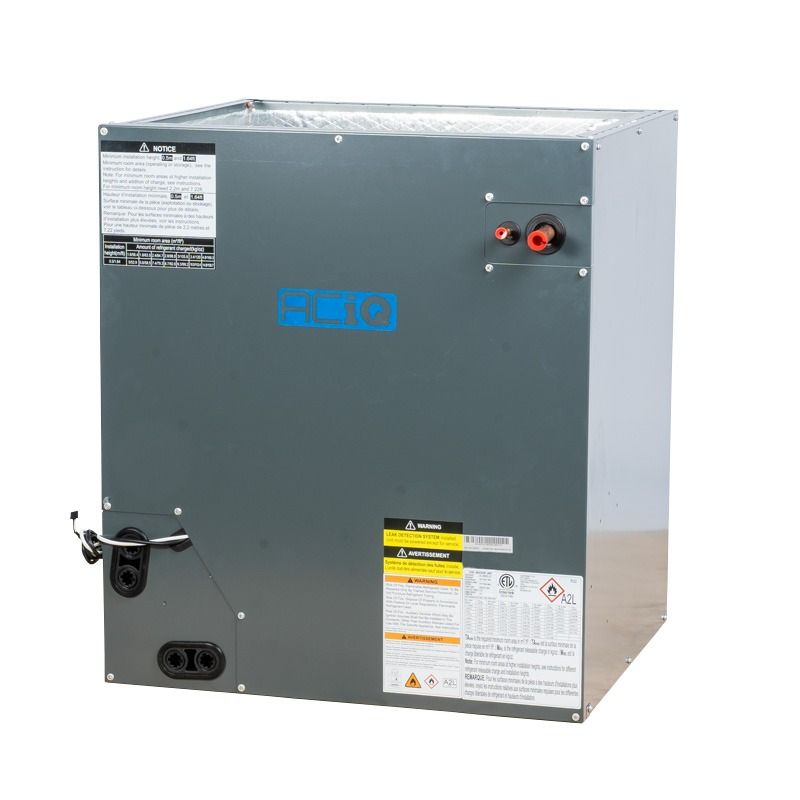

• Coil type: Cased A-coil (multi-positional)
• Coil tonnage range: 3.5 to 5 Ton
• Coil dimensions (H x W x D): 27.8" x 24.5" x 21.02"
• Coil liquid line: 3/8"
• Coil suction line: 3/4"
• Coil construction: All-aluminum
• Coil factory TXV: Factory-installed TXV
• Coil weight: 100 lbs
• Furnace configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace blower motor: ECM
• Furnace maximum CFM: 2105
• Furnace burner stages: Single stage
• Furnace fuel type: Natural gas (field-convertible to propane with optional kit)
• Furnace dimensions (H x W x D): 35" x 24.5" x 29.5"
• Furnace output BTU: 115,200 BTU (approx., 96% of input)
• Furnace weight: 179 lbs
• Energy Star: Yes (furnace)
• AHRI certificate number: 213148763
• Country of origin: China
