Aciq AC-I-60AC14 AC-I-4860ACL-21 N96MSN1002120A 5 Ton 14 SEER2 96% AFUE 100000 BTU Furnace and AC System (Multi-positional)

Product Description

The AciQ AC-I-60AC14 / AC-I-4860ACL-21 / N96MSN1002120A is a split HVAC package that combines a 60,000 BTU (5.0 ton) R32 condenser, a 21 inch cased multi-positional evaporator coil with factory-installed TXV, and a 100,000 BTU natural gas furnace rated 96% AFUE. The condenser is pre-charged for R32 and the furnace uses an ECM blower with single-stage burner for upflow, downflow, or horizontal installation.

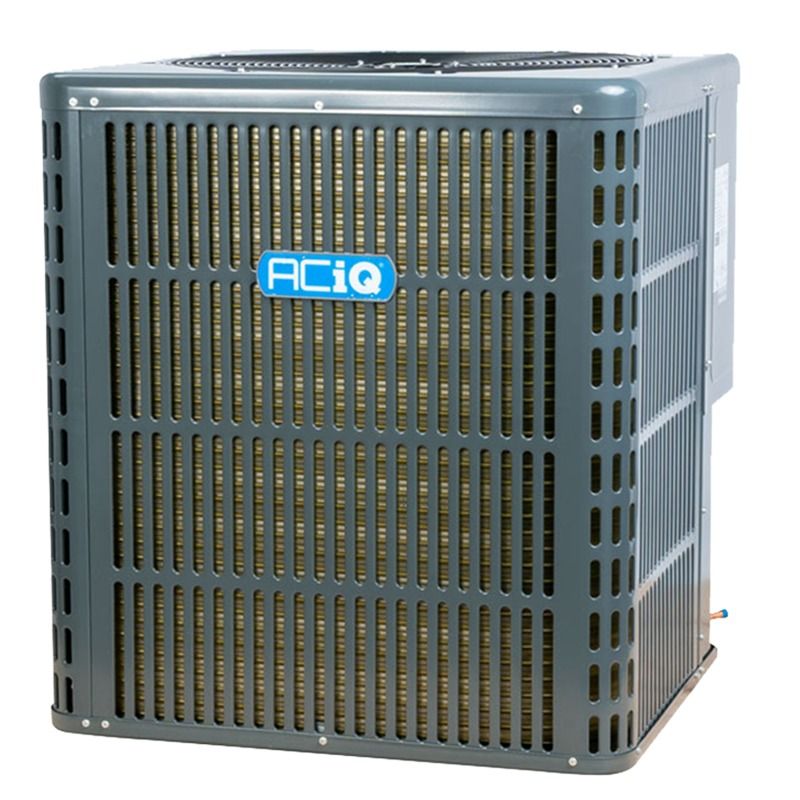

• Outdoor condenser: 60,000 BTU (5.0 ton), 13.8 SEER2, rotary compressor, R32 (A2L), pre-charged 102.29 oz, 208/230V 1 phase

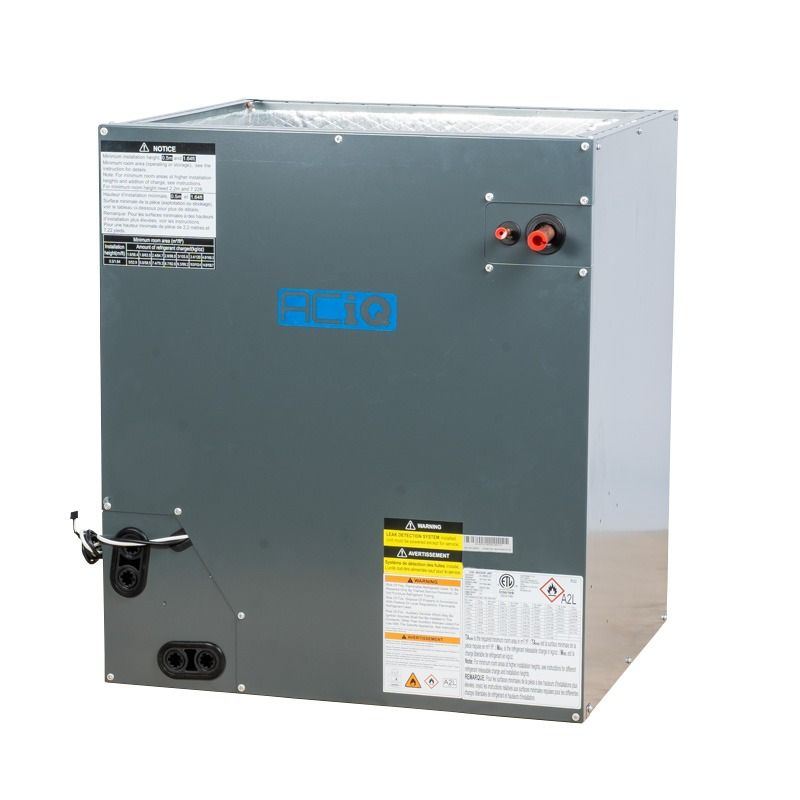

• Evaporator coil: 21 inch cased multi-positional coil, all-aluminum construction, factory-installed TXV, AHRI certified, R32 compatible

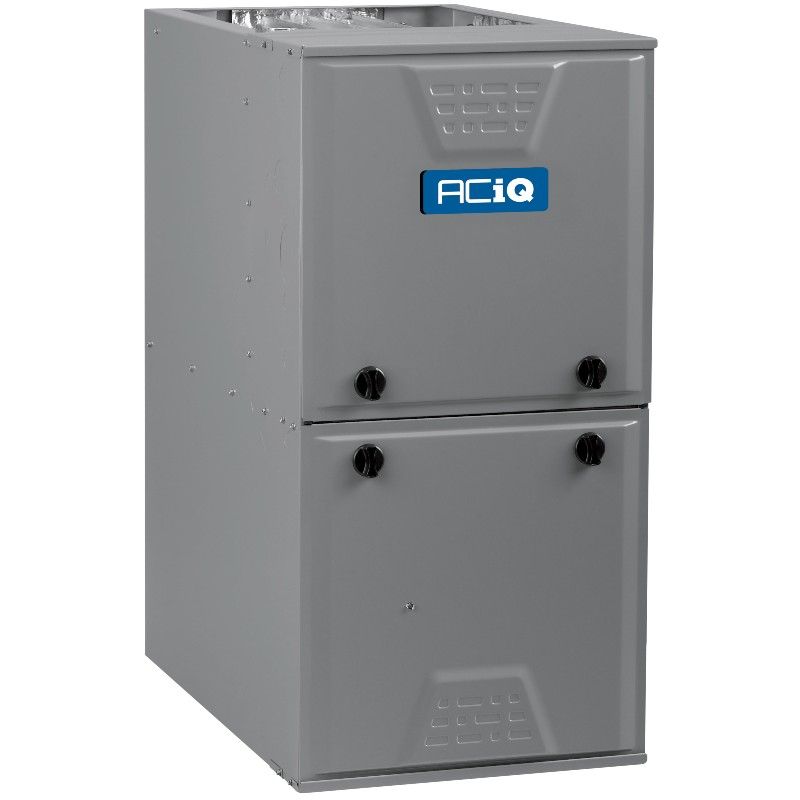

• Furnace: 100,000 BTU input, 96% AFUE, ECM blower, single-stage burner, up to 2125 CFM, multi-positional and field-convertible to propane with LP kit

Product Highlights

Complete 5-ton split system with R32 condenser, 21 inch cased multi-positional coil, and 100,000 BTU 96% AFUE gas furnace.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-60AC14 / AC-I-4860ACL-21 / N96MSN1002120A
• Country of Origin: China

Technical Specifications

• Brand: AciQ
• Manufacturer Part Number: AC-I-60AC14 / AC-I-4860ACL-21 / N96MSN1002120A
• Type: Split system (condenser + evaporator coil + gas furnace)
• Tonnage: 5.0 Ton (60,000 BTU outdoor)
• Outdoor unit SEER2: 13.8 SEER2
• EER: 11.7
• Refrigerant: R32 (A2L)
• Compressor Type: Rotary
• Outdoor unit Cooling Capacity: 60,000 BTU
• Outdoor unit Sound Level: 60 dBA
• Outdoor unit Refrigerant Charge: 102.29 oz
• Outdoor unit Electrical: 208/230V 1 Phase 60 Hz
• Outdoor unit Max Breaker: 50 Amps
• Outdoor unit Min Breaker: 33 Amps
• Outdoor unit Liquid Line Size: 3/8 in
• Outdoor unit Suction Line Size: 3/4 in
• Outdoor unit Stages: Single Stage
• Coil Style: Cased evaporator coil, 21 inch cabinet width
• Coil Construction: All-aluminum, factory-installed TXV, AHRI certified, R32 compatible
• Coil Tonnage Compatibility: 3.5 to 5 Ton
• Coil Weight: 87.00 lbs
• Furnace Heating Input: 100,000 BTU
• Furnace Heating Output: 96,000 BTU (approx.)
• AFUE: 96%
• Furnace Blower Motor: ECM
• Furnace Maximum CFM: 2125
• Furnace Burner Stages: Single Stage
• Fuel Type: Natural Gas (field convertible to Propane with LP kit)
• Furnace Cabinet Width: 21 inch
• Configuration / Airflow Direction: Upflow, Downflow, Horizontal (multi-positional)
• Power Source / Voltage: Furnace 115V; Condenser 208/230V
• Power Phase: 1 Phase
• Number of Compressors: 1
• Number of Fan Motors: 1
• Number of Cooling Speeds: Single Stage
• Energy Star: Furnace Energy Star certified
• Furnace AHRI Certificate Number: 213148762
• Outdoor Unit Weight: 193.00 lbs
• Furnace Weight: 164.00 lbs
• Safety / Compliance Note: Condenser uses R32 (A2L) refrigerant and requires leak detection system; furnace is not Ultra Low NOx compliant
