Aciq AC-I-60AC14 / AC-I-4860ACL-21 / N80MSN0902120A 5 Ton 13.8 SEER2 80% AFUE (21 in) Multi-positional System

Product Description

The Aciq AC-I-60AC14 / AC-I-4860ACL-21 / N80MSN0902120A is a matched split HVAC system that combines a 5 ton outdoor condenser (60,000 BTU, 13.8 SEER2) pre-charged with R32, a cased multi-positional 21 in evaporator coil with factory TXV, and an 88,000 BTU 80% AFUE single-stage multi-positional furnace. The system supports 208/230V condenser power and 115V furnace control.

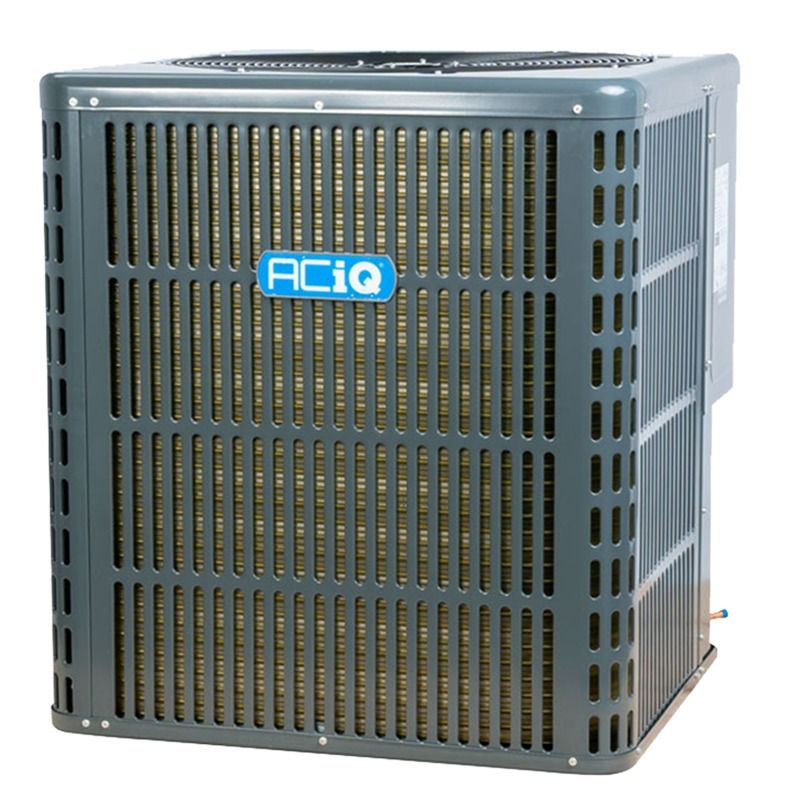

• Condenser: 60,000 BTU (5 Ton), 13.8 SEER2, rotary compressor, pre-charged with R32 and includes leak mitigation kit

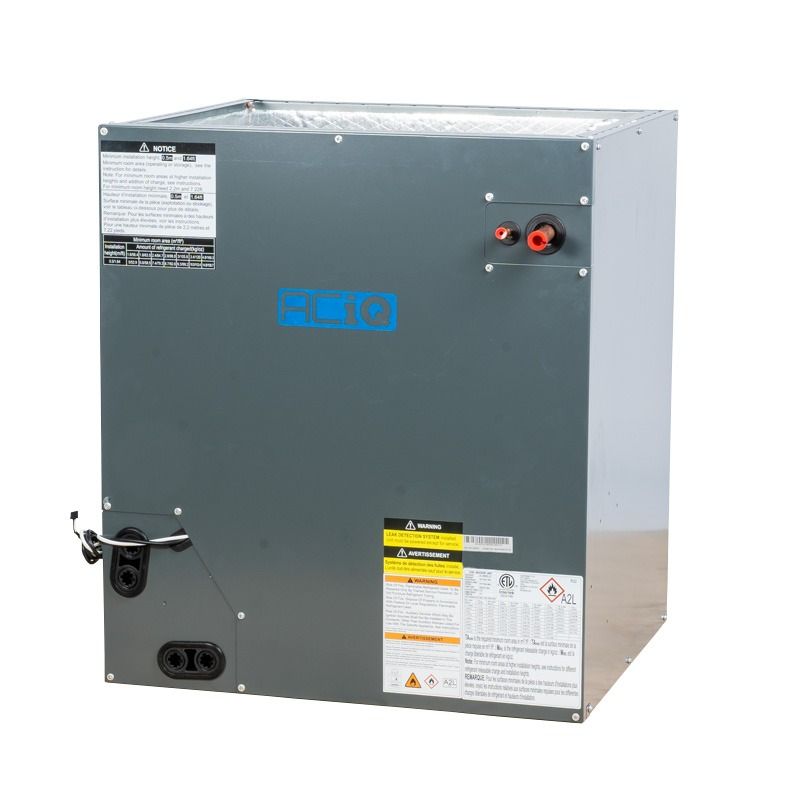

• Evaporator coil: cased A-coil, 21 in cabinet, factory-installed TXV, compatible with 3.5–5 ton systems

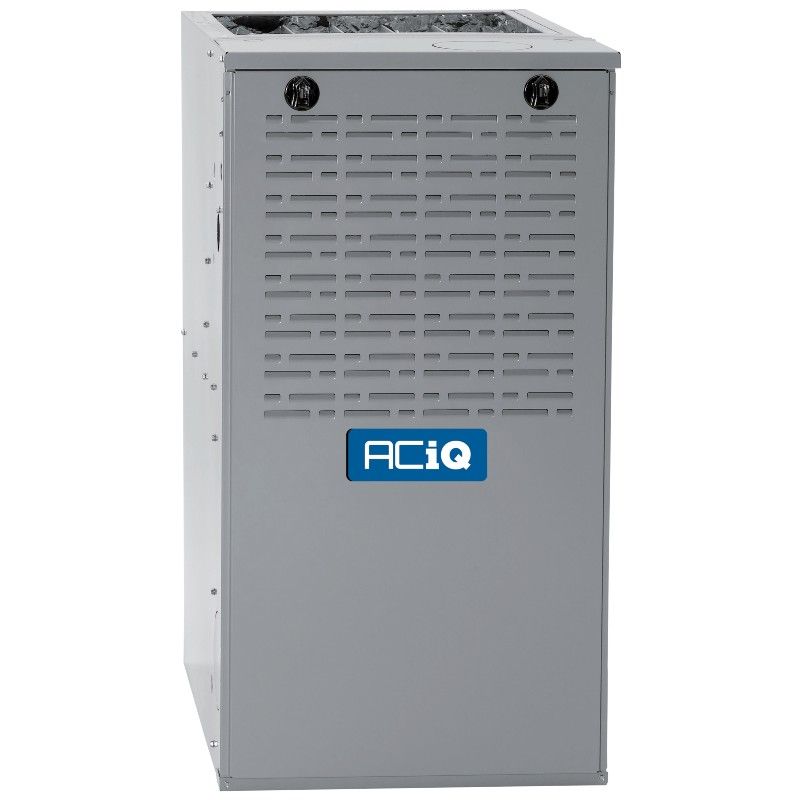

• Furnace: 88,000 BTU input (approx. 70,400 BTU output at 80% AFUE), single-stage burner, multi-positional with multi 18-speed constant torque blower

Product Highlights

Matched 5 ton split system with R32 refrigerant, multi-positional furnace and coil, factory TXV, rotary compressor.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-60AC14 / AC-I-4860ACL-21 / N80MSN0902120A
• Country of Origin: China

Technical Specifications

• Brand: ACiQ
• Model / MPN: AC-I-60AC14 / AC-I-4860ACL-21 / N80MSN0902120A
• System Type: Furnace and air conditioner split system
• Refrigerant Type: R32 (A2L)
• Condenser Model: AC-I-60AC14
• Condenser Cooling Capacity: 60,000 BTU (5 Ton)
• Condenser SEER2: 13.8
• Condenser EER2: 11.7
• Condenser Refrigerant Charge: 102.29 oz
• Condenser Compressor Type: Rotary
• Condenser Sound Level: 60 dBA (approx.)
• Condenser Electrical: 208/230V 1 Phase 60 Hz
• Condenser Min Breaker Size: 33 Amps
• Condenser Max Breaker Size: 50 Amps
• Condenser Dimensions (H x W x D): 32.87 x 29.13 x 29.13 in
• Condenser Weight: 193 lb
• Coil Model: AC-I-4860ACL-21
• Coil Type: Cased A-coil (multi-positional)
• Coil Cabinet Width: 21 in
• Coil Height: 27.8 in
• Coil Depth: 21.02 in
• Coil Weight: 87 lb
• Coil Liquid Line Size: 3/8 in
• Coil Suction Line Size: 3/4 in
• Coil Pre-installed TXV: Yes (factory-installed)
• Coil Refrigerant: R32
• Coil Tonnage Range: 3.5 to 5 Ton
• Furnace Model: N80MSN0902120A
• Furnace Input BTU: 88,000 BTU
• Furnace Output BTU: 70,400 BTU (approx., at 80% AFUE)
• Furnace AFUE: 80%
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Blower: Multi 18-Speed Constant Torque (MCT)
• Furnace Maximum CFM: 1980
• Furnace Electrical: 115V 1 Phase 60 Hz
• Furnace Max Breaker Size: 15 Amps
• Furnace Burner Stages: Single stage
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural Gas (field convertible to Propane with optional kit)
• Furnace Dimensions (H x W x D): 33.33 x 21 x 29 in
• Furnace Weight: 140 lb
• AHRI Certificate Number (Furnace): 213146211
• Exhaust Flue Requirement (Furnace): Metal
• System Electrical Requirements: Condenser: 208/230V 1 Phase 60 Hz; Furnace: 115V 1 Phase 60 Hz
