Aciq AC-I-60AC14 / AC-I-4860ACL-21 / G96VTN0802120 5 Ton 80,000 BTU HVAC System (Replaces 59TP6B080V21--20)

Product Description

Aciq AC-I-60AC14 / AC-I-4860ACL-21 / G96VTN0802120 is a matched HVAC system that combines a 5 ton R32 condenser, a 21" cased multi-positional evaporator coil, and an 80,000 BTU 96% AFUE variable-speed two-stage gas furnace. The condenser is pre-charged for R32 with a rotary compressor and single-stage operation. The furnace provides variable-speed ECM blower control and multi-positional installation for upflow, downflow, or horizontal configurations.

• Condenser: AC-I-60AC14, 60,000 BTU (5 Ton), 13.8 SEER2, rotary compressor, pre-charged R32
• Coil: AC-I-4860ACL-21, 21" cased A-coil, factory-installed TXV, rated for 3.5–5 ton systems with 3/8" liquid and 3/4" suction lines
• Furnace: G96VTN0802120, 80,000 BTU input, 96% AFUE, two-stage burner, variable-speed ECM blower, multi-positional

Product Highlights

Complete matched R32 HVAC package with 5 ton condenser (13.8 SEER2), 21" cased TXV evaporator coil, and 96% AFUE multi-positional gas furnace; designed for professional installation and R32 compatibility.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-60AC14 / AC-I-4860ACL-21 / G96VTN0802120

Technical Specifications

• Brand: Aciq
• Model / Package: AC-I-60AC14 / AC-I-4860ACL-21 / G96VTN0802120
• System type: Matched condenser, evaporator coil, and gas furnace system

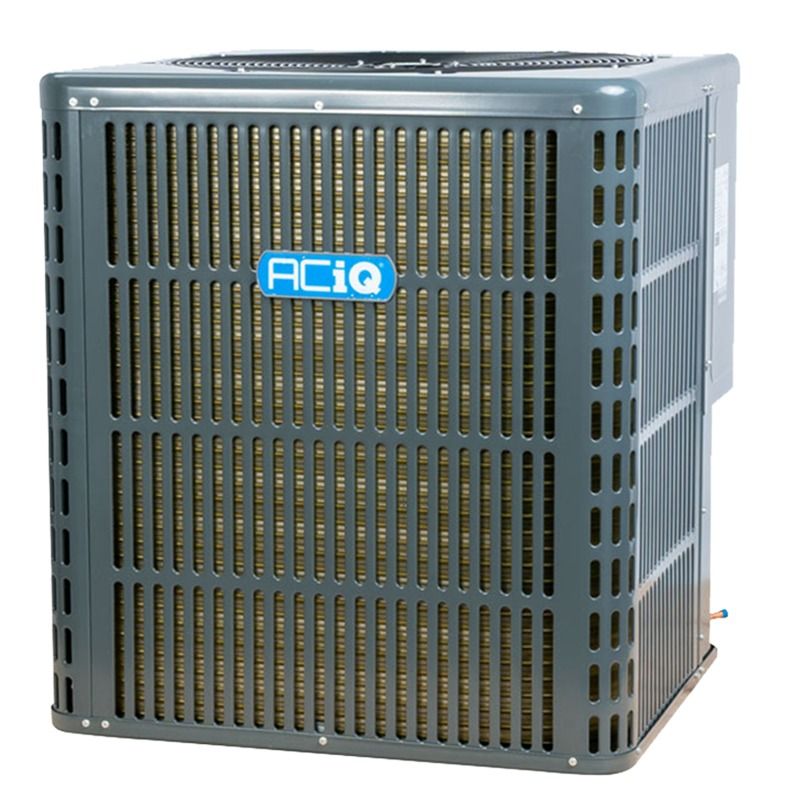

• Condenser model: AC-I-60AC14
• Condenser cooling capacity: 60,000 BTU (5 Ton)
• Condenser SEER2: 13.8
• Condenser EER2: 11.7
• Condenser decibel level: 60 dBA (approx.)
• Condenser refrigerant type: R32 (A2L)
• Condenser refrigerant charge: 102.29 oz.
• Condenser compressor type: Rotary
• Condenser stages: Single stage
• Condenser electrical: 208/230 V, 1 Phase, 60 Hz
• Condenser breaker requirements: Max 50 Amps, Min 33 Amps
• Condenser dimensions (H x W x D): 32.87" x 29.13" x 29.13"
• Condenser weight: 193 lb

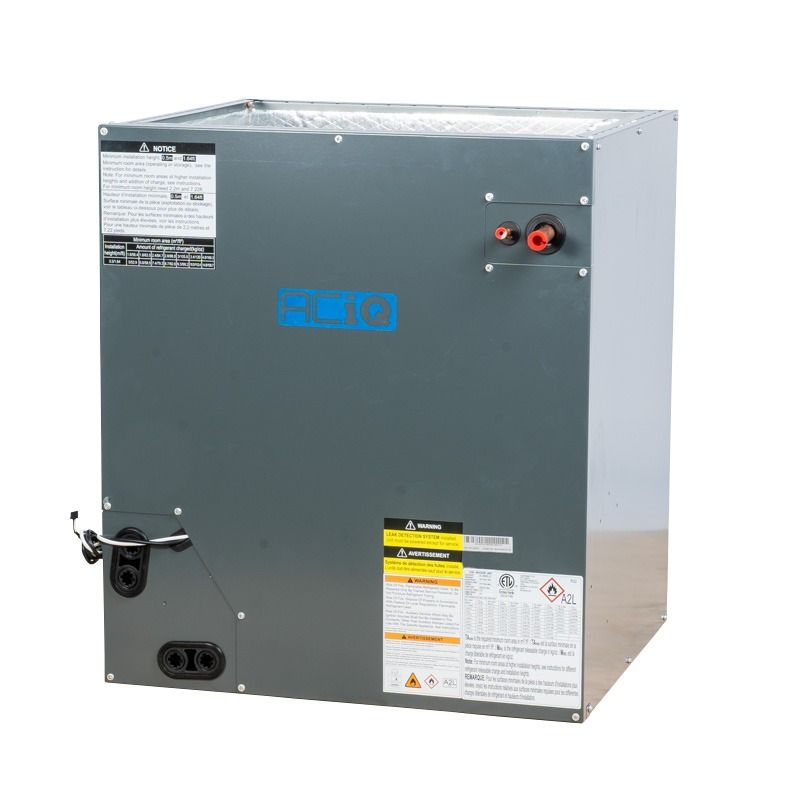

• Coil model: AC-I-4860ACL-21
• Coil tonnage rating: 3.5 to 5 Ton
• Coil style: A-Coil (cased)
• Coil cabinet width: 21"
• Coil refrigerant: R32
• Coil liquid line size: 3/8"
• Coil suction line size: 3/4"
• Coil factory metering device: TXV (factory-installed)
• Coil dimensions (H x W x D): 27.80" x 21.00" x 21.02"
• Coil weight: 87 lb
• Furnace model: G96VTN0802120
• Furnace heating BTU (input): 80,000 BTU
• Furnace AFUE: 96%
• Furnace blower motor: Variable speed ECM
• Furnace burner stages: Two-stage
• Furnace maximum CFM: 2005
• Furnace electrical: 120 V, 1 Phase, 60 Hz
• Furnace configuration: Multi-positional (Upflow / Downflow / Horizontal)
• Furnace exhaust flue requirement: Plastic / PVC
• Furnace dimensions (H x W x D): 35.00" x 21.00" x 29.50"
• Furnace weight: 156 lb
• AHRI certificate number (furnace): 213148556
• Fuel type: Natural Gas (field-convertible to Propane with optional LP kit)
• Energy Star: Yes (furnace listed as Energy Star)
• Requirements: Compatible indoor equipment required for R32 condenser; refrigerant leakage detection system required for R32 A2L refrigerant pairing
• Equivalent / replacement models: Carrier 59TP6B080V21--20; Tempstar F96VTN0802120A; Bryant 926TB60080V21
