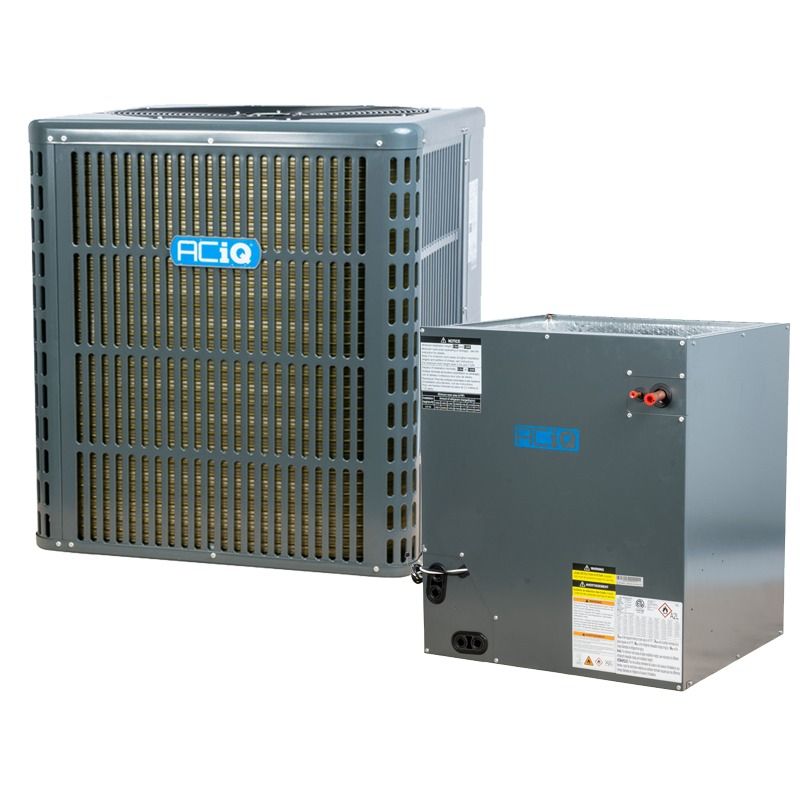

Aciq AC-I-60AC14 5 Ton central air conditioner condenser (60,000 BTU) AC-I-4860ACL-24

Product Description

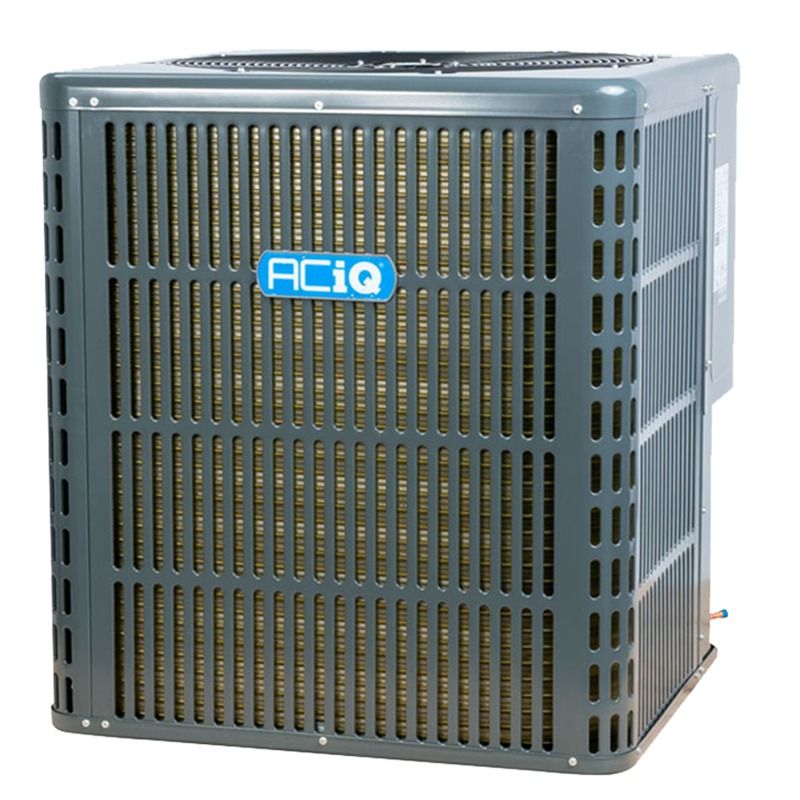

Aciq AC-I-60AC14 is a 5-ton (60,000 BTU) central air conditioner condenser designed as a top-discharge, cooling-only outdoor unit. The unit is pre-charged with R32 refrigerant, rated at 13.8 SEER2, and uses a single-stage rotary compressor. It includes a TXV-controlled A-coil for improved humidity control, a quiet outdoor sound rating, and must be paired with an R32-compatible indoor coil or air handler with refrigerant leakage detection.

• 60,000 BTU (5 Ton) cooling capacity, 13.8 SEER2 efficiency, pre-charged with R32 refrigerant (102.29 oz).
• Single-stage rotary compressor with quiet outdoor sound rating (~60 dBA) and corrosion-resistant design.
• Electrical: 208/230V 1 Phase 60 Hz; breaker range 33–50 Amps; dimensions 32.87 x 29.13 x 29.13 inches; weight 193 lbs.

Product Highlights

5 Ton condenser; 13.8 SEER2; R32 (A2L) refrigerant; top-discharge cooling-only unit; requires R32 indoor coil/air handler with leakage detection.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-60AC14 / AC-I-4860ACL-24

Technical Specifications

• Manufacturer: Aciq
• Manufacturer Part Number: AC-I-60AC14

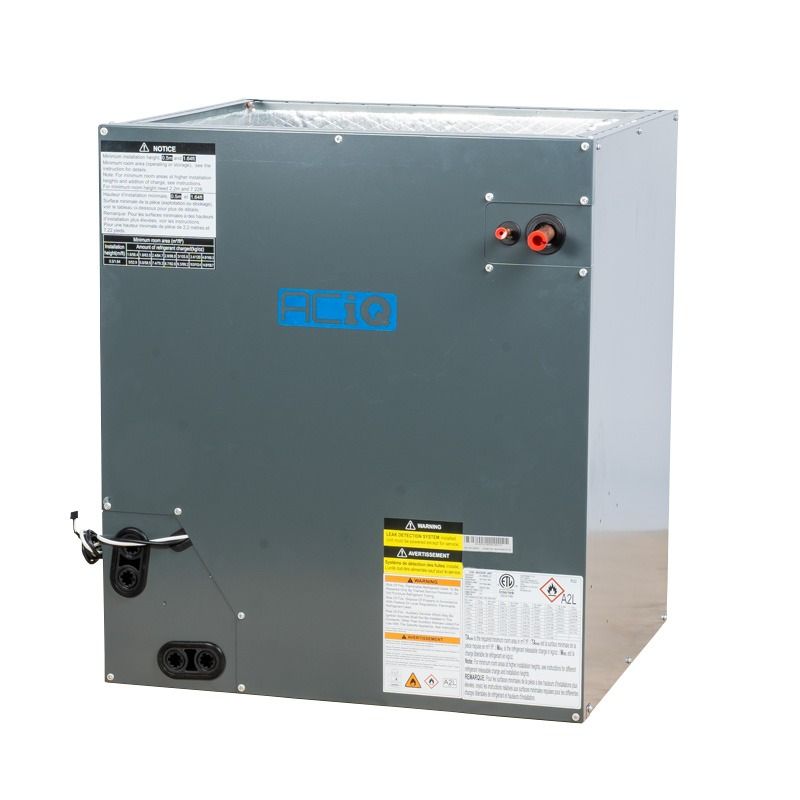

• Compatible coil MPN: AC-I-4860ACL-24
• Unit Type: Central air conditioner condenser (cooling-only, top-discharge)
• Cooling Capacity: 60,000 BTU (5 Ton)
• SEER2 Rating: 13.8
• Refrigerant: R32 (A2L)
• Refrigerant Charge: 102.29 oz
• Compressor Type: Rotary
• Stages: Single stage
• TXV: TXV-controlled A-coil
• Input Voltage: 208/230V 1 Phase 60 Hz
• Min Breaker Size: 33 Amps
• Max Breaker Size: 50 Amps
• Liquid Line Size: 3/8"
• Suction Line Size: 3/4"
• Dimensions (H x W x D): 32.87 x 29.13 x 29.13 inches
• Weight: 193 lbs
• Sound Level: 60 dBA
• Features: Pre-charged with R32; corrosion-resistant design; quiet outdoor sound rating; TXV-controlled A-coil

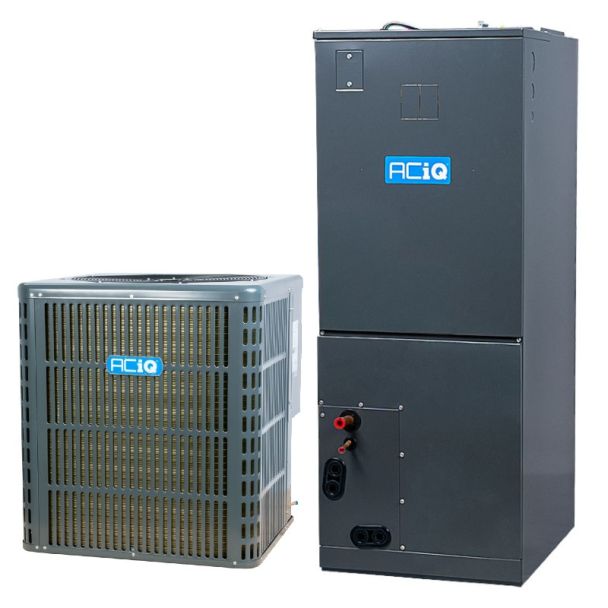

• Safety / Regulatory: Contains R32 (A2L) refrigerant; requires refrigerant leakage detection system and pairing with R32 air handler/evaporator coil
