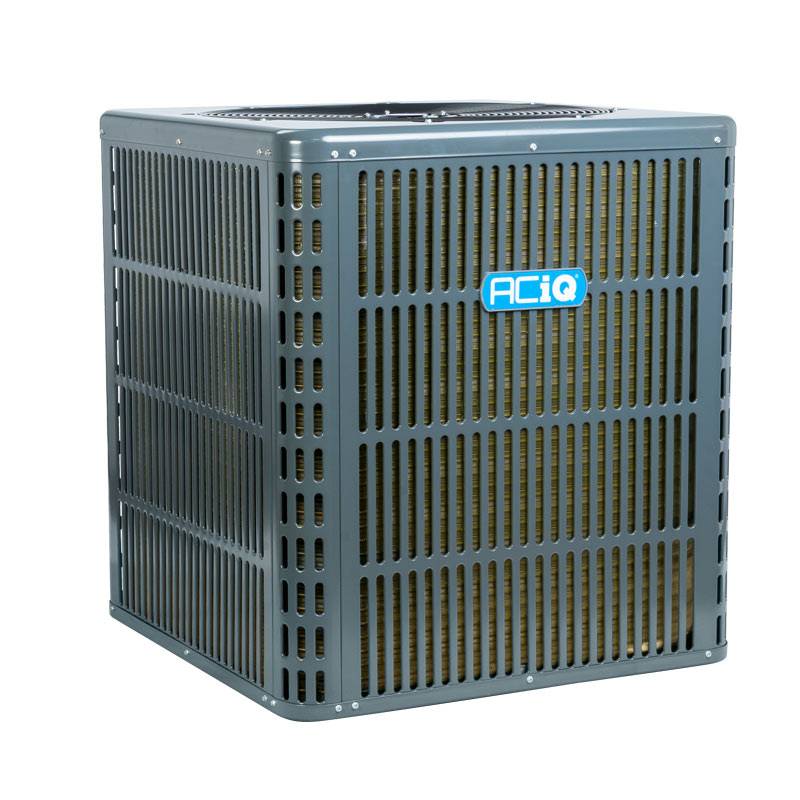

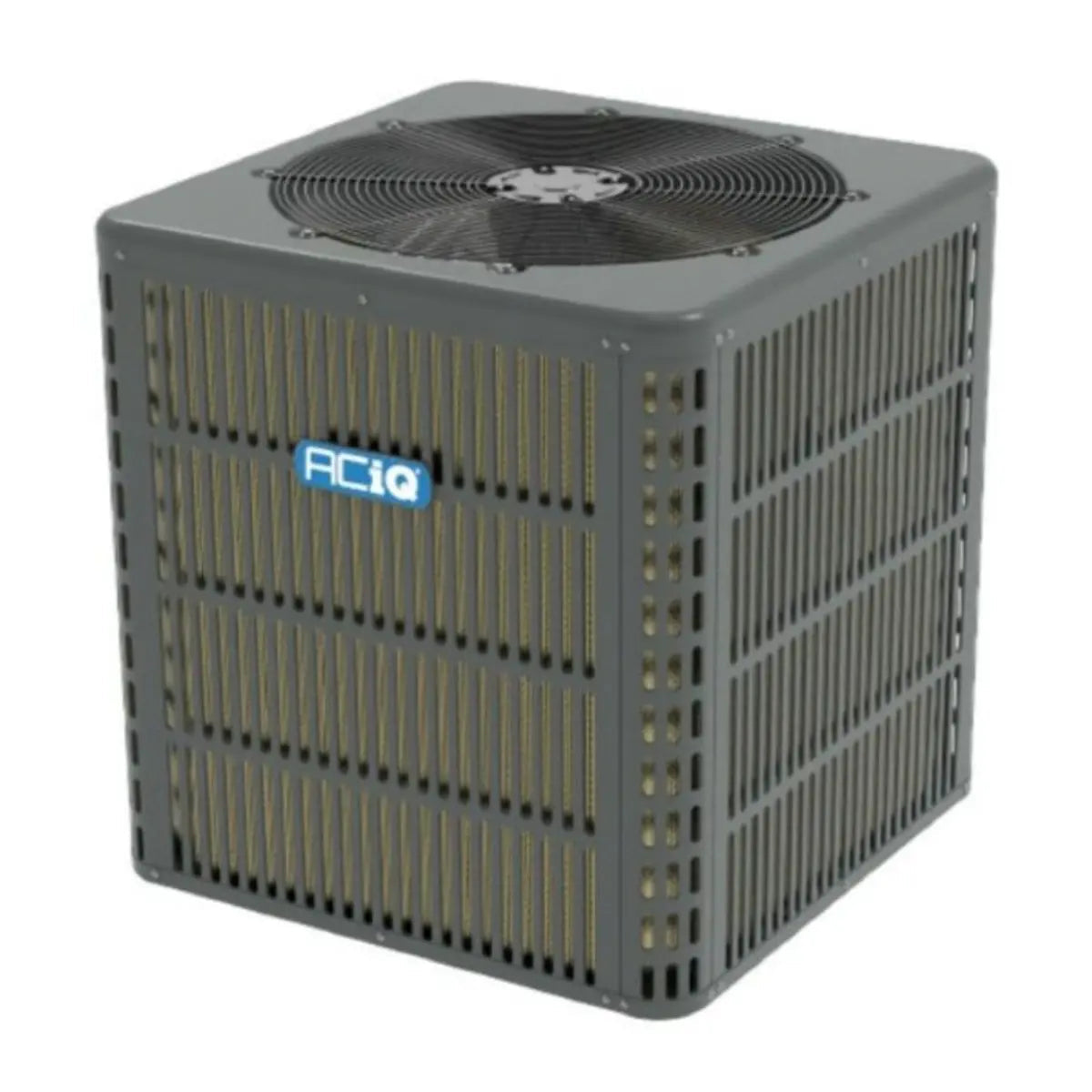

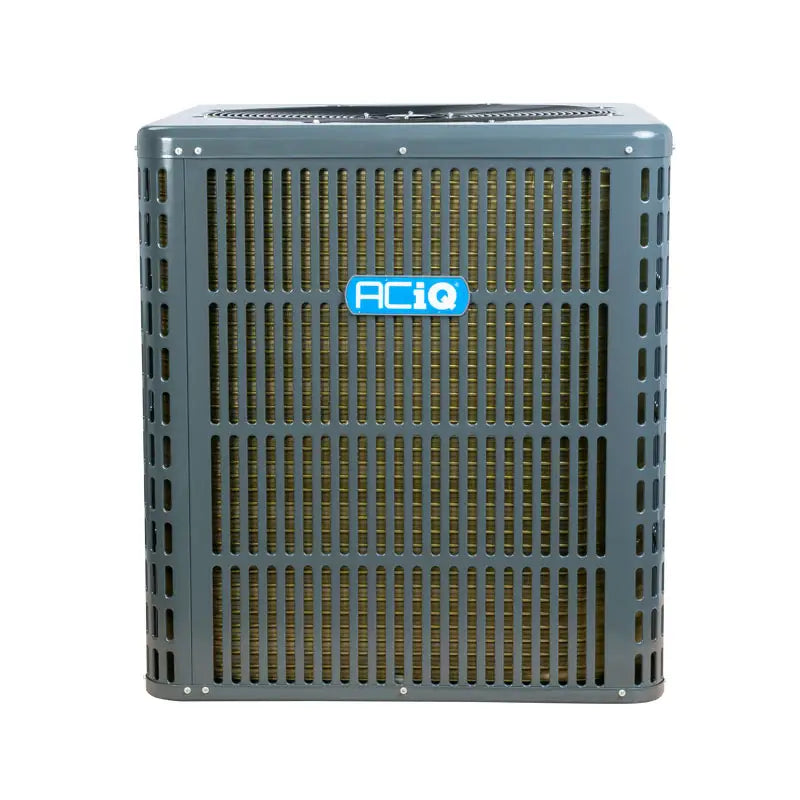

Aciq AC-I-60AC14 5 Ton Central Air Conditioner Condenser (29.13 x 29.13 x 32.87)

Product Description

The Aciq AC-I-60AC14 is a 5 ton central air conditioner condenser rated at 13.8 SEER2 and specified for 54,000 BTU cooling capacity. The unit uses a scroll compressor, is pre-charged with R-32 refrigerant, and is designed for residential outdoor installation with corrosion-resistant construction and quiet outdoor operation. It operates on 208-230V single-phase power and is rated for ambient conditions from 5 to 131 F.

• 54,000 BTU cooling capacity, 13.8 SEER2 efficiency, pre-charged with R-32 refrigerant
• Scroll compressor; electrical: 208-230V / 1Ph / 60Hz; liquid line 3/8 inch, gas line 3/4 inch
• Quiet outdoor operation (58 dB(A)), dimensions 29.13 x 29.13 x 32.87 inches; operates 5 to 131 F

Product Highlights

5 ton condenser, 13.8 SEER2, pre-charged R-32, scroll compressor.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-60AC14

Technical Specifications

• Brand: ACIQ
• Manufacturer Part Number: AC-I-60AC14
• Product Type: Air Conditioner Condenser
• Tonnage: 5 Ton
• Cooling Capacity: 54,000 BTU
• SEER2 Rating: 13.8
• Compressor Type: Scroll
• Electrical: 208-230V / 1Ph / 60Hz
• Refrigerant: R-32
• Refrigerant Charge: 102.29 oz
• Liquid Line Size: 3/8"
• Gas/Suction Line Size: 3/4"
• Sound Level: 58 dB(A)
• Dimensions (W x D x H): 29.13" x 29.13" x 32.87"
• Weight: 193 lbs
• Operating Temperature Range: 5 to 131 F
• Corrosion Resistant: Yes
