Aciq AC-I-60AC14 5 Ton 80% AFUE Multi-Positional System (21 in Coil) AC-I-4860ACL-21

Product Description

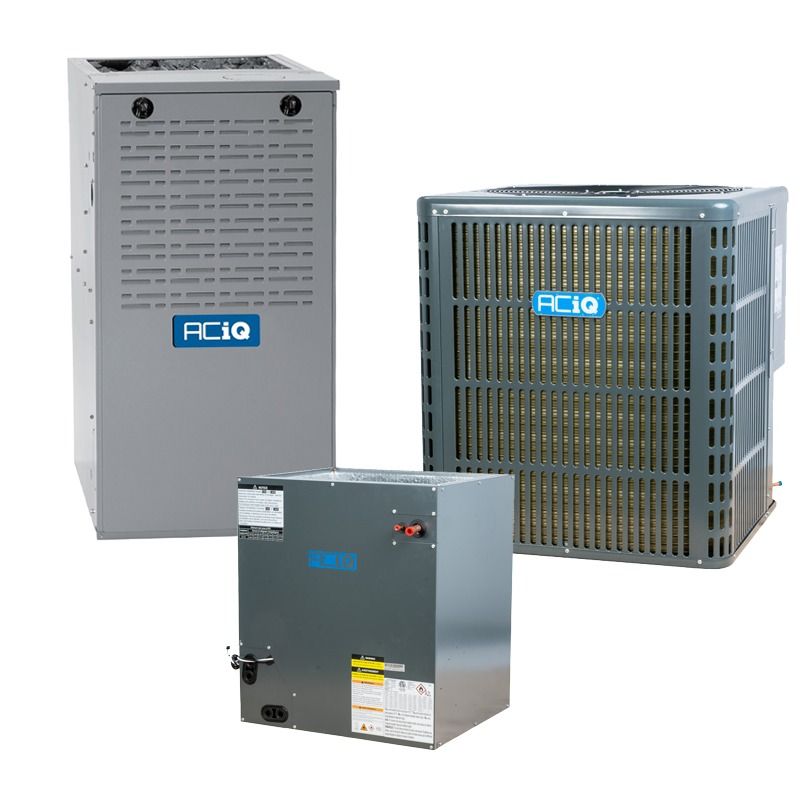

Aciq AC-I-60AC14 / AC-I-4860ACL-21 / G80CTL0902120 is a 5 ton split HVAC system combining a 60,000 BTU R32 condenser, a multi-positional 80,000 BTU (88,000 input) 80% AFUE two-stage gas furnace, and a 21 in cased evaporator coil. The system supports upflow, downflow, or horizontal installation and requires 208/230V for the condenser and 115V for the furnace.

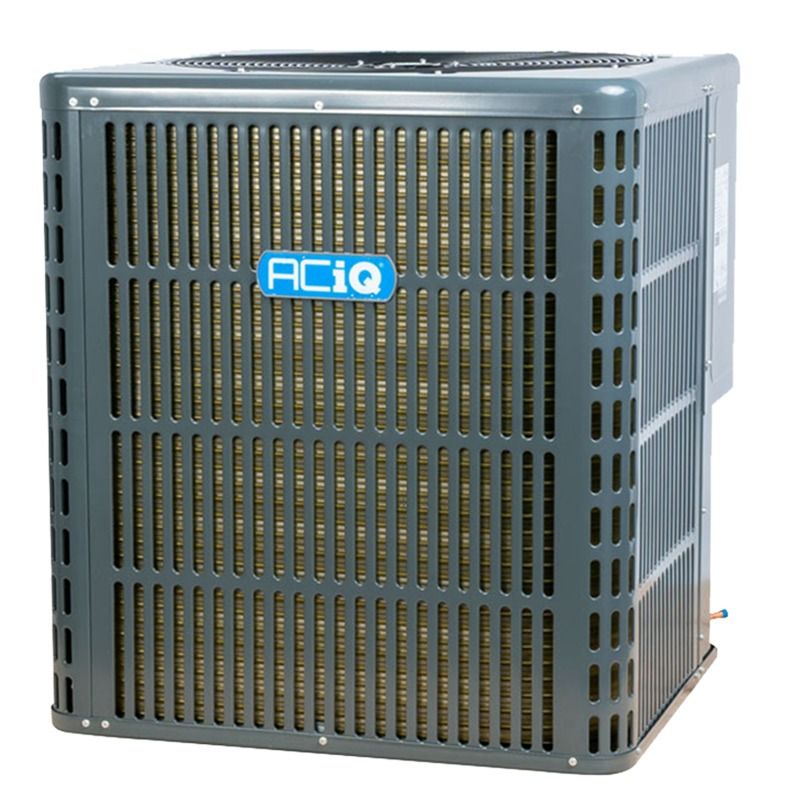

• Condenser: 60,000 BTU (5 ton) cooling capacity, R32 refrigerant (pre-charged), rotary compressor, SEER2 ~13.8, 208/230V 1 ph
• Furnace: 88,000 BTU input (~71,000 BTU output at 80% AFUE), two-stage burner, communicating variable-speed ECM blower, 115V 1 ph, multi-positional

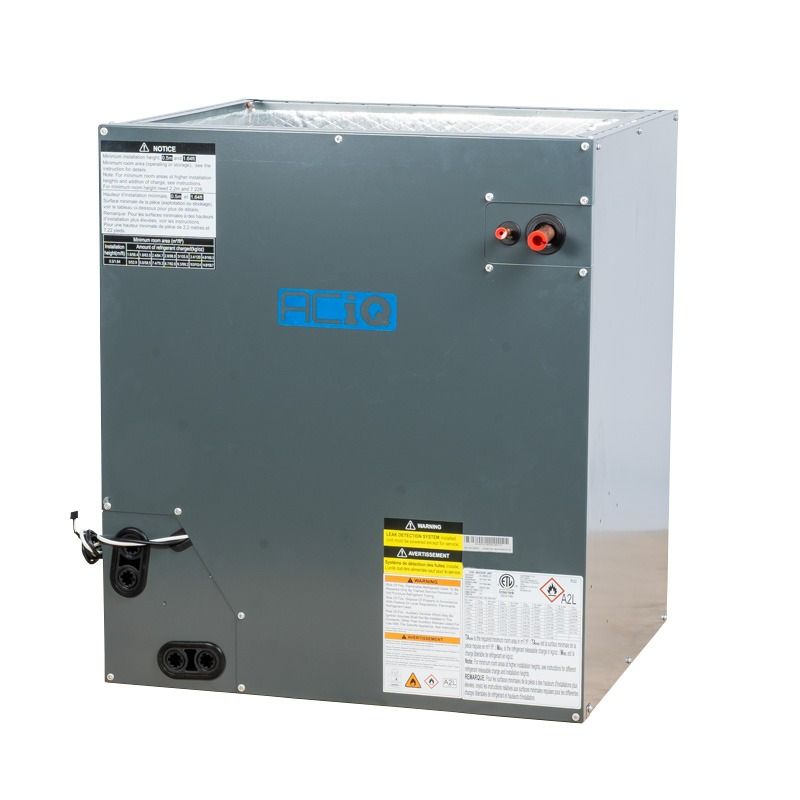

• Evaporator coil: 21 in cased A-coil, 3.5–5 ton range, all-aluminum construction with factory TXV and R32 compatibility (leak mitigation kit included)

Product Highlights

Complete 5 ton R32 split system with 13.8 SEER2 condenser, 80% AFUE two-stage furnace, and 21 in multi-positional evaporator coil

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-60AC14 / AC-I-4860ACL-21 / G80CTL0902120
• Country of Origin: China

Technical Specifications

• Brand: Aciq
• MPN: AC-I-60AC14 / AC-I-4860ACL-21 / G80CTL0902120
• System type: Split AC and furnace system
• Cooling capacity: 60,000 BTU (5 Ton)
• SEER2: 13.8
• EER2: 11.7
• Refrigerant type: R32 (pre-charged)
• Refrigerant charge: 102.29 oz.
• Compressor type: Rotary
• Condenser input voltage: 208/230V 1 Phase 60 Hz
• Condenser max breaker: 50 Amps
• Condenser min breaker: 33 Amps
• Condenser liquid valve size: 3/8"
• Condenser suction valve size: 3/4"
• Condenser dimensions (H x W x D): 32.87" x 29.13" x 29.13"
• Condenser weight: 193 lb
• Condenser sound level: 60 dBA (approx.)
• Evaporator coil model: AC-I-4860ACL-21
• Coil tonnage range: 3.5 to 5 Ton
• Coil cabinet width: 21 in
• Coil dimensions (H x W x D): 27.80" x 21" x 21.02"
• Coil weight: 87 lb
• Coil construction and features: All-aluminum construction, pre-installed TXV, AHRI certified, R32 compatible (leak mitigation kit included)
• Furnace model: G80CTL0902120
• Furnace input BTU: 88,000 BTU
• Furnace output BTU (approx.): 71,000 BTU
• AFUE: 80%
• Furnace electrical: 115V 1 Phase 60 Hz
• Furnace dimensions (H x W x D): 33 1/3" x 21" x 29"
• Furnace weight: 146 lb
• Furnace features: Two-stage burner, communicating variable-speed ECM blower, direct ignition with silicon nitride hot surface ignitor
• Maximum CFM: 2330
• Drive type: Direct
• Motor RPM: 1200
• Horsepower: 1 HP
• Configuration: Multi-positional (upflow / downflow / horizontal)
• Fuel type: Natural gas (field-convertible to propane with optional LP kit)
• Exhaust flue requirement: Metal
• Connection: 1/2" NPT
• Maximum inlet pressure: 13.6"wc
• Burner stages: Two
• AHRI certificate number: 213148664
