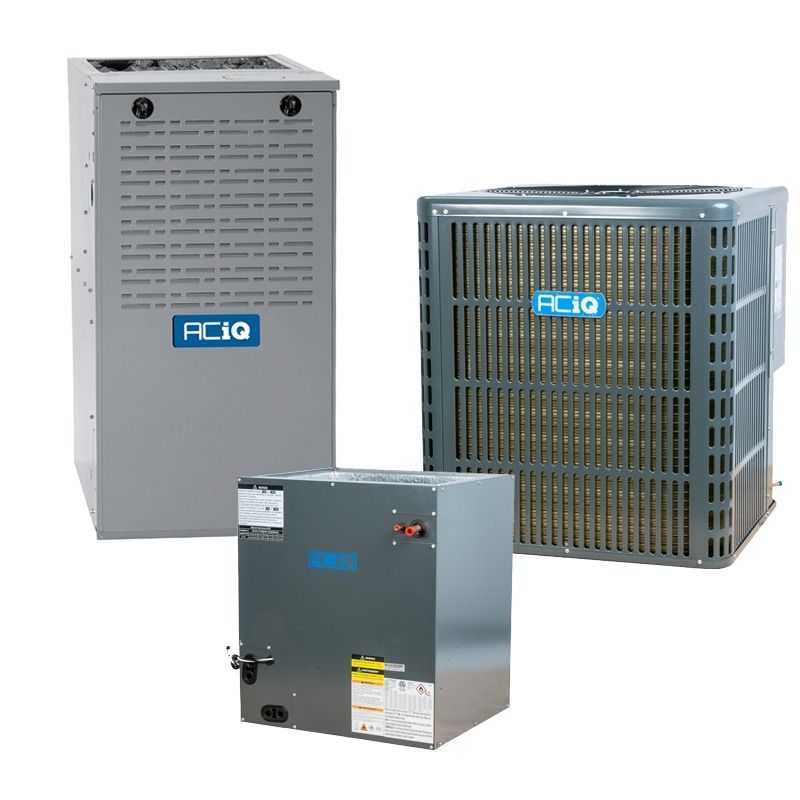

Aciq AC-I-60AC14 5 Ton 14 SEER2 80% AFUE 140000 BTU Furnace and AC System (5 Ton / Multi-Positional) AC-I-4860ACL-24 G80CTL1352422

Product Description

The Aciq AC-I-60AC14 / AC-I-4860ACL-24 / G80CTL1352422 is a matched 5-ton HVAC system combining a 60,000 BTU R32 condenser (SEER2 13.8), a 132–140k BTU multi-positional 80% AFUE two-stage gas furnace with variable speed ECM blower, and a 3.5–5 ton 24.5" cased A-coil evaporator with factory TXV. The condenser requires 208/230V 1-phase power and the furnace uses 115V 1-phase power.

• Matched components: AC-I-60AC14 condenser (60,000 BTU, R32, SEER2 13.8, ~60 dBA) with AC-I-4860ACL-24 cased A-coil (factory TXV, all-aluminum).
• Furnace G80CTL1352422: 132,000 BTU input, 80% AFUE, two-stage burner, direct ignition with silicon nitride hot surface ignitor, variable speed ECM blower, multi-positional.
• Electrical and breaker: condenser 208/230V 1Ph 60Hz (min breaker 33A, max 50A); furnace 115V 1Ph 60Hz; condenser refrigerant charge 102.29 oz.

Product Highlights

Matched 5-ton R32 condenser and cased A-coil paired with a 132–140k BTU 80% AFUE multi-positional furnace; factory TXV and system-level electrical/breaker requirements specified.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-60AC14 / AC-I-4860ACL-24 / G80CTL1352422

Technical Specifications

• System Model / MPN: AC-I-60AC14 / AC-I-4860ACL-24 / G80CTL1352422
• Brand: ACiQ
• Furnace MPN: G80CTL1352422
• Condenser MPN: AC-I-60AC14
• Coil MPN: AC-I-4860ACL-24
• Furnace Fuel Type: Natural Gas (field convertible to Propane with optional kit)
• Furnace Heating BTU (input): 132,000 BTU
• Furnace Output BTU (approx): 107,000 BTU
• Furnace Efficiency / AFUE: 80%
• Furnace Blower Motor: Variable Speed - ECM
• Furnace Maximum CFM: 2265
• Furnace Configuration: Upflow/Downflow/Horizontal (multi-positional)
• Furnace Electrical: 115V 1 Phase 60 Hz
• Furnace Burner Stages: Two
• Furnace Ignition Type: Direct Ignition with Silicon Nitride Hot Surface Ignitor
• Furnace Height: 33 1/3"
• Furnace Width: 24 1/2"
• Furnace Depth: 29"
• Furnace Weight: 163.00 lbs
• Furnace AHRI Certificate Number: 213148667
• Furnace Exhaust Flue Requirement: Metal
• Condenser Cooling BTU: 60,000 BTU
• Condenser Refrigerant: R32
• Condenser SEER2: 13.8
• Condenser EER2: 11.7
• Condenser Stages: Single Stage
• Condenser Compressor Type: Rotary
• Condenser Refrigerant Charge: 102.29 oz
• Condenser Decibel Level (dBA): 60 dBA
• Condenser Liquid Valve Size: 3/8"
• Condenser Suction Valve Size: 3/4"
• Condenser Electrical: 208/230V 1 Phase 60 Hz
• Condenser Max Breaker Size: 50 Amps
• Condenser Min Breaker Size: 33 Amps
• Condenser Tonnage: 5 Ton
• Condenser Height: 32.87"
• Condenser Width: 29.13"
• Condenser Depth: 29.13"
• Condenser Weight: 193.00 lbs
• Coil Tonnage Range: 3.5 to 5 Ton
• Coil Style: A-Coil (cased)
• Coil Refrigerant: R32
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 3/4"
• Coil Height: 27.8"
• Coil Width: 24.5"
• Coil Depth: 21.02"
• Coil Weight: 100.00 lbs
• Electrical Requirements (system notes): Condenser: 208/230V 1 Phase 60 Hz; Furnace: 115V 1 Phase 60 Hz
• Breaker Requirement (condenser): 50 Amps max, 33 Amps min
• Furnace Equivalent Models: Carrier 58TP0A135V24--22; Tempstar F80CTL1352422A; Bryant 880TA60135C24
