Aciq AC-I-60AC14 5 Ton 13.8 SEER2 Air Conditioner with 24.5 in Multi-Positional Cased Coil AC-I-4860ACL-21

Product Description

ACiQ AC-I-60AC14 / AC-I-4860ACL-21 is a matched 5-ton (60,000 BTU) air conditioner condenser and 24.5 in multi-positional cased evaporator coil pre-charged with R32 refrigerant for split-system installations. The condenser provides 13.8 SEER2 (11.7 EER2) cooling using a rotary compressor, 208/230V 1Ph electrical, and an approximate 60 dBA outdoor sound level. The coil is all-aluminum with a factory-installed TXV and includes an R32 leak mitigation kit.

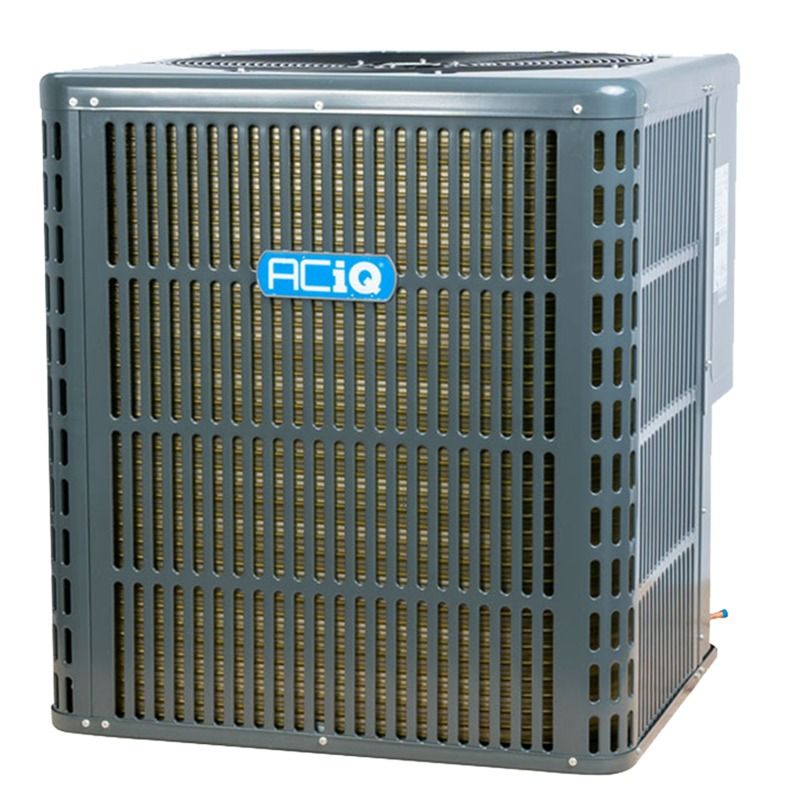

• 5 Ton (60,000 BTU) condenser rated 13.8 SEER2 and 11.7 EER2 with rotary compressor
• Pre-charged with R32 (A2L) refrigerant; requires pairing with R32-compatible indoor unit and leak detection

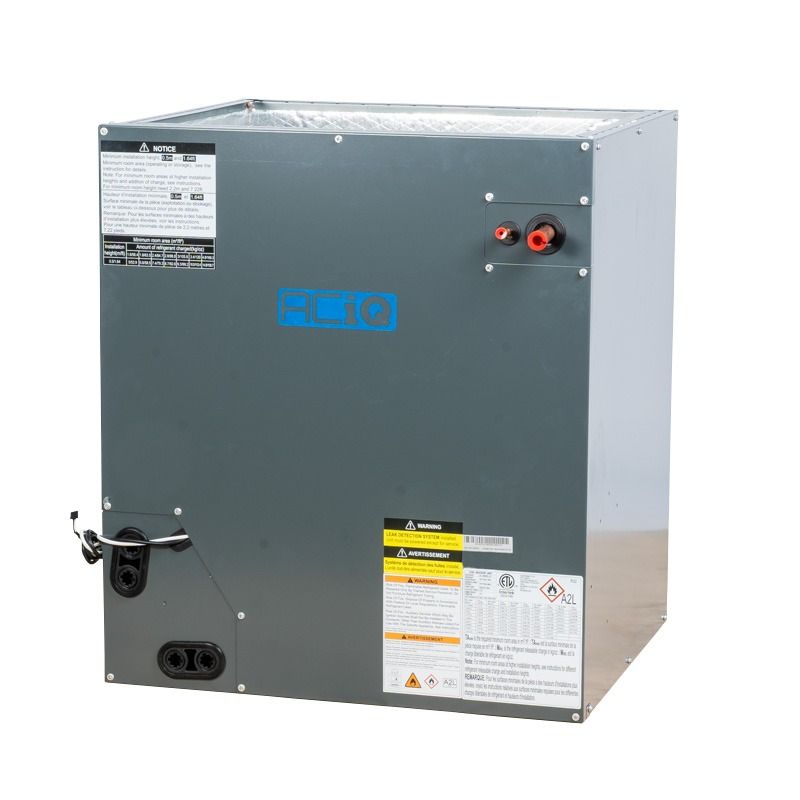

• 24.5 in multi-positional cased A-coil with factory-installed TXV, 3/8 in liquid and 3/4 in suction connections

Product Highlights

Matched 5-ton condenser and 24.5 in multi-positional cased evaporator coil; R32 refrigerant; 13.8 SEER2.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-60AC14 / AC-I-4860ACL-21

Technical Specifications

• Brand: ACiQ
• Model / MPN: AC-I-60AC14 / AC-I-4860ACL-21
• System type: Matched condenser and cased evaporator coil (split-system)
• Cooling capacity: 60,000 BTU (5 Ton)
• SEER2: 13.8
• EER2: 11.7
• Refrigerant: R32 (A2L)
• Refrigerant charge: 102.29 oz.
• Compressor type: Rotary
• Stages: Single stage
• Sound level: Approximately 60 dBA
• Electrical: 208/230V, 1 Phase, 60 Hz
• Minimum breaker size: 33 Amps
• Maximum breaker size: 50 Amps
• Condenser dimensions (H x W x D): 32.87 in x 29.13 in x 29.13 in
• Condenser weight: 193 lbs
• Evaporator coil model(s): AC-I-4860ACL-24 / AC-I-4860ACL-21
• Coil style: A-coil (cased), multi-positional (upflow, downflow, horizontal)
• Coil dimensions (H x W x D): 27.8 in x 24.5 in x 21.02 in
• Coil weight: 100 lbs
• Coil tonnage range: 3.5 to 5 Ton
• Coil liquid line: 3/8 in
• Coil suction line: 3/4 in
• Coil construction: All-aluminum
• Coil features: Factory-installed TXV; R32 leak mitigation kit
• Safety / refrigerant notes: Contains R32 (A2L) refrigerant — requires pairing with R32-equipped indoor unit or air handler and an appropriate refrigerant leakage detection system
• AHRI certification: Coil AHRI certified (as indicated in system bundle documentation)
