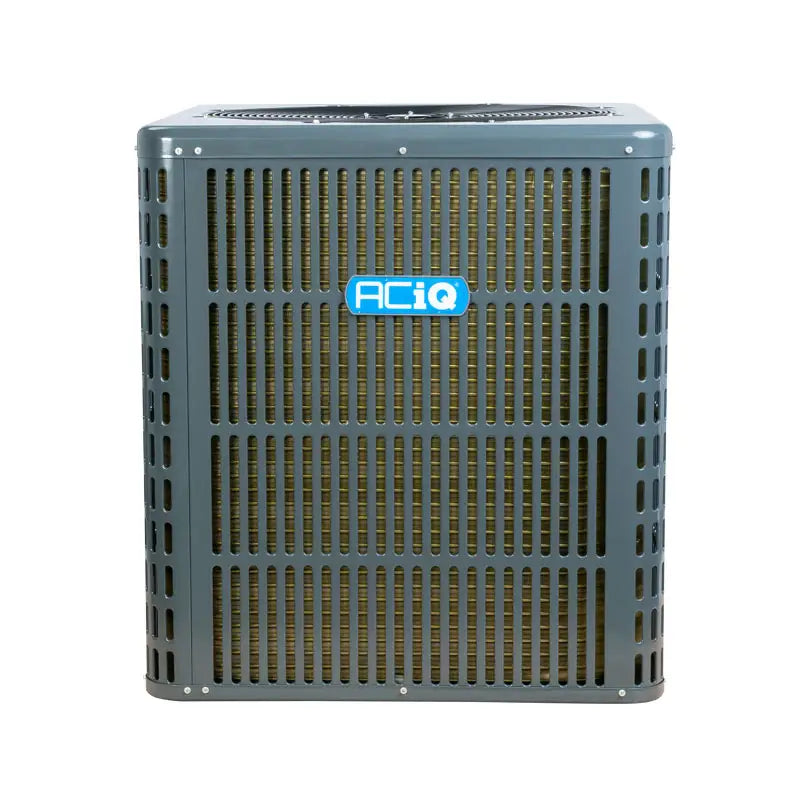

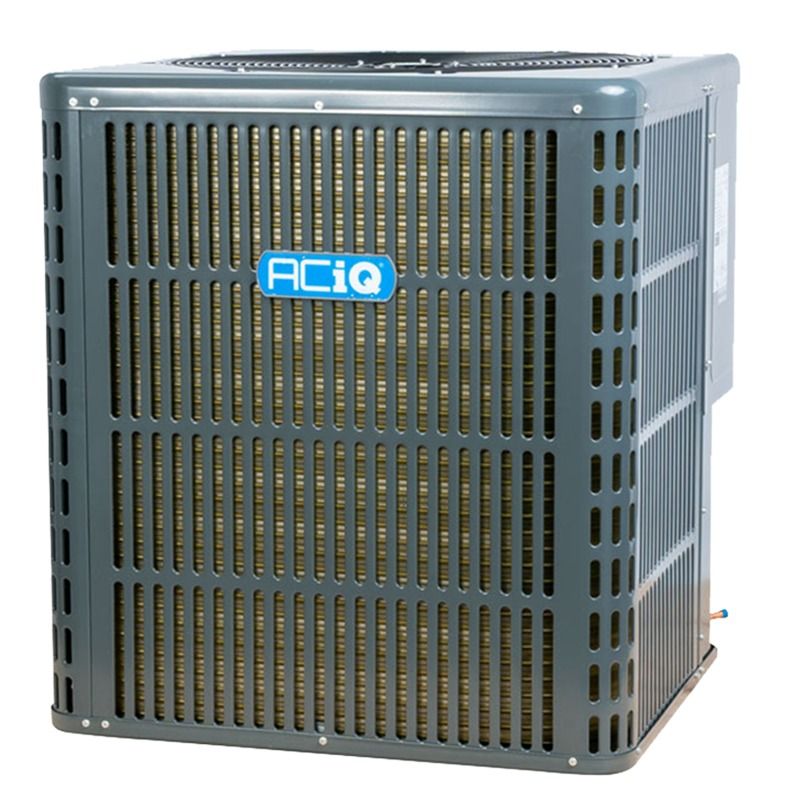

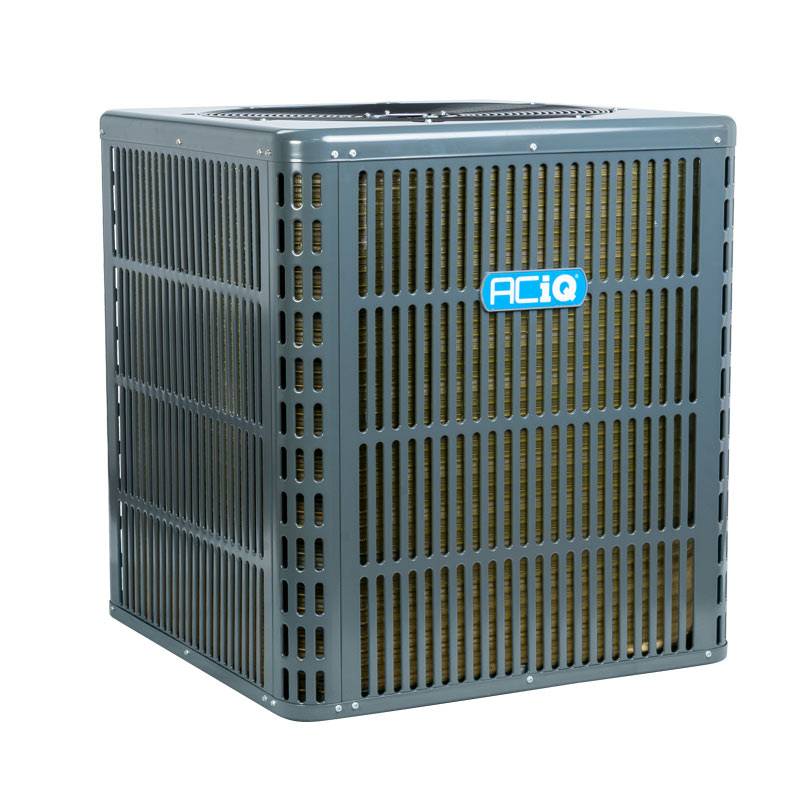

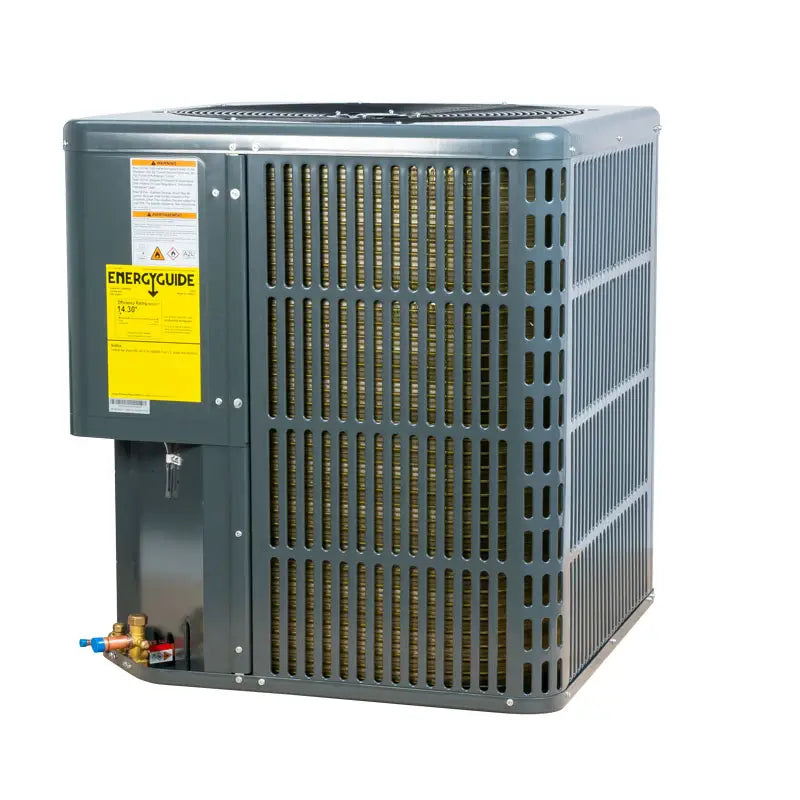

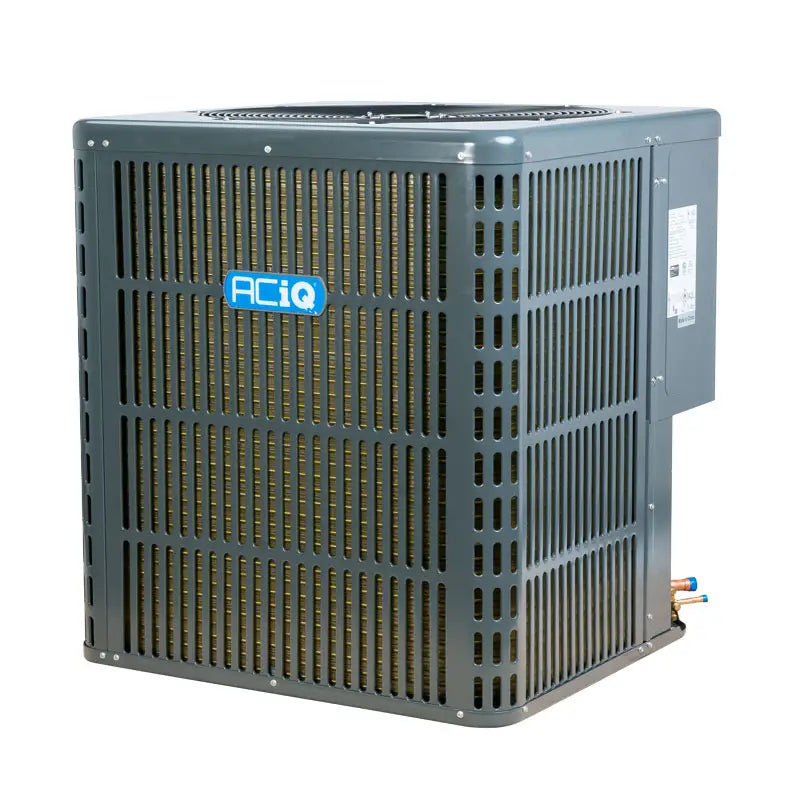

Aciq AC-I-48AC14 Central Air Conditioner Condenser 4 Ton 14.3 SEER2 (29.13 x 29.13 x 32.87)

Product Description

The ACIQ AC-I-48AC14 is a 4-ton central air conditioner condenser designed for outdoor residential cooling using R32 refrigerant. It offers 14.3 SEER2 efficiency and approximately 46,000 BTU cooling capacity, operates on 208–230 V single-phase 60 Hz power, and incorporates a top-discharge scroll compressor with corrosion-resistant construction and quiet outdoor sound levels. Dimensions are 29.13 x 29.13 x 32.87 inches and the operating range is 5° to 131°F.

• Pre-charged with R32 refrigerant; top-discharge design and corrosion-resistant outdoor construction.
• Scroll compressor with 14.3 SEER2 efficiency; electrical: 208–230 V, 1 Phase, 60 Hz; liquid line 3/8" and suction/gas line 3/4".
• Approx. 46,000 BTU capacity and outdoor sound levels near 58 dB(A).

Product Highlights

4-ton outdoor condenser, 14.3 SEER2, R32 refrigerant, top-discharge scroll compressor.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-48AC14

Technical Specifications

• Manufacturer Part Number: AC-I-48AC14
• Brand: ACIQ
• Model: AC-I-48AC14
• Product Type: Central air conditioner condenser
• Tonnage: 4 Ton
• Cooling Capacity: 46,000 BTU
• SEER2 (Efficiency): 14.3 SEER2
• EER2: 11.7
• Compressor Type: Scroll
• Condenser Stages: Single Stage
• Refrigerant: R32 (A2L)
• Refrigerant Charge: 91.71 oz.
• Input Voltage: 208–230 V, 1 Phase, 60 Hz
• Max Breaker Size: 40 Amps
• Min Breaker Size: 27 Amps
• Liquid Line Size: 3/8"
• Suction/Gas Line Size: 3/4"
• Sound Level: 58 dB(A)
• Dimensions (W x D x H): 29.13" x 29.13" x 32.87"
• Weight (spec sheet): 176 lbs.
• Operating Range: 5° to 131°F
• Mounting / Discharge: Top-discharge outdoor unit
• Coil Control: TXV-controlled A-coil
• Product Features: Pre-charged with R32 refrigerant; corrosion-resistant design; quiet outdoor operation
