Aciq AC-I-48AC14 / AC-I-4860ACL-24 / N96MSN1402422A 4 Ton 13.8 SEER2 140,000 BTU Furnace & AC System (Multi-Positional)

Product Description

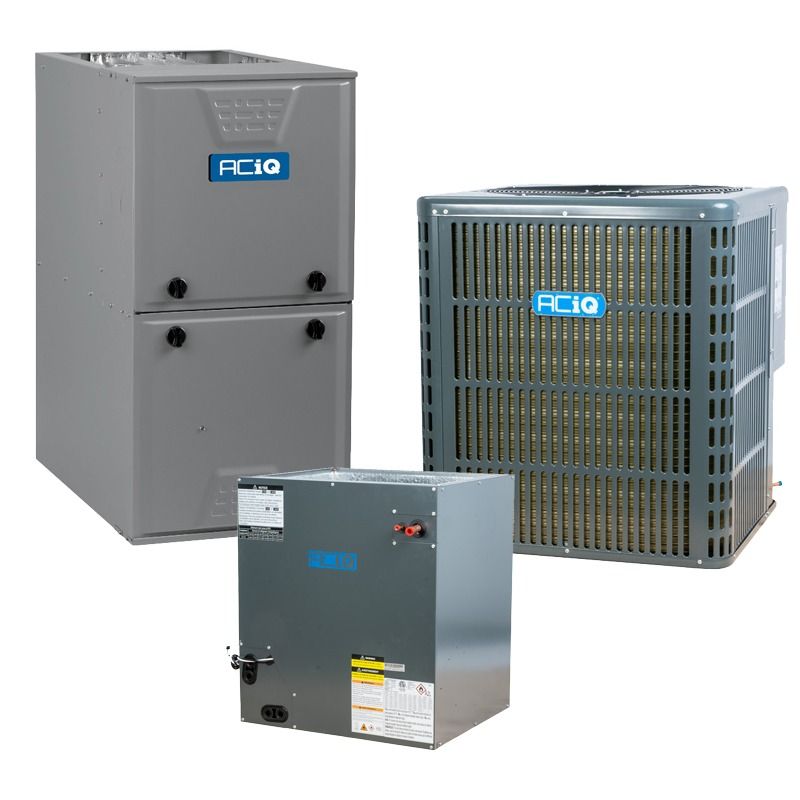

Aciq AC-I-48AC14 / AC-I-4860ACL-24 / N96MSN1402422A is a matched split HVAC system combining a 140,000 BTU 96% AFUE single-stage natural gas furnace, a 4 ton 13.8 SEER2 R32 condenser, and a multi-positional cased evaporator coil with factory-installed TXV. The system supports upflow, downflow, and horizontal installations, uses an ECM blower in the furnace, and requires 208/230V 1-Phase 60 Hz power for the condenser while the furnace uses 115V.

• Matched components: 140,000 BTU furnace (96% AFUE), 48,000 BTU condenser (4 ton, 13.8 SEER2), and 3.5–5 ton cased A-coil with TXV.
• Furnace: single-stage gas burner, ECM blower, multi-positional 24.5" cabinet, field-convertible to propane.
• Condenser: pre-charged for R32 refrigerant, rotary compressor, ~60 dBA operation, 208/230V 1-Phase 60 Hz electrical.

Product Highlights

Matched 3-piece residential split system; multi-positional installation; R32 compatible; factory TXV.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-48AC14 / AC-I-4860ACL-24 / N96MSN1402422A
• Country of Origin: China

Technical Specifications

• Brand: ACiQ
• Model/MPN: AC-I-48AC14 / AC-I-4860ACL-24 / N96MSN1402422A
• System Type: Matched split central HVAC system (furnace, condenser, cased evaporator coil)
• Furnace Heating Capacity: 140,000 BTU
• Furnace AFUE: 96%
• Furnace Fuel Type: Natural Gas (field-convertible to Propane)
• Furnace Burner Stages: Single
• Furnace Blower Motor: ECM
• Furnace Maximum CFM: 2105
• Furnace Dimensions (H x W x D): 35" x 24.5" x 29.5"
• Furnace Weight: 179 lbs
• Furnace Energy Star: Yes
• Furnace Input Voltage: 115V
• Condenser Cooling Capacity: 48,000 BTU (4 Ton)
• Condenser SEER2: 13.8
• Condenser EER2: 11.7
• Condenser Refrigerant: R32 (pre-charged)
• Condenser Compressor Type: Rotary
• Condenser Decibel Level: Approximately 60 dBA
• Condenser Electrical: 208/230V 1 Phase 60 Hz
• Condenser Min Breaker Size: 27 Amps
• Condenser Max Breaker Size: 40 Amps
• Condenser Liquid Valve Size: 3/8"
• Condenser Suction Valve Size: 3/4"
• Condenser Dimensions (H x W x D): 32.87" x 29.13" x 29.13"
• Condenser Weight: 187 lbs
• Coil Model: AC-I-4860ACL-24
• Coil Tonnage Range: 3.5 to 5 Ton
• Coil Style: A-Coil (cased)
• Coil Refrigerant Compatibility: R32
• Coil Features: Factory-installed TXV, all-aluminum construction, leak mitigation kit included
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 3/4"
• Coil Dimensions (H x W x D): 27.8" x 24.5" x 21.02"
• Coil Weight: 100 lbs
• System Configuration: Multi-positional: Upflow, Downflow, Horizontal
• AHRI Certificate Number: 213148528
• Exhaust Flue Requirement: Plastic / PVC
• Power Phase: 1 Phase
• Country of Origin: China
