Aciq AC-I-48AC14 / AC-I-4860ACL-24 / N80MSN1552420A 4 Ton 13.8 SEER2 80% AFUE Multi-Positional System

Product Description

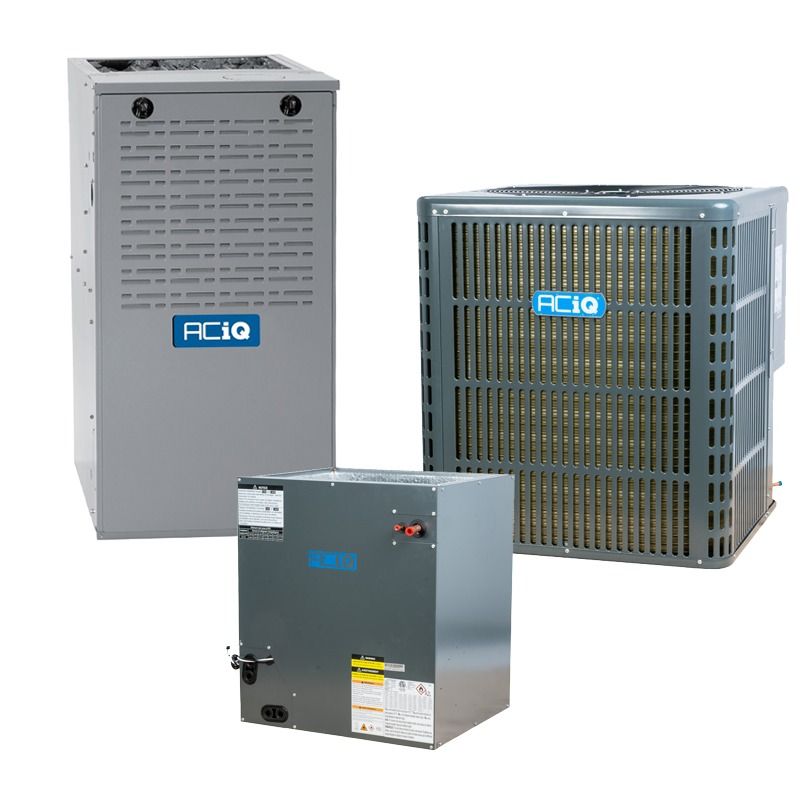

ACiQ AC-I-48AC14 / AC-I-4860ACL-24 / N80MSN1552420A is a matched 4-ton split HVAC system combining a 13.8 SEER2 R32 outdoor condenser, a multi-positional 154,000 BTU 80% AFUE gas furnace, and a cased evaporator coil sized for 3.5–5 tons. The condenser is pre-charged with R32 and uses a rotary compressor on 208/230V power; the furnace features direct ignition, a Multi 18-Speed constant torque blower on 115V, and the coil includes a factory TXV with 3/8" liquid and 3/4" suction lines.

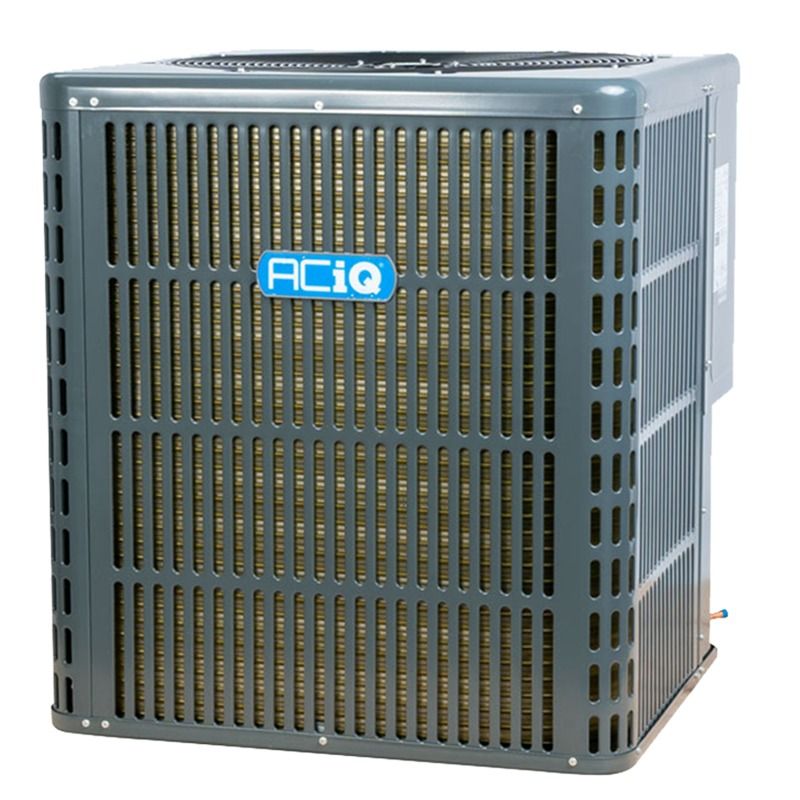

• Matched 4-ton system: condenser 13.8 SEER2 R32 (pre-charged 91.71 oz), rotary compressor, 208/230V, 27–40A breaker range
• Furnace: 154,000 BTU input, 80% AFUE (123,200 BTU output), direct ignition with silicon nitride hot surface ignitor, Multi 18-Speed constant torque blower, 115V

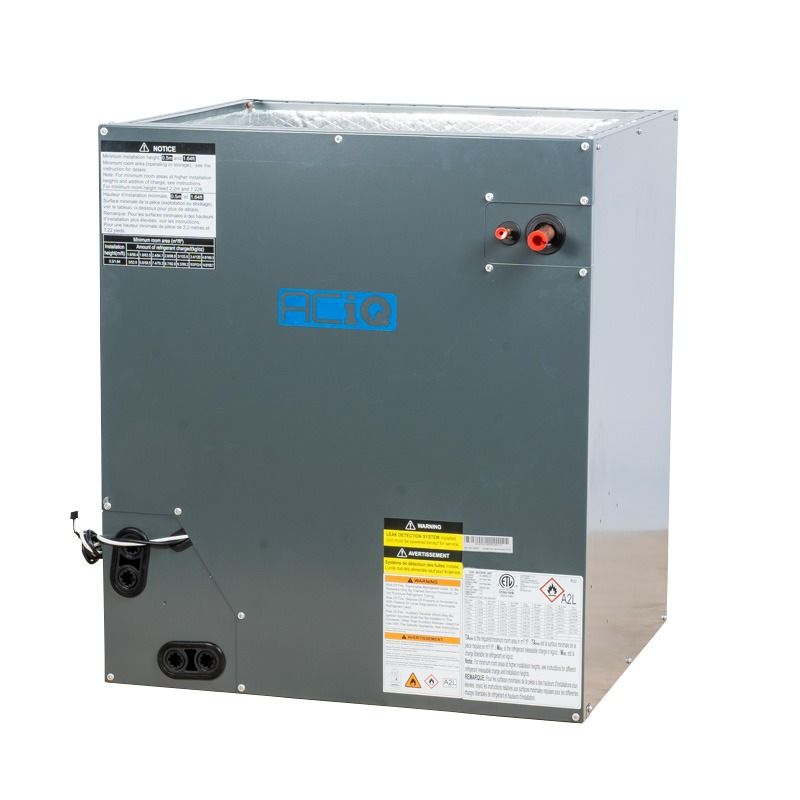

• Evaporator coil: cased A-coil, multi-positional, fits 3.5–5 ton systems, factory TXV, 24.5" cabinet width, 3/8" liquid / 3/4" suction

Product Highlights

Matched 4-ton R32 system with 13.8 SEER2 condenser, 154,000 BTU 80% AFUE multi-positional furnace, cased coil.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-48AC14 / AC-I-4860ACL-24 / N80MSN1552420A
• Country of Origin: United States

Technical Specifications

• Brand: ACiQ
• MPN: AC-I-48AC14 / AC-I-4860ACL-24 / N80MSN1552420A
• System Tonnage: 4 Ton (condenser) / coil sized for 3.5-5 Ton
• Condenser SEER2: 13.8 SEER2
• Condenser EER2: 11.7 EER2
• Condenser Cooling Capacity: 48,000 BTU
• Condenser Refrigerant: R32 (pre-charged)
• Condenser Refrigerant Charge: 91.71 oz
• Condenser Compressor Type: Rotary
• Condenser Electrical (Voltage): 208/230V 1 Phase 60 Hz
• Condenser Max Breaker: 40 Amps
• Condenser Min Breaker: 27 Amps
• Condenser Sound Level: Approximately 60 dBA
• Furnace Input BTU: 154,000 BTU
• Furnace AFUE: 80%
• Furnace Output BTU: 123,200 BTU
• Furnace Configuration: Multi-positional (upflow, downflow, horizontal)
• Furnace Blower: Multi 18-Speed Constant Torque (MCT)
• Furnace Ignition: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural gas (field-convertible to propane with optional LP kit)
• Furnace Electrical (Voltage): 115V 1 Phase 60 Hz
• Furnace Max Breaker: 15 Amps
• Furnace Burner Stages: Single stage
• Evaporator Coil Style: Cased A-coil, multi-positional
• Evaporator Coil Cabinet Width: 24.5"
• Evaporator Coil Compatible Refrigerant: R32
• Evaporator Coil Liquid Line Size: 3/8"
• Evaporator Coil Suction Line Size: 3/4"
• AHRI Certificate Number (Furnace): 213146216
• Furnace Exhaust Flue Requirement: Metal flue required (80% AFUE)
• Condenser Dimensions (H x W x D): 32.87" x 29.13" x 29.13"
• Evaporator Coil Dimensions (H x W x D): 27.8" x 24.5" x 21.02"
• Furnace Dimensions (H x W x D): 33 1/3" x 24 1/2" x 29"
• Condenser Weight: 187 lb
• Evaporator Coil Weight: 100 lb
• Furnace Weight: 168 lb
• Maximum CFM: 1965
• Country of Origin: China
• Electrical Phase: 1 Phase
