Aciq AC-I-48AC14 / AC-I-4860ACL-24 / N80MSN1352420A 4 Ton 13.8 SEER2 80% AFUE Furnace and AC System (Multi-Positional)

Product Description

Aciq AC-I-48AC14 / AC-I-4860ACL-24 / N80MSN1352420A is a split heating and cooling system that combines a 4 ton 13.8 SEER2 R32 outdoor condenser, a 132,000 BTU 80% AFUE single-stage gas furnace, and a cased multi-positional evaporator coil. The condenser operates on 208/230V single-phase with a rotary compressor; the furnace uses a multi-speed ECM blower on 115V and direct ignition; the coil includes a factory-installed TXV and supports 3.5–5 ton systems.

• Complete 4 ton split system with AC-I-48AC14 condenser, AC-I-4860ACL-24 cased coil, and N80MSN1352420A furnace
• Condenser: 13.8 SEER2, 48,000 BTU, R32 refrigerant (A2L) with rotary compressor; electrical 208/230V 1 phase
• Furnace: 132,000 BTU input (105,600 BTU output), 80% AFUE, multi-speed ECM blower, 115V, upflow/downflow/horizontal

Product Highlights

4 ton R32 split system with factory TXV cased coil, multi-positional 80% AFUE furnace, and 13.8 SEER2 condenser.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-48AC14 / AC-I-4860ACL-24 / N80MSN1352420A
• Country of Origin: China

Technical Specifications

• Brand: ACiQ
• Model / MPN: AC-I-48AC14 / AC-I-4860ACL-24 / N80MSN1352420A
• System Type: Split heating and cooling system (condenser, cased evaporator coil, gas furnace)
• Tonnage: 4 Ton

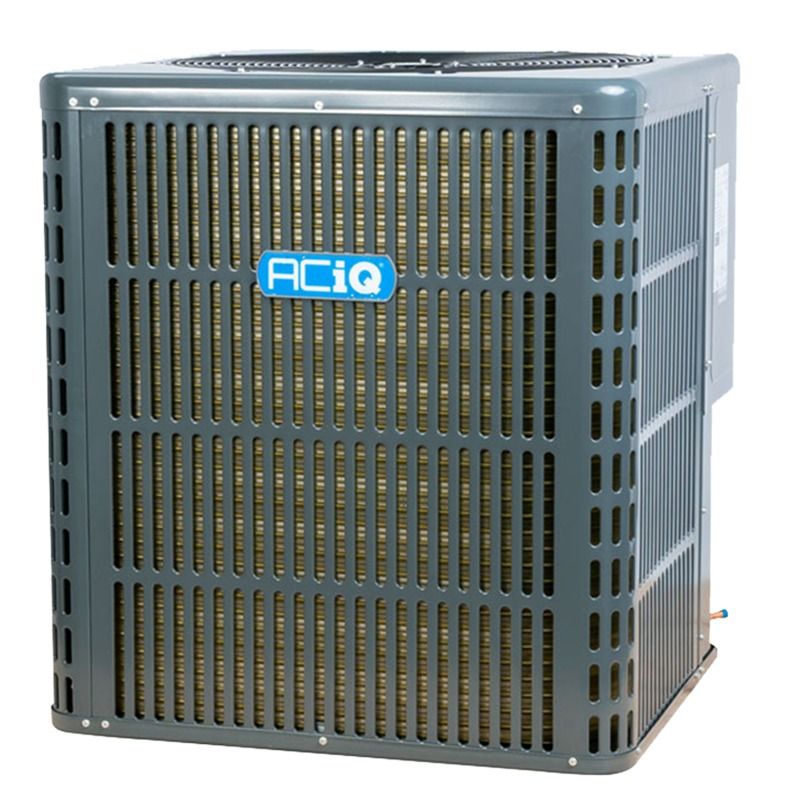

• Condenser Cooling Capacity: 48,000 BTU
• Condenser SEER2: 13.8
• Condenser EER2: 11.7
• Condenser Refrigerant: R32 (A2L)
• Condenser Compressor Type: Rotary
• Condenser Voltage: 208/230V
• Condenser Phase: 1 Phase
• Condenser Max Breaker Size: 40 Amps
• Condenser Min Breaker Size: 27 Amps
• Condenser Dimensions (H x W x D): 32.87" x 29.13" x 29.13" (inches)
• Condenser Weight: 187.00 lbs
• Condenser Sound Level: 60 dBA

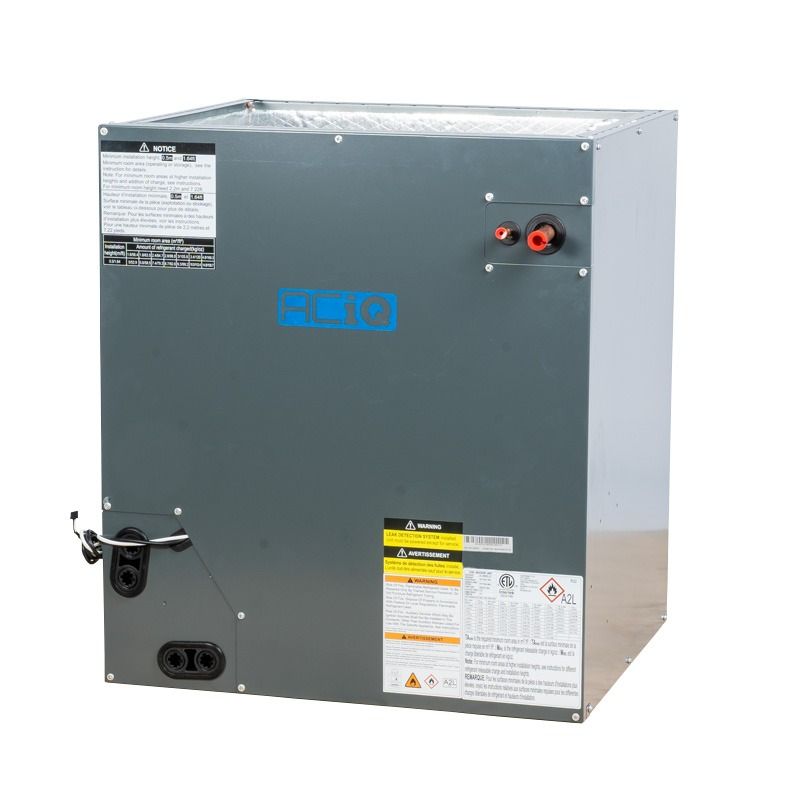

• Evaporator Coil Model: AC-I-4860ACL-24
• Coil Tonnage Range: 3.5 to 5 Ton
• Coil Style: A-coil (cased)
• Coil Material: All-aluminum
• Coil TXV: Factory-installed TXV
• Coil Dimensions (H x W x D): 27.8" x 24.5" x 21.02" (inches)
• Coil Cabinet Width: 24.5" (inches)
• Coil Weight: 100.00 lbs

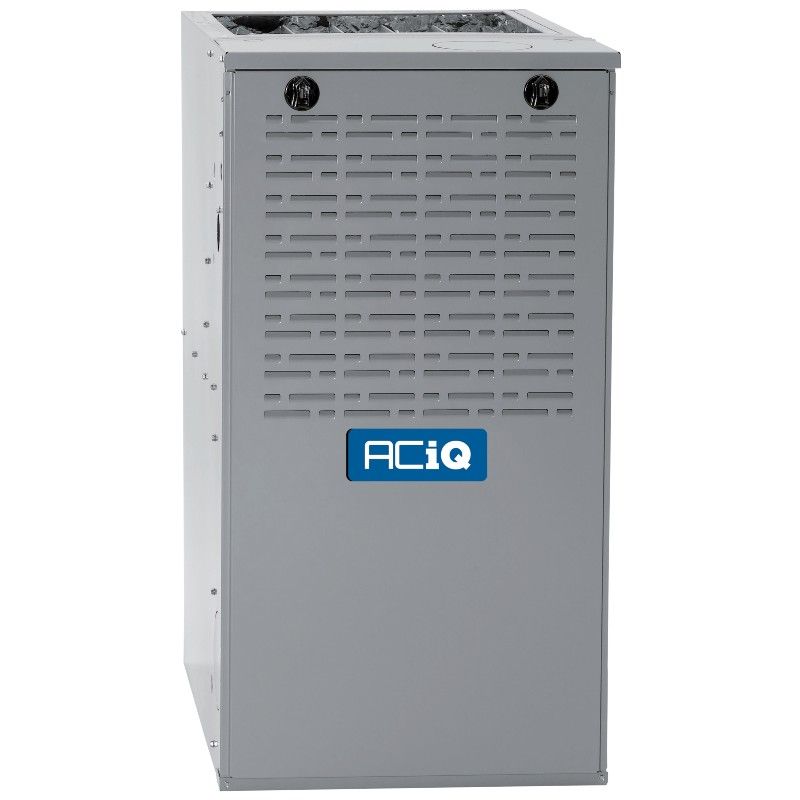

• Furnace Model: N80MSN1352420A
• Furnace Input BTU: 132,000 BTU
• Furnace Output BTU: 105,600 BTU
• Furnace AFUE: 80%
• Furnace Burner Stages: Single stage
• Furnace Blower Motor: Multi-speed ECM
• Furnace Maximum CFM: 1810
• Furnace Horsepower: 0.75 HP
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural Gas (field-convertible to Propane with optional kit)
• Furnace Electrical: 115V 1 Phase 60 Hz
• Furnace Max Breaker Size: 15 Amps
• Furnace Connection: 1/2" NPT
• Furnace Maximum Inlet Pressure: 13.6" wc
• Furnace Dimensions (H x W x D): 33.333" x 24.5" x 29" (inches)
• Furnace Weight: 167.00 lbs
• Configuration / Mounting Type: Upflow / Downflow / Horizontal (multi-positional)
• System Pre-Charged Refrigerant: R32
• Included Accessories / Notes: R32 refrigerant leak mitigation kit included
• AHRI Certification: AHRI certified (components as noted)
• Country of Origin: China
• System Combined Weight: 454.00 lbs
