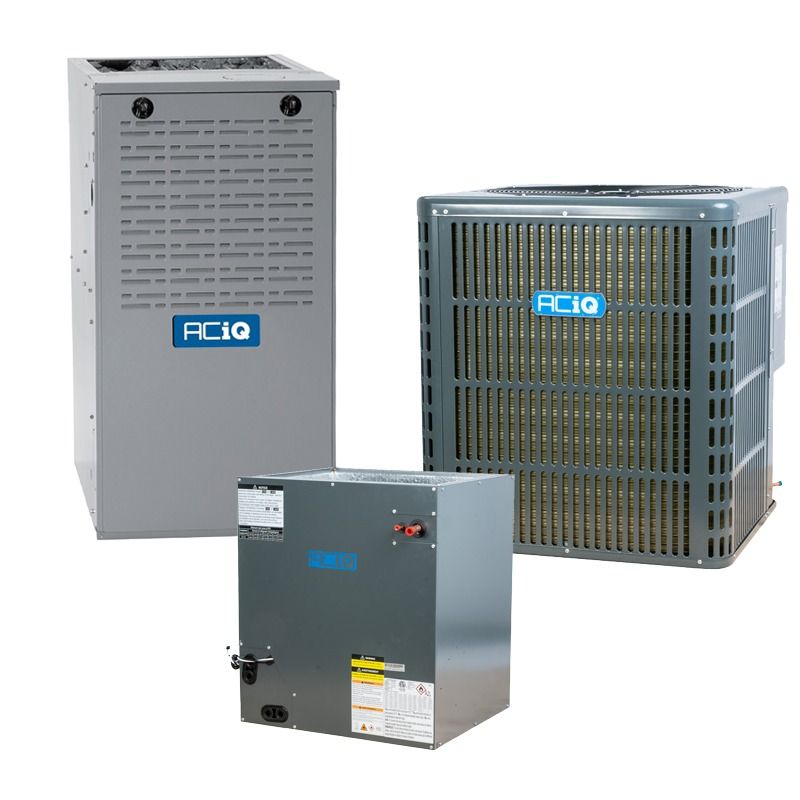

Aciq AC-I-48AC14 AC-I-4860ACL-24 N80MSN1102420A matched 4 ton 13.8 SEER2 80% AFUE 110000 BTU HVAC system (multi-positional)

Product Description

The Aciq AC-I-48AC14 / AC-I-4860ACL-24 / N80MSN1102420A is a matched HVAC system that pairs a 4-ton 13.8 SEER2 R32 outdoor condenser, a 110,000 BTU 80% AFUE multi-positional gas furnace, and a cased evaporator coil with factory-installed TXV. The condenser uses a rotary compressor pre-charged with R32; the furnace includes a multi-speed ECM blower, silicon nitride hot surface ignitor, and is field-convertible to propane.

• Matched components: AC-I-48AC14 condenser (48,000 BTU, 13.8 SEER2) + AC-I-4860ACL-24 cased evaporator coil + N80MSN1102420A furnace (110,000 BTU input, 80% AFUE)
• Condenser pre-charged with R32 refrigerant (91.71 oz) with rotary compressor; electrical 208/230V 1 phase 60 Hz; noise ~60 dBA
• Furnace multi-positional (upflow/downflow/horizontal), multi-speed ECM blower, direct ignition with silicon nitride hot surface ignitor; requires metal flue venting

Product Highlights

Matched 4-ton R32 system with factory TXV coil, 13.8 SEER2 condenser, 110,000 BTU 80% AFUE multi-positional furnace.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-48AC14 / AC-I-4860ACL-24 / N80MSN1102420A

Technical Specifications

• Brand: ACiQ
• Model / MPN: AC-I-48AC14 / AC-I-4860ACL-24 / N80MSN1102420A
• Furnace SKU: N80MSN1102420A
• Furnace Input BTU: 110,000
• Furnace Output BTU: 88,000
• Furnace AFUE: 80%
• Furnace Blower Motor: Multi-speed ECM
• Furnace Maximum CFM: 2005
• Furnace Configuration: Upflow/Downflow/Horizontal (multi-positional)
• Furnace Electrical (Input Voltage): 115V 1 phase 60 Hz
• Furnace Max Breaker Size: 15 Amps
• Furnace Burner Stages: Single
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural gas (field-convertible to propane with optional LP kit)
• Furnace Dimensions (H x W x D): 33 1/3" x 24 1/2" x 29"
• Furnace Weight: 161 lbs
• Furnace AHRI Certificate Number: 213146145
• Condenser SKU: AC-I-48AC14
• Condenser Cooling Capacity: 48,000 BTU (4 Ton)
• Condenser SEER2: 13.8
• Condenser EER2: 11.7
• Condenser Refrigerant: R32 (pre-charged)
• Condenser Refrigerant Charge: 91.71 oz
• Condenser Compressor Type: Rotary
• Condenser Sound Level: ~60 dBA
• Condenser Electrical (Input Voltage): 208/230V 1 phase 60 Hz
• Condenser Max Breaker Size: 40 Amps
• Condenser Min Breaker Size: 27 Amps
• Condenser Dimensions (H x W x D): 32.87" x 29.13" x 29.13"
• Condenser Weight: 187 lbs
• Coil SKU: AC-I-4860ACL-24
• Coil Tonnage Range: 3.5 to 5 Ton
• Coil Style: Cased A-coil, multi-positional
• Coil Refrigerant: R32
• Coil Metering Device: Factory-installed TXV
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 3/4"
• Coil Dimensions (W x H x D): 24.5" x 27.8" x 21.02"
• Coil Weight: 100 lbs
• Required Venting (Furnace): Metal flue venting
• AHRI / Compatibility Note: Condenser must be paired with compatible R32 evaporator coil or air handler; R32 requires refrigerant leakage detection system when paired with this condenser
