Aciq AC-I-48AC14 / AC-I-4860ACL-24 / G96VTN1202422 4 Ton 120,000 BTU Furnace and AC System (Multi-Positional)

Product Description

The ACiQ AC-I-48AC14 / AC-I-4860ACL-24 / G96VTN1202422 is a matched heating and cooling system combining a 4-ton condenser (13.8 SEER2) pre-charged with R32, a 120,000 BTU 96% AFUE two-stage gas furnace with variable-speed blower, and a 24.5 in multi-positional cased evaporator coil with factory-installed TXV. The AHRI-rated system supports upflow, downflow, or horizontal installation and includes specified electrical characteristics.

• Includes 4-ton AC condenser (AC-I-48AC14) pre-charged with R32 and 91.71 oz refrigerant charge; condenser SEER2 13.8, EER2 11.7.
• 120,000 BTU two-stage gas furnace (G96VTN1202422) with 96% AFUE, variable-speed blower, multi-positional cabinet, and plastic/PVC exhaust flue requirement.
• Cased A-coil (AC-I-4860ACL-24) 24.5 in cabinet width, multi-positional with factory-installed TXV; coil compatible with 3.5–5 ton systems.

Product Highlights

Matched 4-ton R32 condenser, 120,000 BTU 96% AFUE two-stage furnace with variable-speed blower, and 24.5 in cased multi-positional coil with factory TXV; AHRI-rated.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-48AC14 / AC-I-4860ACL-24 / G96VTN1202422

Technical Specifications

• Brand: ACiQ
• MPN / Model: AC-I-48AC14 / AC-I-4860ACL-24 / G96VTN1202422
• System type: AC & Furnace System
• System Cooling Capacity: 4 Ton (48,000 BTU)

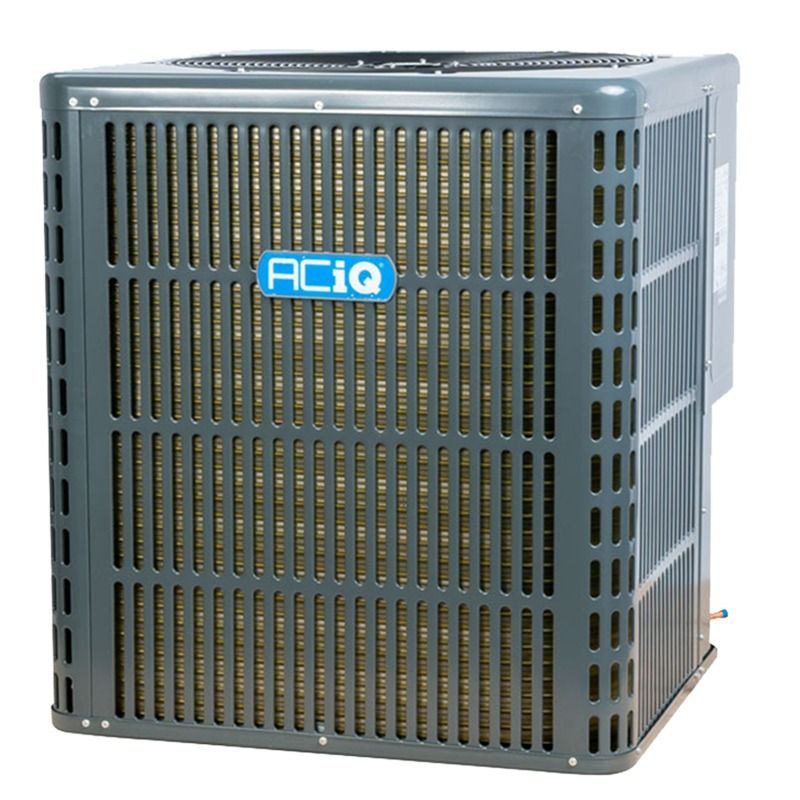

• Condenser Model: AC-I-48AC14
• Condenser SEER2: 13.8
• Condenser EER2: 11.7
• Condenser Refrigerant: R32 (pre-charged)
• Condenser Refrigerant Charge: 91.71 oz
• Condenser Electrical: 208/230V 1 Phase 60 Hz
• Condenser Min Breaker: 27 Amps
• Condenser Max Breaker: 40 Amps
• Condenser Dimensions: 29.13 in W x 32.87 in H x 29.13 in D
• Condenser Decibel Level: 60 dBA (approx.)
• Condenser Compressor Type: Rotary
• Condenser Liquid Valve Size: 3/8"
• Condenser Suction Valve Size: 3/4"
• Condenser Weight: 187.00 lb

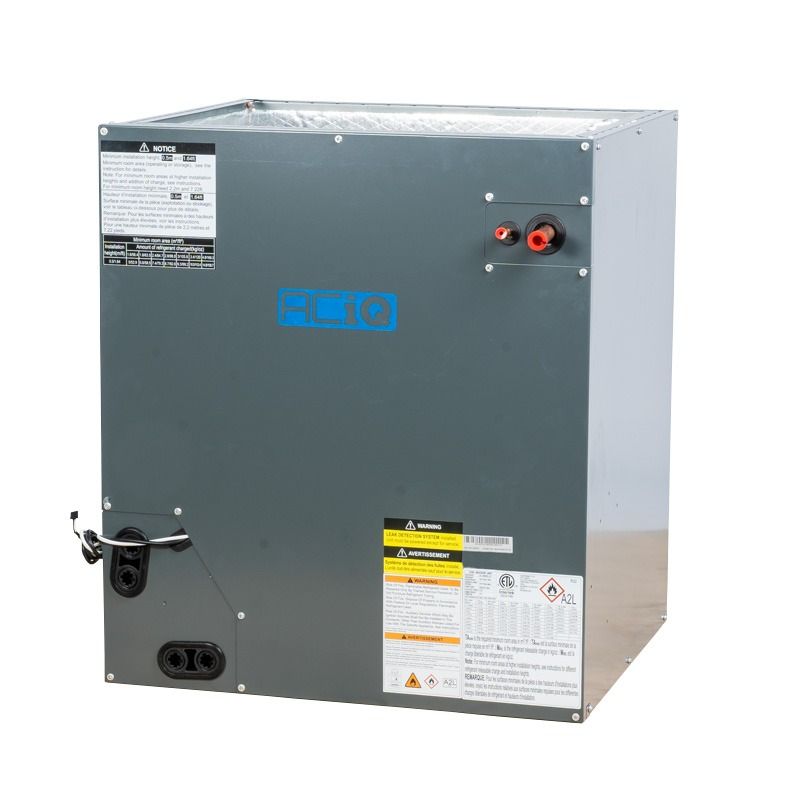

• Evaporator Coil Model: AC-I-4860ACL-24
• Coil Tonnage Range: 3.5 to 5 Ton
• Coil Style: Cased A-Coil, multi-positional, factory-installed TXV
• Coil Dimensions: 24.5 in W x 27.8 in H x 21.02 in D
• Coil Liquid Line: 3/8"
• Coil Suction Line: 3/4"
• Coil Weight: 100.00 lb
• Furnace Model / SKU: G96VTN1202422
• Furnace Heating BTU: 120,000 BTU
• Furnace AFUE: 96%
• Furnace Blower Motor: Variable speed
• Furnace Burner Stages: Two
• Furnace Configuration: Upflow/Downflow/Horizontal (multi-positional)
• Furnace Dimensions: 24.5 in W x 35 in H x 29.5 in D
• Furnace Electrical: 120 V 1 Phase 60 Hz
• Furnace Exhaust Flue Requirement: Plastic / PVC
• Fuel Type: Natural gas (field-convertible to propane with optional LP kit)
• Maximum CFM (Furnace): 2190
• Energy Star: Yes
• AHRI Certificate Number: 213148568
• Equivalent Models: Carrier 59TP6B120V24--22; Tempstar F96VTN1202422A; Bryant 926TB60120V24
