Aciq AC-I-48AC14 / AC-I-4860ACL-24 / G96CTN1202422 4 Ton 13.8 SEER2 96% AFUE Furnace & AC System (Multi-Positional)

Product Description

The AciQ AC-I-48AC14 / AC-I-4860ACL-24 / G96CTN1202422 is a matched 4-ton split HVAC system that pairs a 48,000 BTU R32 condenser (approximately 13.8 SEER2, EER 11.7) with a multi-positional cased evaporator coil and a two-stage 120,000 BTU gas furnace rated 96% AFUE. The system uses a rotary compressor, a variable-speed ECM furnace blower, supports upflow/downflow/horizontal installations, and includes an R32 leak mitigation kit.

• 48,000 BTU condenser pre-charged with R32 refrigerant, rotary compressor, 13.8 SEER2 and 11.7 EER
• Two-stage 120,000 BTU gas furnace with 96% AFUE, variable-speed ECM blower and 2135 maximum CFM
• Cased multi-positional A-coil with factory-installed TXV; condenser charge 91.71 oz; condenser breaker range 27–40 A

Product Highlights

Matched 4-ton R32 split system with multi-positional furnace and coil; rotary compressor.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-48AC14 / AC-I-4860ACL-24 / G96CTN1202422
• Country of Origin: China

Technical Specifications

• Brand: AciQ
• Model / MPN: AC-I-48AC14 / AC-I-4860ACL-24 / G96CTN1202422
• Product Type: Matched split HVAC system

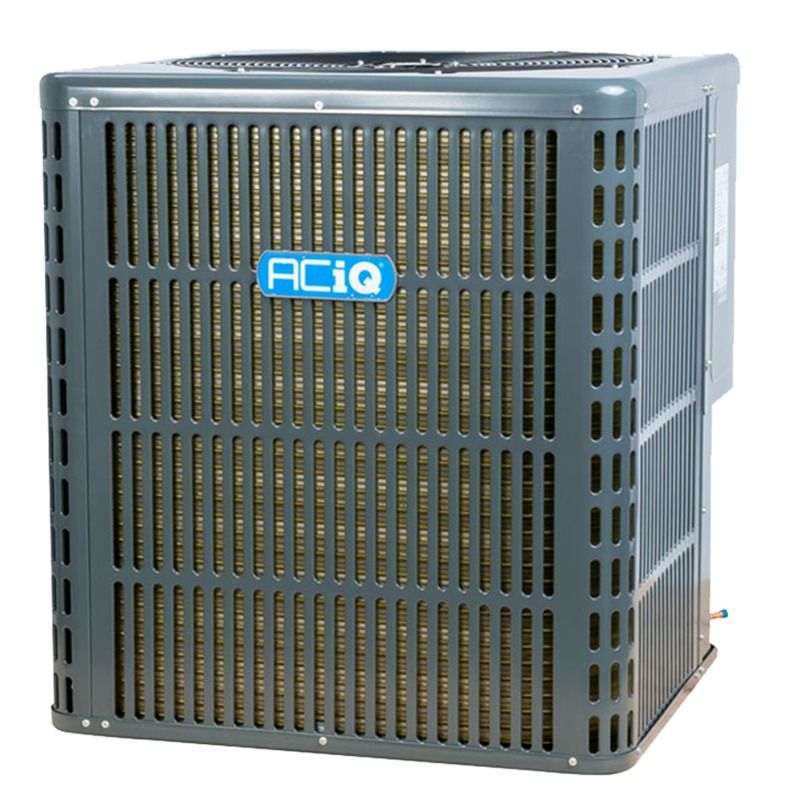

• Cooling Capacity: 48,000 BTU (4 Ton)
• SEER2 Rating: 13.8
• EER2: 11.7
• Refrigerant: R32 (pre-charged)
• Refrigerant Charge: 91.71 oz.
• Compressor Type: Rotary
• Condenser Electrical: 208/230 V, 1 Phase, 60 Hz
• Condenser Max Breaker Size: 40 Amps
• Condenser Min Breaker Size: 27 Amps
• Condenser Dimensions (H x W x D): 32.87" x 29.13" x 29.13"
• Condenser Weight: 187.00 lbs
• Condenser Sound Level: 60 dBA (approx.)
• Condenser Liquid Valve Size: 3/8"
• Condenser Suction Valve Size: 3/4"

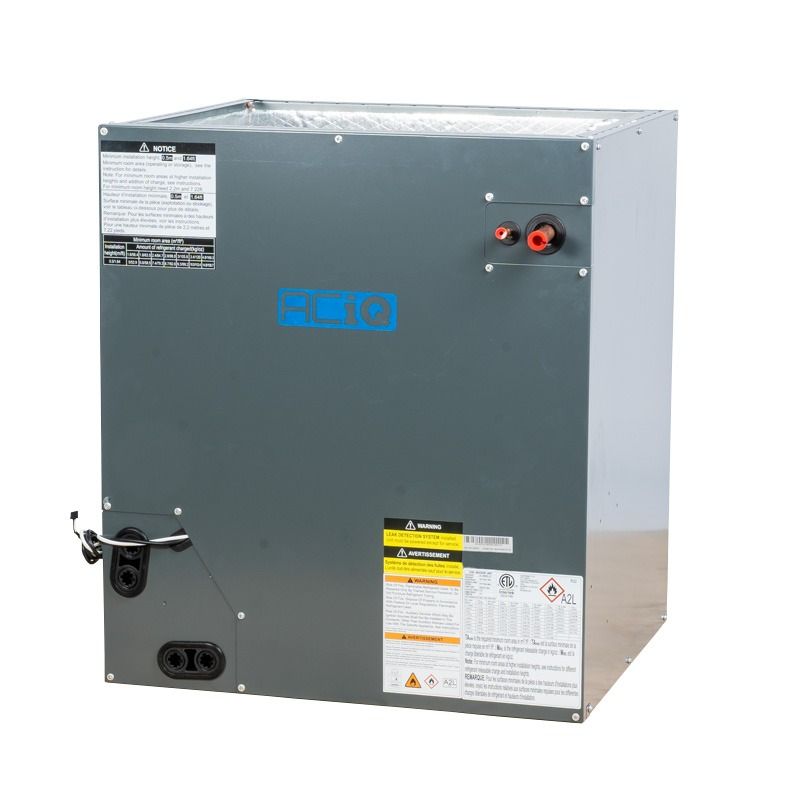

• Coil Type: Cased A-coil, multi-positional
• Coil Compatibility / Tonnage Range: 3.5 to 5 Ton
• Coil Dimensions (H x W x D): 27.8" x 24.5" x 21.02"
• Coil Weight: 100.00 lbs
• Coil Liquid Line: 3/8"
• Coil Suction Line: 3/4"
• Coil Features: Factory-installed TXV

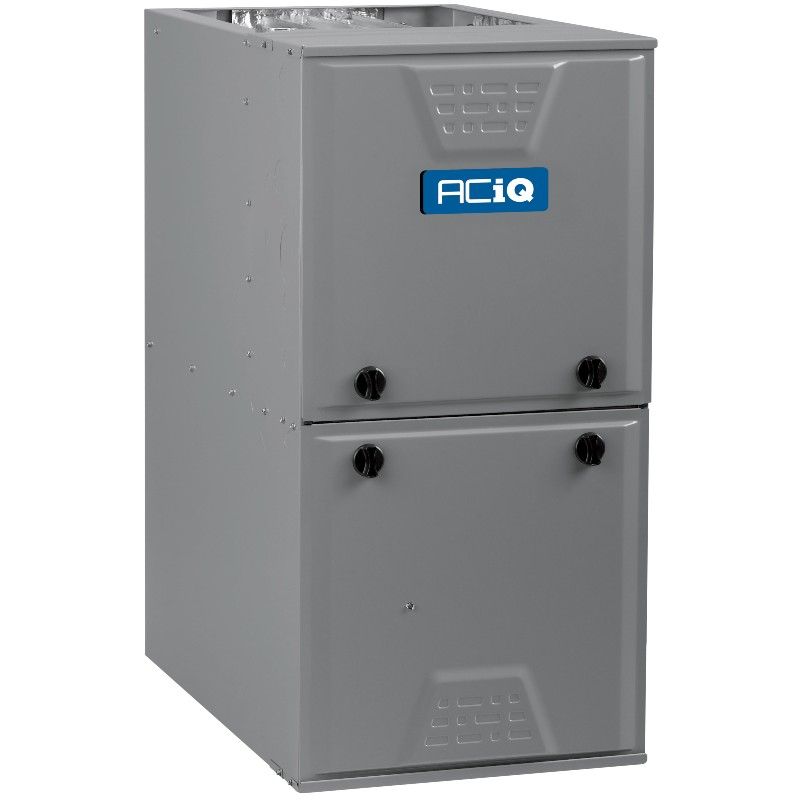

• Furnace Type: Two-stage gas furnace, multi-positional
• Furnace Heating Capacity: 120,000 BTU
• Furnace AFUE: 96%
• Furnace Electrical: 120 V, 1 Phase, 60 Hz
• Furnace Dimensions (H x W x D): 35" x 24.5" x 29.5"
• Furnace Weight: 195.00 lbs
• Furnace Blower Motor: Variable-speed ECM
• Furnace Maximum CFM: 2135
• Furnace Burner Stages: Two
• Fuel Type: Natural Gas (convertible to Propane with kit)
• Exhaust Flue Requirement: Plastic / PVC
• Installation Orientation: Upflow, Downflow, Horizontal (multi-positional)
• AHRI Certificate Number: 213148728
• Maximum Fan Motors / Compressors: Condenser: 1 compressor; Condenser fan: 1 motor
• Region Approved: Northern States, Southern States
• Notes: Includes R32 leak mitigation kit; contains A2L refrigerant requiring compatible indoor equipment
• Country of Origin: China
