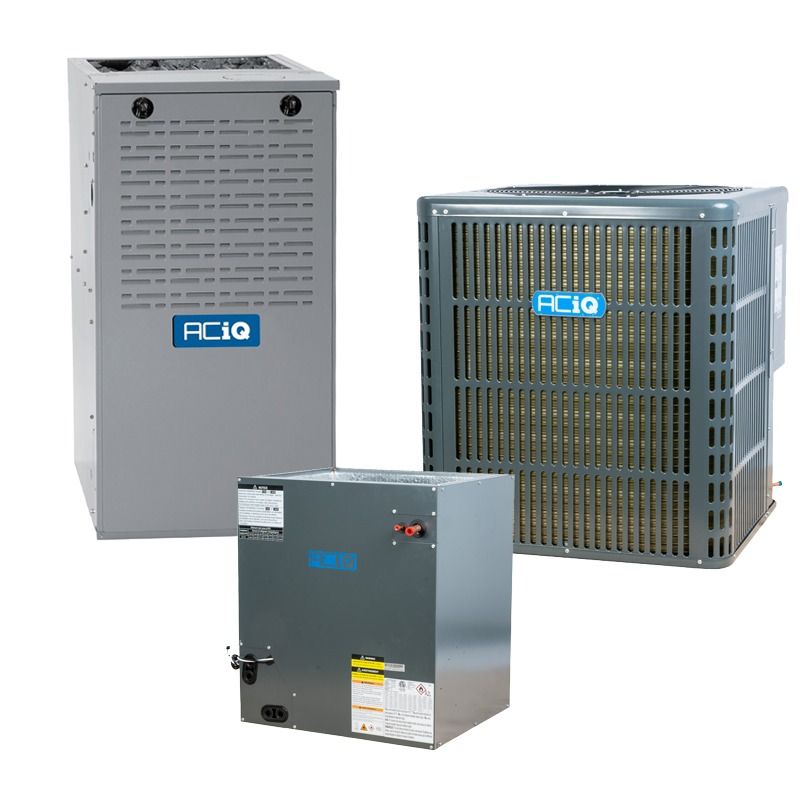

Aciq AC-I-48AC14 / AC-I-4860ACL-21 / N80MSN0902116A 4 Ton 13.8 SEER2 80% AFUE 88,000 BTU Multi-Positional System (21 in Width)

Product Description

Aciq AC-I-48AC14 / AC-I-4860ACL-21 / N80MSN0902116A is a matched 4 ton HVAC system combining a 48,000 BTU R32 condenser, a multi-positional 88,000 BTU 80% AFUE single-stage gas furnace, and a cased evaporator coil with factory TXV. The condenser is rated 13.8 SEER2 and operates on 208/230V 1Ph 60Hz; the furnace uses 115V 1Ph 60Hz and features an 18-speed constant torque blower for airflow control. System supports upflow, downflow, or horizontal installation.

• Condenser: 4 ton (48,000 BTU), 13.8 SEER2, 11.7 EER2, R32 refrigerant, rotary compressor, ~60 dBA, 91.71 oz charge, 208/230V 1Ph 60Hz
• Furnace: 88,000 BTU, 80% AFUE, single-stage burner, direct ignition with silicon nitride hot surface ignitor, multi 18-speed constant torque blower, 115V 1Ph 60Hz, max breaker 15 Amps
• Evaporator coil: cased A-coil with factory TXV, 3.5–5 ton capacity, liquid line 3/8 in, suction line 3/4 in, compatible with R32

Product Highlights

Matched three-piece system for upflow/downflow/horizontal installation; AHRI-rated when paired with compatible indoor equipment.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-48AC14 / AC-I-4860ACL-21 / N80MSN0902116A

Technical Specifications

• Brand: Aciq
• Manufacturer part number: AC-I-48AC14 / AC-I-4860ACL-21 / N80MSN0902116A
• System type: Matched furnace, condenser, evaporator coil system
• Furnace MPN: N80MSN0902116A
• Furnace weight: 137 lbs
• Furnace AHRI certificate number: 213146210
• Exhaust flue requirement: Metal
• Furnace AFUE: 80%
• Furnace heating capacity: 88,000 BTU
• Furnace blower motor: Multi 18-speed constant torque
• Furnace maximum CFM: 1445
• Furnace configuration: Upflow/Downflow/Horizontal (multi-positional)
• Furnace input voltage: 115V 1 Phase 60 Hz
• Furnace max breaker size: 15 Amps
• Furnace burner stages: Single
• Furnace ignition type: Direct ignition with silicon nitride hot surface ignitor
• Furnace fuel type: Natural gas (field-convertible to propane with optional LP kit)
• Furnace dimensions: 33.33 in H x 21.00 in W x 29.00 in D
• Condenser MPN: AC-I-48AC14
• Condenser refrigerant charge: 91.71 oz
• Condenser weight: 187 lbs
• Condenser cooling capacity: 48,000 BTU
• Condenser noise level: Approximately 60 dBA
• Condenser refrigerant: R32 (A2L)
• Condenser SEER2: 13.8
• Condenser EER2: 11.7
• Condenser stages: Single stage
• Condenser compressor type: Rotary
• Condenser liquid valve size: 3/8 in
• Condenser suction valve size: 3/4 in
• Condenser input voltage: 208/230V 1 Phase 60 Hz
• Condenser max breaker size: 40 Amps
• Condenser min breaker size: 27 Amps
• Condenser tonnage: 4 Ton
• Condenser dimensions: 32.87 in H x 29.13 in W x 29.13 in D
• Evaporator coil MPN: AC-I-4860ACL-21
• Coil weight: 87 lbs
• Coil refrigerant: R32 (A2L)
• Coil liquid line: 3/8 in
• Coil suction line: 3/4 in
• Coil tonnage range: 3.5 to 5 Ton
• Coil style: A-coil (cased) with factory TXV
• Coil dimensions: 27.80 in H x 21.00 in W x 21.02 in D
• AHRI / certification notes: System combinations are AHRI-rated when matched; see individual AHRI certificates
• Features: Matched three-piece system; pre-charged condenser; factory-installed TXV; multi-positional furnace and coil; field-convertible furnace to propane
