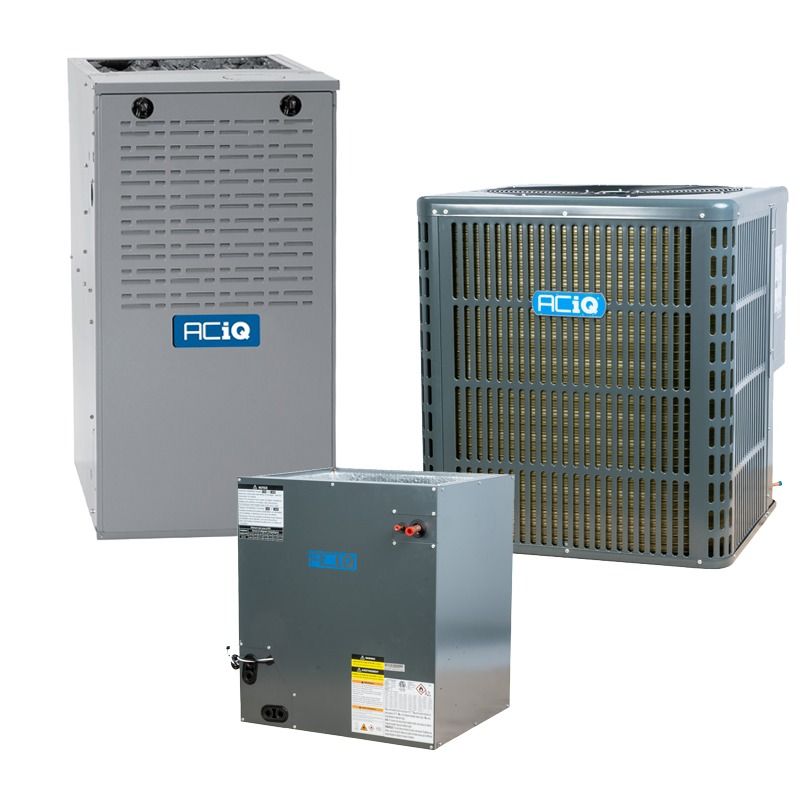

Aciq AC-I-48AC14 / AC-I-4860ACL-21 / N80MSN0702116A 4 Ton 13.8 SEER2 66,000 BTU Furnace and AC System (Multi-Positional)

Product Description

The ACiQ AC-I-48AC14 / AC-I-4860ACL-21 / N80MSN0702116A is a matched central HVAC system comprising a 4 ton 13.8 SEER2 R32 outdoor condenser, a 66,000 BTU 80% AFUE multi-positional furnace, and a 21-inch cased evaporator coil rated for 3.5–5 ton. The package is pre-charged for R32 with a leak mitigation kit and is designed for 208/230V condenser and 115V furnace electrical connections with professional installation and system matching recommended.

• Condenser: 48,000 BTU, 13.8 SEER2, R32 refrigerant, 208/230V 1 phase, ~60 dBA, 91.71 oz charge
• Furnace: 66,000 BTU input, 80% AFUE, multi 18-speed constant torque ECM blower, direct ignition hot surface ignitor, upflow/downflow/horizontal (multi-positional)
• Evaporator coil: 21-inch cased A-coil, compatible with R32, 3.5–5 ton range; matched for use with the included condenser and furnace

Product Highlights

Matched 4 ton R32 condenser, 66,000 BTU 80% AFUE multi-positional furnace, and 21-inch cased evaporator coil; pre-charged R32 with leak mitigation; specified electrical requirements.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-48AC14 / AC-I-4860ACL-21 / N80MSN0702116A

Technical Specifications

• Brand: ACiQ
• Model / MPN: AC-I-48AC14 / AC-I-4860ACL-21 / N80MSN0702116A
• Product Type: Matched central HVAC system (condenser, furnace, cased evaporator coil)
• Package Includes: 4 Ton 13.8 SEER2 condenser (AC-I-48AC14), 66,000 BTU 80% AFUE furnace (N80MSN0702116A), 21" cased evaporator coil (AC-I-4860ACL-21)
• Cooling Capacity: 48,000 BTU
• SEER2: 13.8
• EER2: 11.7
• Refrigerant: R32 (A2L)
• Refrigerant Charge: 91.71 oz
• Condenser Compressor Type: Rotary
• Condenser Sound Level: 60 dBA (approx.)
• Condenser Electrical (Input Voltage): 208/230V 1 Phase 60 Hz
• Condenser Breaker Requirement: 27 Amps min / 40 Amps max
• Condenser Dimensions (H x W x D): 32.87" x 29.13" x 29.13"
• Condenser Weight: 187 lbs
• Furnace Input BTU: 66,000
• Furnace Output BTU (approx.): 52,800
• Furnace AFUE: 80%
• Furnace Electrical (Input Voltage): 115V 1 Phase 60 Hz
• Furnace Max Breaker Size: 15 Amps
• Furnace Blower Motor: Multi 18-Speed Constant Torque ECM
• Furnace Maximum CFM: 1545
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Burner Stages: Single
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural Gas (field-convertible to Propane with optional LP kit)
• Furnace Dimensions (H x W x D): 33.25" x 21" x 29"
• Furnace Weight: 142 lbs
• Evaporator Coil SKU: AC-I-4860ACL-21
• Coil Type: A-Coil (cased)
• Coil Tonnage Range: 3.5 Ton to 5 Ton
• Coil Dimensions (H x W x D): 27.80" x 21" x 21.02"
• Coil Weight: 87 lbs
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 3/4"
• Coil Refrigerant Compatibility: R32
• Requirements: Metal flue venting required for 80% AFUE furnace; compatible indoor equipment and leak detection required for R32 condenser
• AHRI Certificate Number: 213146137
• Product ID: 225612
