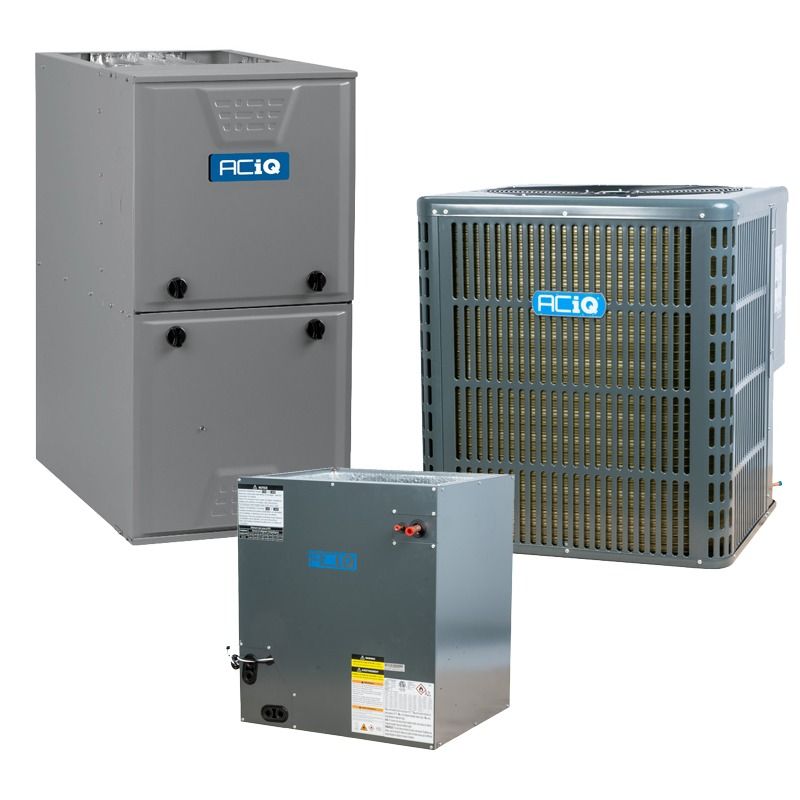

Aciq AC-I-48AC14 / AC-I-4860ACL-21 / G96VTN0802120 4 Ton 14 SEER2 96% AFUE 80,000 BTU Furnace & AC System (21 inches Cabinet) G96VTN0802120

Product Description

ACiQ AC-I-48AC14 / AC-I-4860ACL-21 / G96VTN0802120 is a matched split HVAC system combining a 4 ton condenser pre-charged with R32 refrigerant, a multi-positional 80,000 BTU 96% AFUE variable-speed two-stage gas furnace, and a 21-inch multi-positional cased evaporator coil. The condenser requires 208/230V single-phase power and uses a rotary compressor; the furnace operates on 120V and delivers up to 2005 CFM via a variable-speed ECM blower.

• Condenser: 48,000 BTU (4 ton), 13.8 SEER2, EER2 11.7, R32 refrigerant, rotary compressor, 208/230V 1 phase, max breaker 40A, ~60 dBA
• Furnace: 80,000 BTU input, 96% AFUE, two-stage burners, variable-speed ECM blower, multi-positional (upflow/downflow/horizontal), 120V 1 phase, up to 2005 CFM
• Evaporator coil: 21" cabinet width, compatible with R32, liquid line 3/8", suction line 3/4"; AHRI-matched system and includes R32 leak mitigation kit

Product Highlights

Matched 4-ton R32 split system with multi-positional 80,000 BTU 96% AFUE furnace, 21" coil, rotary compressor condenser (13.8 SEER2)

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-48AC14 / AC-I-4860ACL-21 / G96VTN0802120
• Country of Origin: China

Technical Specifications

• Brand: ACiQ
• Model / MPN: AC-I-48AC14 / AC-I-4860ACL-21 / G96VTN0802120
• System components: AC-I-48AC14 condenser, AC-I-4860ACL-21 evaporator coil, G96VTN0802120 furnace
• Cooling capacity: 48,000 BTU (4 Ton)
• Condenser SEER2: 13.8 (bundle text also lists up to 14.3 SEER2)
• Condenser EER2: 11.7
• Refrigerant: R32 (pre-charged)
• Compressor type: Rotary
• Condenser electrical: 208/230V, 1 Phase, 60 Hz
• Condenser max breaker: 40 Amps
• Condenser min breaker: 27 Amps
• Condenser noise level: Approximately 60 dBA
• Furnace heating input: 80,000 BTU
• Furnace AFUE: 96%
• Furnace blower motor: Variable speed ECM
• Furnace burner stages: Two-stage
• Furnace configuration: Multi-positional (upflow, downflow, horizontal)
• Furnace fuel type: Natural gas (field-convertible to propane with optional LP kit)
• Furnace electrical: 120V, 1 Phase, 60 Hz
• Furnace maximum CFM: 2005
• Furnace dimensions (H x W x D): 35" x 21" x 29-1/2"
• Evaporator coil tonnage range: 3.5 to 5 Ton
• Evaporator coil cabinet width: 21"
• Evaporator coil liquid line size: 3/8"
• Evaporator coil suction line size: 3/4"
• AHRI certificate number: 213148556
• Additional notes: System is AHRI-rated as matched combinations; includes R32 refrigerant leak mitigation kit; condenser must be paired with compatible indoor equipment
