Aciq AC-I-48AC14 / AC-I-4860ACL-21 / G96CTN1002122 4 Ton 14 SEER2 96% AFUE 100,000 BTU Multi-positional System

Product Description

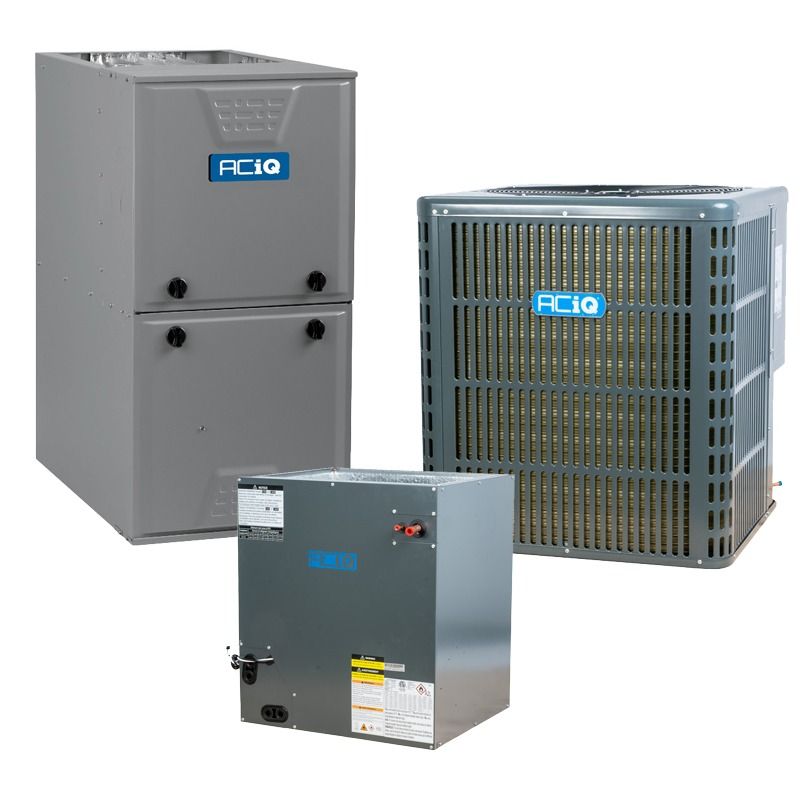

The Aciq AC-I-48AC14 / AC-I-4860ACL-21 / G96CTN1002122 is a matched 4 ton split HVAC system that pairs a 48,000 BTU R32 condenser with a 100,000 BTU 96% AFUE two-stage multi-positional gas furnace and a 21-inch cased evaporator coil. The system supports upflow, downflow, and horizontal installation, uses an ECM variable-speed blower, and is pre-charged with R32 refrigerant with a leak mitigation kit.

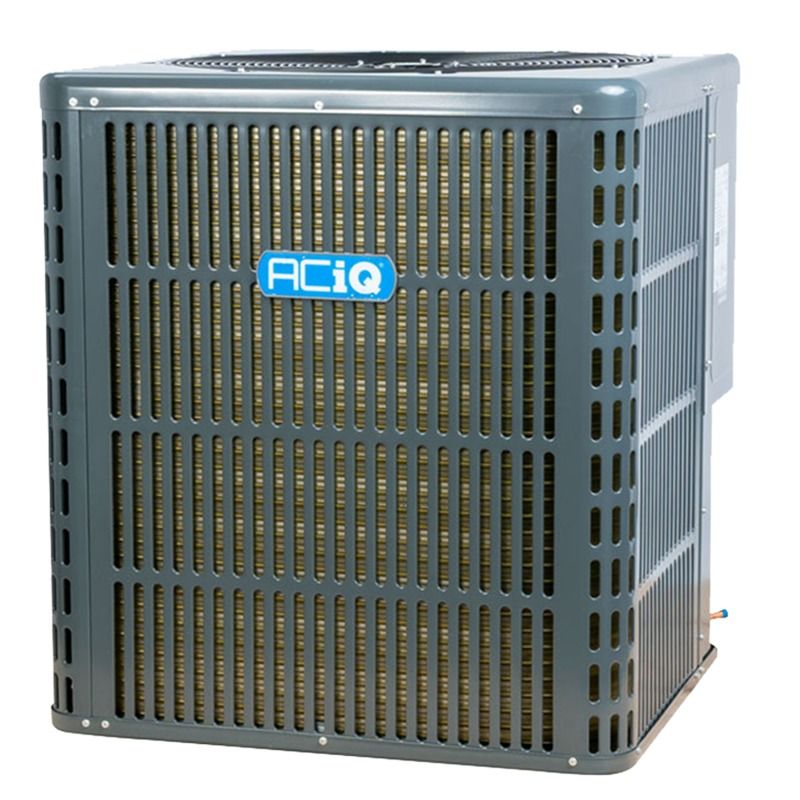

• Includes 48,000 BTU condenser (R32) with 13.8 SEER2, 208/230V 1ph electrical, and factory refrigerant charge of 91.71 oz.

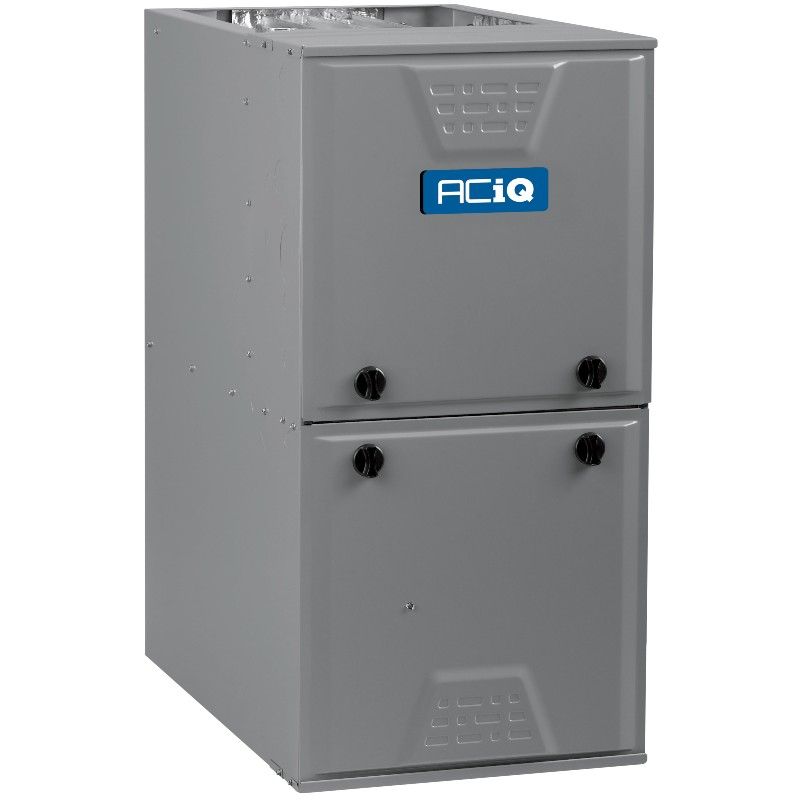

• 100,000 BTU two-stage furnace with 96% AFUE, variable-speed ECM blower, 120V electrical, and multi-positional (upflow/downflow/horizontal) configuration.

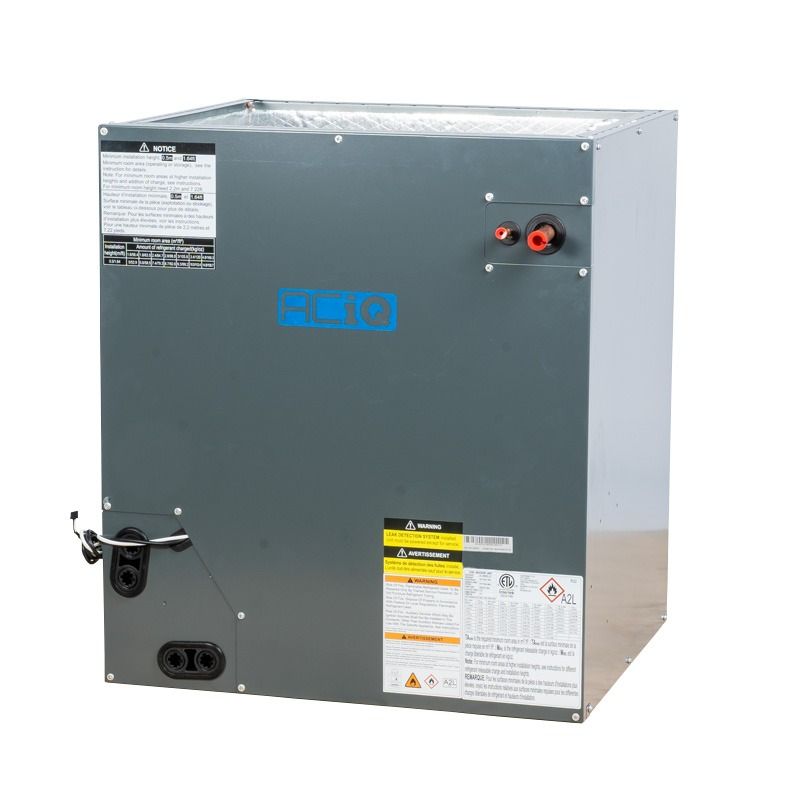

• Cased A-coil (AC-I-4860ACL-21) 21 inch cabinet, factory-installed TXV, compatible with 3.5 to 5 ton systems and R32 refrigerant.

Product Highlights

Matched 4 ton R32 split system with 48,000 BTU condenser, 100,000 BTU 96% AFUE two-stage multi-positional furnace, and 21" cased A-coil; pre-charged R32 and leak mitigation kit.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-48AC14 / AC-I-4860ACL-21 / G96CTN1002122
• Country of Origin: China

Technical Specifications

• Brand: Aciq
• Model / MPN: AC-I-48AC14 / AC-I-4860ACL-21 / G96CTN1002122
• System Tonnage: 4 Ton
• Cooling Capacity: 48,000 BTU
• Heating Capacity: 100,000 BTU
• SEER2: 13.8
• EER2: 11.7
• Refrigerant: R32 (A2L)
• Refrigerant Charge: 91.71 oz
• Condenser Electrical: 208/230V 1 Phase 60 Hz
• Condenser Breaker Size Min: 27 Amps
• Condenser Breaker Size Max: 40 Amps
• Condenser Dimensions (H x W x D): 32.87" x 29.13" x 29.13"
• Condenser Weight: 187 lbs
• Condenser Compressor Type: Rotary
• Condenser Sound Level: 60 dBA (approx)
• Coil SKU: AC-I-4860ACL-21
• Coil Type: Cased A-coil, multi-positional
• Coil Tonnage Range: 3.5 to 5 Ton
• Coil Cabinet Width: 21"
• Coil Dimensions (H x W x D): 27.80" x 21" x 21.02"
• Coil Weight: 87 lbs
• Coil Refrigerant: R32
• Coil Feature: Factory-installed TXV
• Furnace SKU: G96CTN1002122
• AFUE: 96%
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Blower Motor: Variable speed ECM
• Furnace Burner Stages: Two-stage
• Furnace Fuel Type: Natural Gas (convertible to Propane with kit)
• Furnace Electrical: 120 V 1 Phase 60 Hz
• Furnace Dimensions (H x W x D): 35" x 21" x 29.5"
• Furnace Weight: 179 lbs
• Exhaust Flue Requirement: Plastic / PVC
• Maximum CFM: 2160
• AHRI Certificate Number: 213148727
• Number of Cooling Stages: Single stage
• Number of Heat Stages: Two
• Power Phase: 1 Phase
• Country of Origin: China
