Aciq AC-I-48AC14 / AC-I-4860ACL-21 / G96CTN0802120 4 Ton 14 SEER2 96% AFUE 80,000 BTU Furnace & AC System (Multi-Positional)

Product Description

ACiQ AC-I-48AC14 / AC-I-4860ACL-21 / G96CTN0802120 is a matched 4-ton HVAC system comprising a 48,000 BTU 13.8 SEER2 R32 outdoor condenser, a 21" cased A-coil for 3.5–5 ton applications, and an 80,000 BTU two-stage 96% AFUE gas furnace. The condenser is pre-charged with 91.71 oz R32 and operates near 60 dBA with a rotary compressor; the furnace includes a variable-speed ECM blower and multi-positional installation. The coil has a factory-installed TXV and all-aluminum construction.

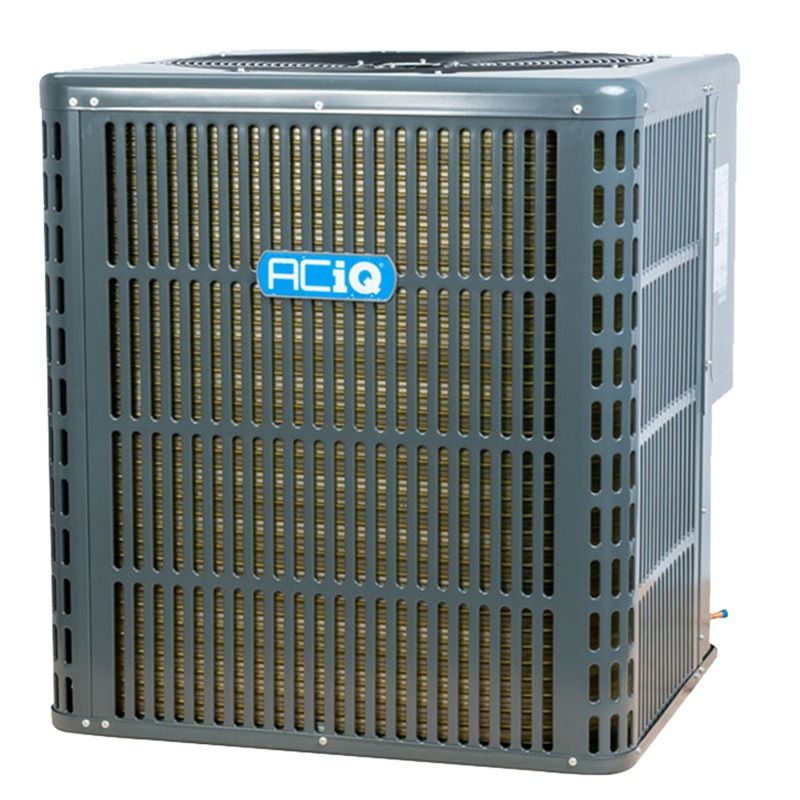

• Condenser AC-I-48AC14: 48,000 BTU (4 Ton), 13.8 SEER2, rotary compressor, 91.71 oz R32, 208/230 V 1 Phase 60 Hz, ~60 dBA
• Furnace G96CTN0802120: 80,000 BTU, 96% AFUE, two-stage burner, variable-speed ECM blower, 120 V 1 Phase 60 Hz, multi-positional

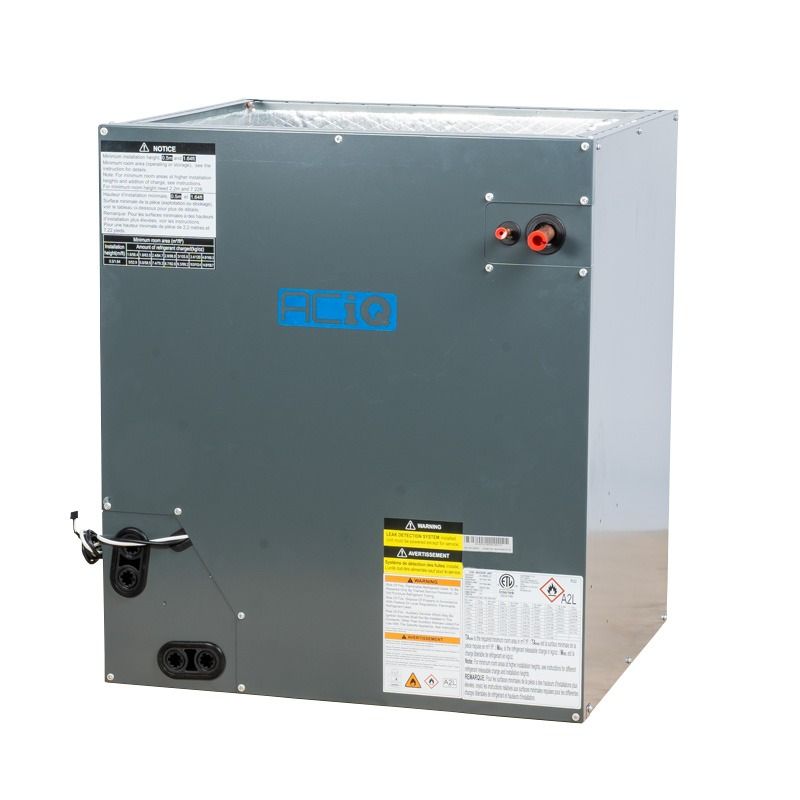

• Coil AC-I-4860ACL-21: 21" cased A-coil for 3.5–5 Ton, all-aluminum, factory-installed TXV, 3/8" liquid and 3/4" suction line sizes

Product Highlights

Matched 4-ton R32 system with 13.8 SEER2 condenser, 96% AFUE two-stage furnace, 21" cased A-coil; pre-charged and multi-positional.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-48AC14 / AC-I-4860ACL-21 / G96CTN0802120

Technical Specifications

• Brand: ACiQ
• MPN: AC-I-48AC14 / AC-I-4860ACL-21 / G96CTN0802120
• System type: Matched condenser, cased evaporator coil, and gas furnace
• Refrigerant: R32
• Condenser Model: AC-I-48AC14
• Condenser Cooling Capacity: 48,000 BTU (4 Ton)
• Condenser SEER2: 13.8
• Condenser EER2: 11.7
• Condenser Compressor Type: Rotary
• Condenser Refrigerant Charge: 91.71 oz
• Condenser Noise Level: 60 dBA
• Condenser Stages: Single Stage
• Condenser Electrical: 208/230 V 1 Phase 60 Hz
• Condenser Min Breaker Size: 27 Amps
• Condenser Max Breaker Size: 40 Amps
• Condenser Liquid Line Size: 3/8"
• Condenser Suction Line Size: 3/4"
• Condenser Dimensions (H x W x D): 32.87" x 29.13" x 29.13"
• Condenser Weight: 187 lbs
• Coil Model: AC-I-4860ACL-21
• Coil Type: Cased A-coil (evaporator)
• Coil Tonnage Range: 3.5 to 5 Ton
• Coil Dimensions (H x W x D): 27.80" x 21" x 21.02"
• Coil Width: 21"
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 3/4"
• Coil Refrigerant: R32
• Coil TXV: Factory-installed
• Coil Weight: 87 lbs
• Furnace Model: G96CTN0802120
• Furnace Heating Capacity: 80,000 BTU
• Furnace AFUE: 96%
• Furnace Burner Stages: Two
• Furnace Blower Motor: Variable Speed ECM
• Furnace Maximum CFM: 1945
• Furnace Fuel Type: Natural Gas (convertible to Propane)
• Furnace Electrical: 120 V 1 Phase 60 Hz
• Furnace Configuration: Upflow/Downflow/Horizontal (multi-positional)
• Furnace Dimensions (H x W x D): 35" x 21" x 29-1/2"
• Furnace Weight: 152.5 lbs
• Furnace Heat Exchanger: RPJ aluminized steel
• Required Electrical for System: Condenser 208/230 V 1 Phase 60 Hz; Furnace 120 V 1 Phase 60 Hz
• AHRI Certificate Number (Furnace): 213148726
• Notes / Requirements: Pre-charged with R32 refrigerant; R32 (A2L) requires refrigerant leak detection system and compliance with applicable codes; R32 leak mitigation kit included
