Aciq AC-I-48AC14 / AC-I-4860ACL-21 / G80CTL0702120 4 Ton 14 SEER2 60,000 BTU AC & Furnace System (Multi-positional)

Product Description

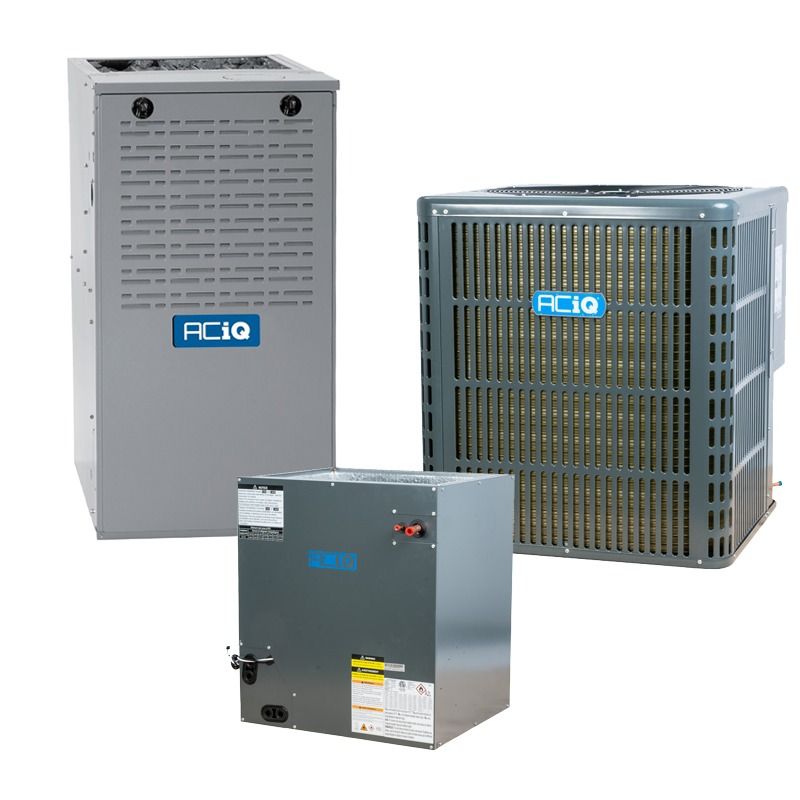

Aciq AC-I-48AC14 / AC-I-4860ACL-21 / G80CTL0702120 is a matched 4-ton packaged system combining a 48,000 BTU condenser, a cased multi-positional evaporator coil, and a two-stage 66,000 BTU gas furnace (approx. 53,000 BTU output at 80% AFUE). The system uses R32 refrigerant (pre-charged), supports upflow/downflow/horizontal installations, and includes variable-speed ECM blower technology and two-stage furnace modulation for conditioned-air distribution in medium to large homes.

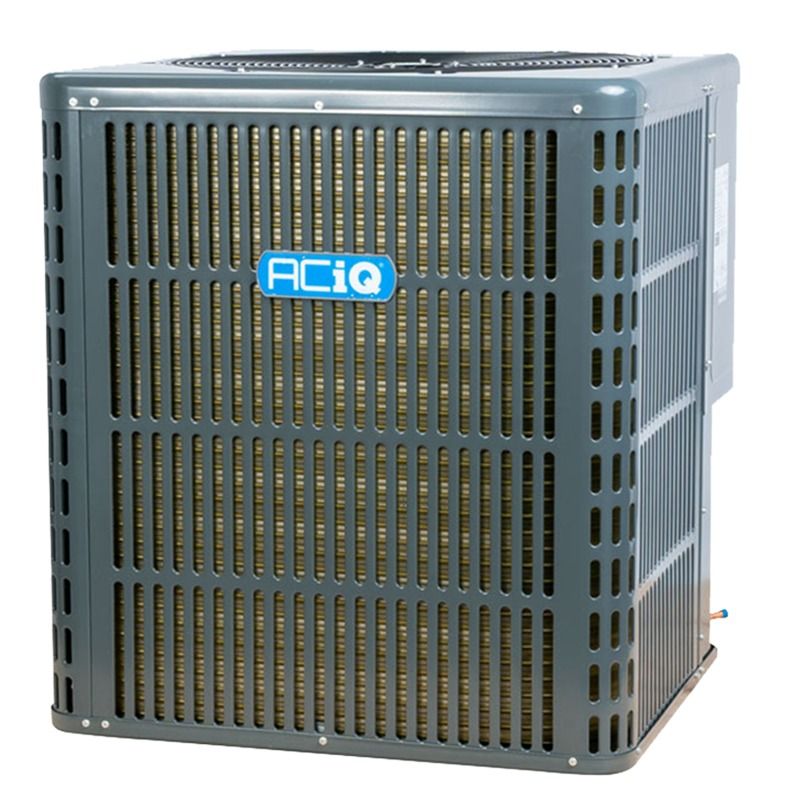

• Condenser: 48,000 BTU cooling, ~13.8 SEER2, R32 refrigerant, pre-charged (91.71 oz), 208/230V 1Ø

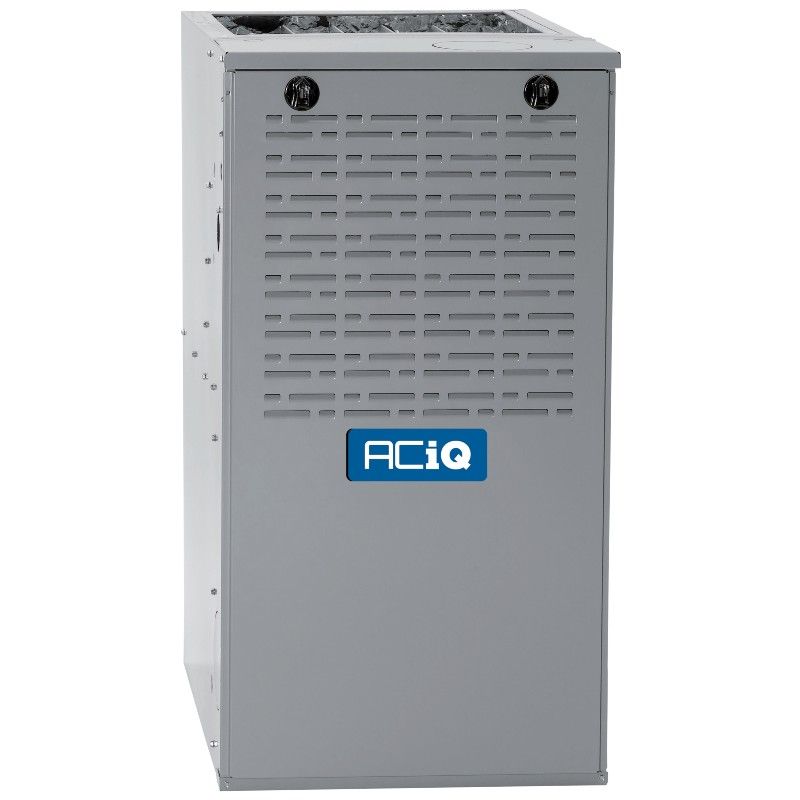

• Furnace: 66,000 BTU input (approx. 53,000 BTU output), 80% AFUE, two-stage burner, variable-speed ECM blower, 115V

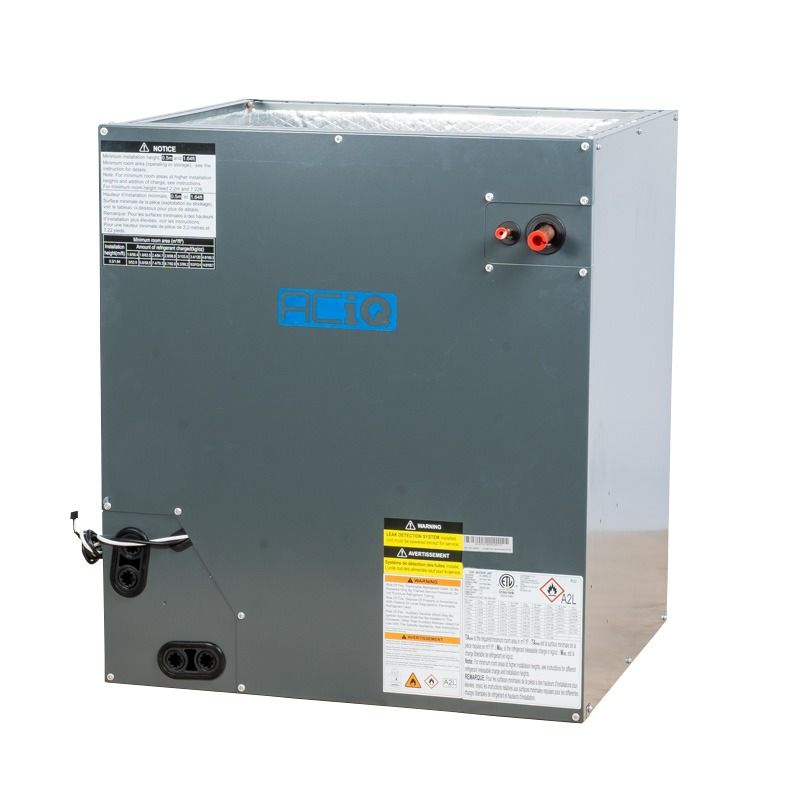

• Evaporator coil: cased A-coil (21 in cabinet), compatible with R32, factory-installed TXV, multi-positional

Product Highlights

Matched 4-ton R32 system with multi-positional furnace/coil and variable-speed ECM blower

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-48AC14 / AC-I-4860ACL-21 / G80CTL0702120

Technical Specifications

• Brand: ACiQ
• Model / MPN: AC-I-48AC14 / AC-I-4860ACL-21 / G80CTL0702120
• Product ID: 225611
• System type: Packaged condenser, evaporator coil and gas furnace system
• Bundle Components: AC-I-48AC14 condenser; AC-I-4860ACL-21 cased evaporator coil; G80CTL0702120 gas furnace
• Cooling Capacity: 48,000 BTU (4 Ton)
• SEER2 Rating: 13.8
• EER2 Rating: 11.7
• Refrigerant: R32 (A2L)
• Refrigerant Charge: 91.71 oz
• Compressor Type: Rotary
• Condenser Stages: Single stage
• Condenser Input Voltage: 208/230V 1 Phase 60 Hz
• Condenser Max Breaker: 40 Amps
• Condenser Min Breaker: 27 Amps
• Condenser Decibel Level: 60 dBA (outdoor)
• Condenser Dimensions (H x W x D): 32.87 in x 29.13 in x 29.13 in
• Condenser Weight: 187 lbs
• Furnace SKU: G80CTL0702120
• Heating Input: 66,000 BTU
• Heating Output (approx.): 53,000 BTU
• AFUE: 80%
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Blower Motor: Variable-speed ECM (communicating)
• Furnace Maximum CFM: 2150
• Furnace Burner Stages: Two-stage
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Fuel Type: Natural gas (field-convertible to propane with optional LP kit)
• Furnace Input Voltage: 115V 1 Phase 60 Hz
• Furnace Dimensions (H x W x D): 33.33 in x 21.00 in x 29.00 in
• Furnace Weight: 146 lbs
• Furnace Exhaust Flue Requirement: Metal flue venting required (80% AFUE)
• Evaporator Coil SKU: AC-I-4860ACL-21
• Coil Tonnage Range: 3.5 to 5 Ton
• Coil Style: Cased A-coil, 21 in cabinet width, multi-positional
• Coil Refrigerant: R32
• Coil Liquid Line Size: 3/8 in
• Coil Suction Line Size: 3/4 in
• Coil Dimensions (H x W x D): 27.80 in x 21.00 in x 21.02 in
• Coil Weight: 87 lbs
• AHRI Certificate Number (Furnace): 213148662
• Certifications / Compliance: AHRI certified (coil); California Low NOx compliant (furnace)
• Notes on refrigerant safety: Contains R32 (A2L) refrigerant — requires leak mitigation kit and pairing with compatible R32 coil per manufacturer guidance
