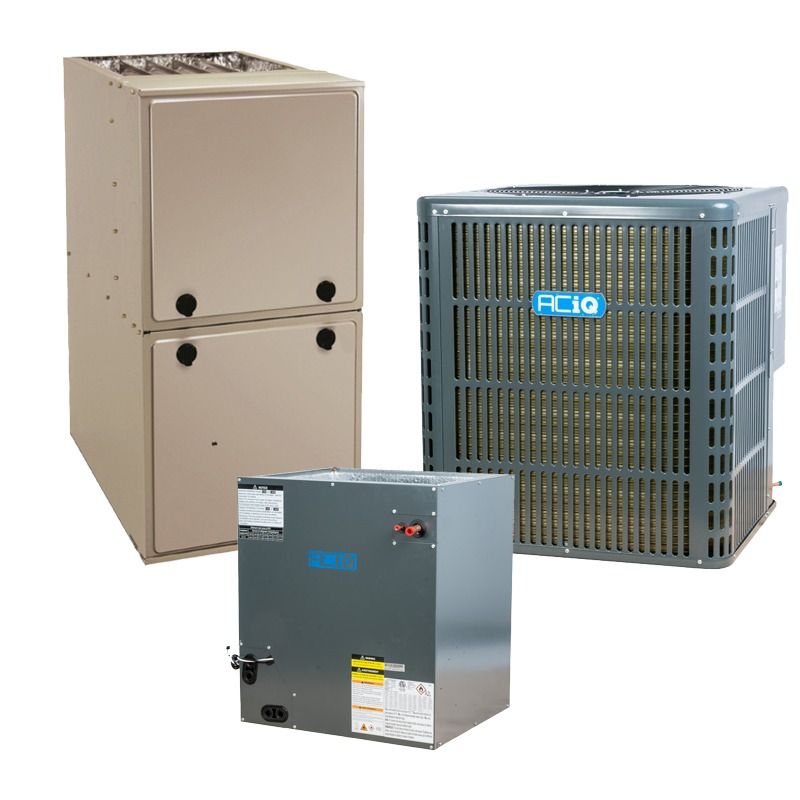

Aciq AC-I-48AC14 4 Ton 14 SEER2 92% AFUE 100,000 BTU Furnace and AC System (4 Ton) R92MSN1002120A

Product Description

The Aciq AC-I-48AC14 is a matched HVAC system combining a 4 ton condenser (13.8 SEER2) pre-charged with R32, a 100,000 BTU 92% AFUE multi-positional gas furnace, and a 21-inch cased evaporator coil. The condenser operates on 208/230V 1 phase, the furnace on 115V 1 phase with an ECM multi-speed blower and direct ignition, and the coil fits 3.5 to 5 ton installations.

• Matched system: 48,000 BTU (4 ton) condenser (13.8 SEER2, R32 pre-charged) with 208/230V 1ph electrical and 27–40 A breaker range
• Furnace: 100,000 BTU input, 92% AFUE, multi-positional (upflow/downflow/horizontal), ECM multi-speed blower, direct silicon nitride hot surface ignitor, 115V 1ph
• Evaporator coil: 21 inch cabinet width, compatible with 3.5–5 ton systems; liquid line 3/8 inch, suction line 3/4 inch

Product Highlights

Complete 4 ton matched system with R32 condenser (13.8 SEER2), 100,000 BTU 92% AFUE multi-positional gas furnace, and 21 inch cased coil for medium to large homes

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-48AC14 / AC-I-4860ACL-21 / R92MSN1002120A

Technical Specifications

• Brand: ACiQ
• MPN: AC-I-48AC14 / AC-I-4860ACL-21 / R92MSN1002120A
• Model SKU: 225629
• System Cooling Capacity: 48,000 BTU (4 Ton)
• Condenser SEER2: 13.8 SEER2
• Condenser EER2: 11.7
• Condenser Refrigerant: R32 (pre-charged)
• Condenser Sound Level: 60 dBA (approx.)
• Condenser Input Voltage: 208/230V 1 Phase 60 Hz
• Condenser Maximum Breaker Size: 40 Amps
• Condenser Minimum Breaker Size: 27 Amps
• Condenser Compressor Type: Rotary
• Condenser Liquid Valve Size: 3/8"
• Condenser Suction Valve Size: 3/4"
• Condenser Dimensions (H x W x D): 32.87" x 29.13" x 29.13"
• Evaporator Coil SKU: AC-I-4860ACL-21
• Coil Tonnage Range: 3.5 to 5 Ton
• Coil Cabinet Width: 21"
• Coil Refrigerant: R32
• Coil Liquid Line: 3/8"
• Coil Suction Line: 3/4"
• Coil Dimensions (H x W x D): 27.80" x 21" x 21.02"
• Furnace SKU: R92MSN1002120A
• Furnace Input BTU: 100,000 BTU
• Furnace AFUE: 92%
• Furnace Output BTU (approx.): 92,000 BTU
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Blower Motor: Multi-speed ECM
• Furnace Maximum CFM: 2000
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Fuel Type: Natural gas (field-convertible to propane with optional kit)
• Furnace Input Voltage: 115V 1 Phase 60 Hz
• Furnace Burner Stages: Single
• Furnace Dimensions (H x W x D): 35" x 21" x 29.5"
• Furnace Exhaust Flue Requirement: Plastic / PVC
