Aciq AC-I-48AC14 4 Ton 14 SEER2 80% AFUE 80,000 BTU Furnace & AC System (Multi-Positional) N80MSN0902420A

Product Description

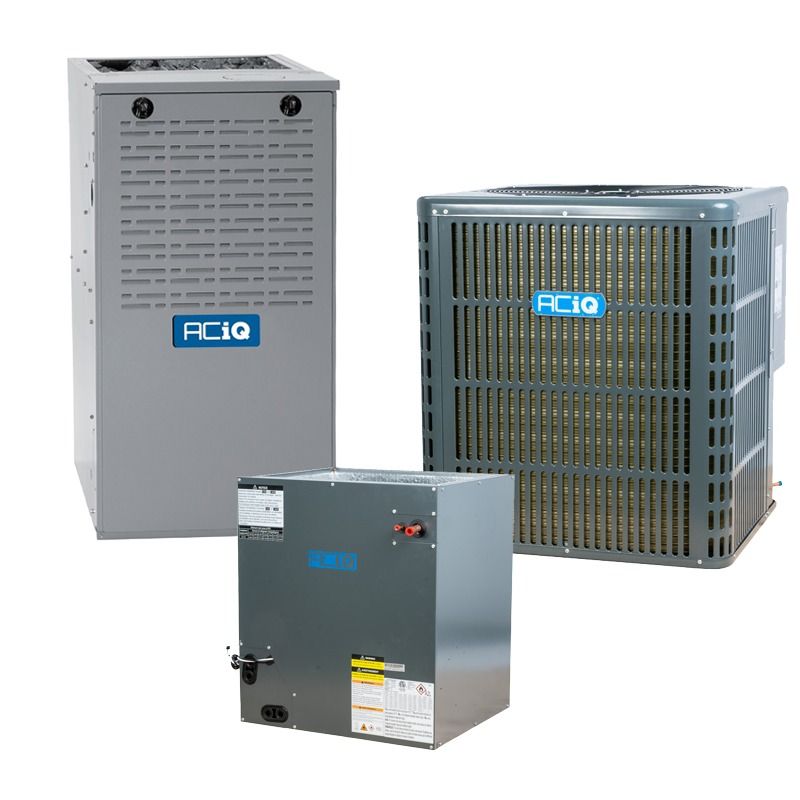

Aciq AC-I-48AC14 / AC-I-4860ACL-24 / N80MSN0902420A is a matched 4-ton HVAC system that pairs a 4-ton outdoor condenser pre-charged with R32 refrigerant with a cased multi-positional evaporator coil and a single-stage gas furnace rated 80% AFUE. The system supports upflow, downflow, and horizontal installations, uses a multi-speed ECM blower in the furnace, and the coil includes a factory-installed TXV and an R32 leak mitigation kit.

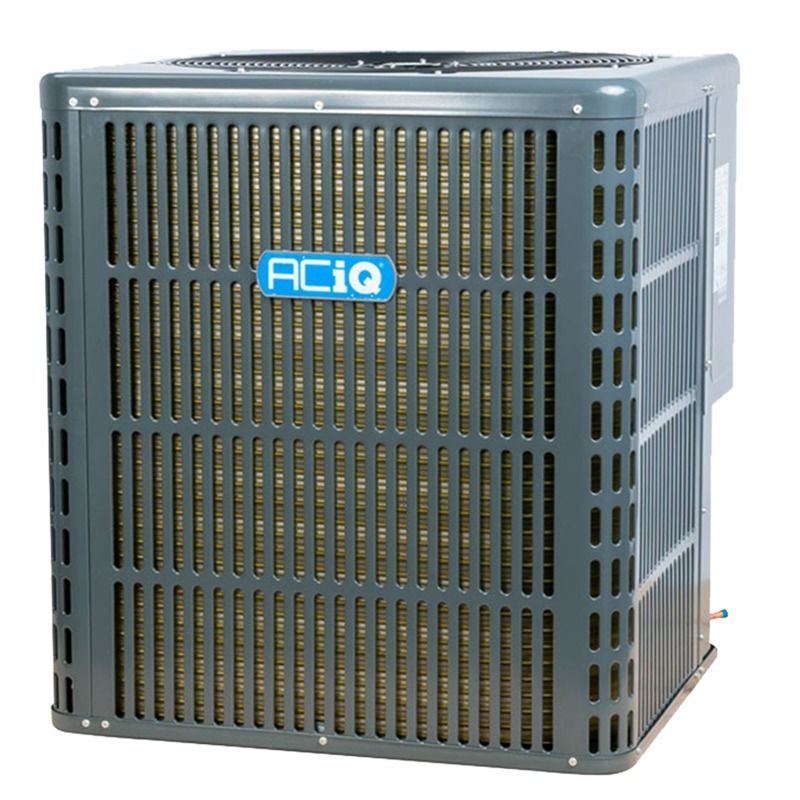

• Condenser: 4 Ton (48,000 BTU), 13.8 SEER2 (marketed as 14 SEER2), R32 refrigerant, 208/230V 1Ph

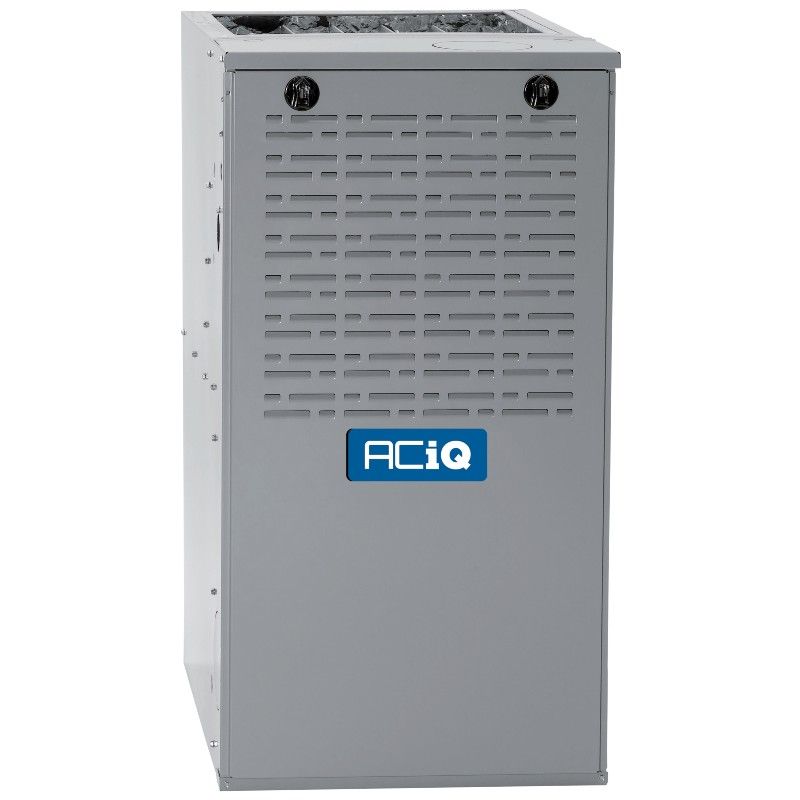

• Furnace: single-stage natural gas, 80% AFUE, multi-speed ECM blower, direct silicon nitride hot surface ignition, 115V

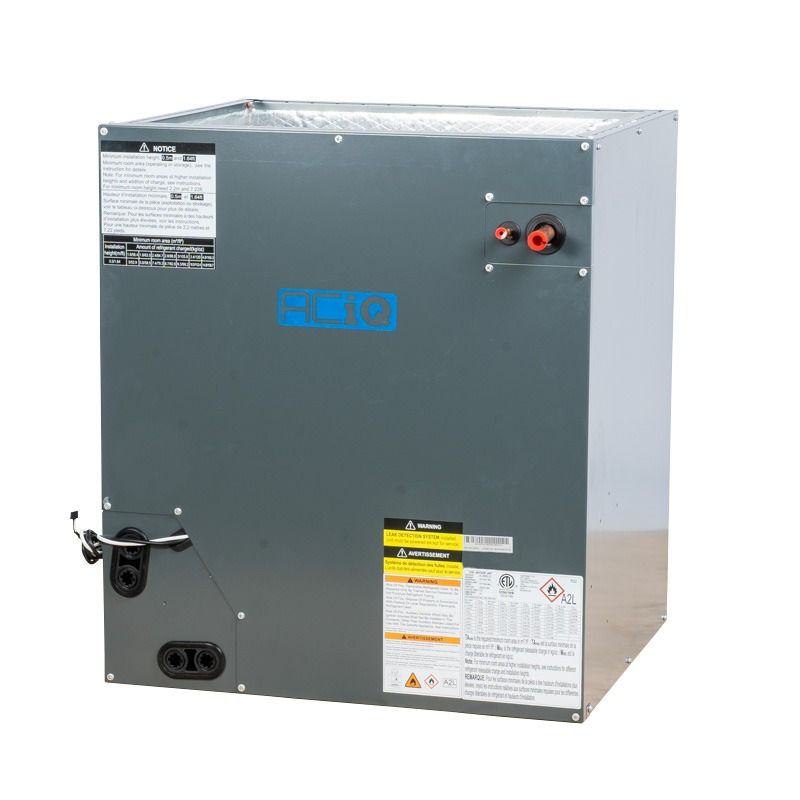

• Evaporator coil: cased A-coil, multi-positional, factory-installed TXV, compatible with R32; system includes R32 leak mitigation kit

Product Highlights

Matched 4-ton R32 system with multi-positional indoor components, multi-speed ECM blower, factory TXV.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-48AC14 / AC-I-4860ACL-24 / N80MSN0902420A

Technical Specifications

• Brand: Aciq
• MPN: AC-I-48AC14 / AC-I-4860ACL-24 / N80MSN0902420A
• Cooling Capacity: 4 Ton (48,000 BTU)
• SEER2 Rating: 13.8 (marketed as 14 SEER2)
• EER2 Rating: 11.7
• Refrigerant Type: R32
• Condenser Refrigerant Charge: 91.71 oz
• Condenser Compressor Type: Rotary
• Condenser Input Voltage: 208/230V 1 Phase 60 Hz
• Condenser Max Breaker Size: 40 Amps
• Condenser Min Breaker Size: 27 Amps
• Condenser Dimensions (H x W x D): 32.87" x 29.13" x 29.13"
• Condenser Weight: 187 lbs
• Condenser Sound Level: 60 dBA
• System Heating BTU (Furnace Input): 88,000 BTU
• Furnace Output (approx.): 70,400 BTU (88,000 BTU input at 80% AFUE)
• Furnace AFUE: 80%
• Furnace Configuration: Multi-positional (upflow/downflow/horizontal)
• Furnace Blower Motor: Multi-Speed ECM
• Furnace Max CFM: 1960
• Furnace Input Voltage: 115V 1 Phase 60 Hz
• Furnace Max Breaker Size: 15 Amps
• Furnace Ignition: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural Gas (field-convertible to Propane)
• Furnace Dimensions (H x W x D): 33 1/3" x 24 1/2" x 29"
• Furnace Weight: 146 lbs
• Furnace AHRI Certificate Number: 213146142
• Evaporator Coil SKU: AC-I-4860ACL-24
• Coil Tonnage Range: 3.5 to 5 Ton
• Coil Style: Cased A-coil, multi-positional, factory-installed TXV
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 3/4"
• Coil Dimensions (H x W x D): 27.8" x 24.5" x 21.02"
• Coil Weight: 100 lbs
