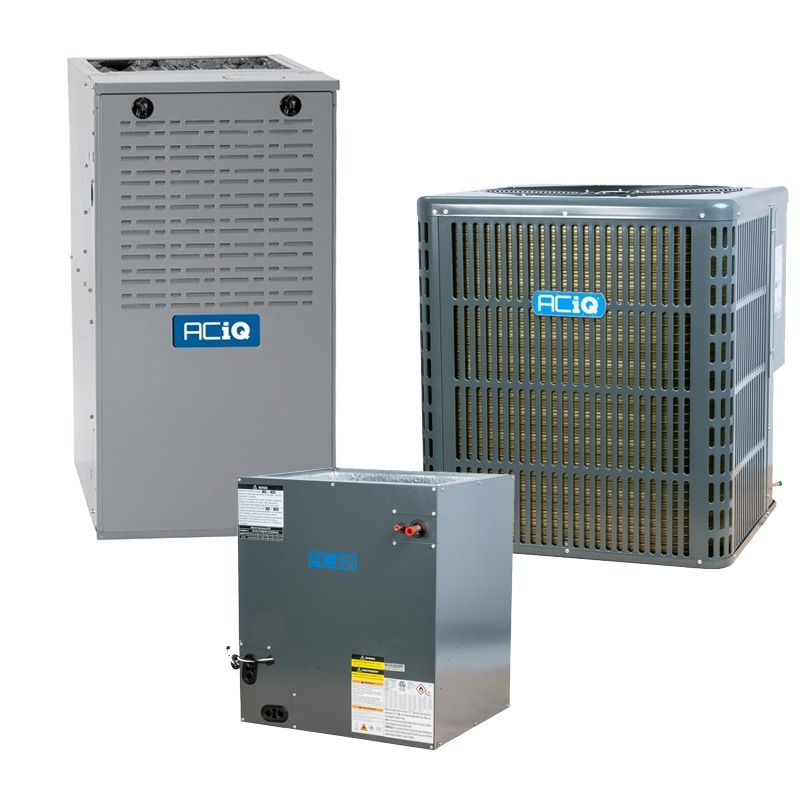

Aciq AC-I-48AC14 4 ton 14 SEER2 80% AFUE 140,000 BTU system (AC-I-4860ACL-24 / G80CTL1352422)

Product Description

Aciq AC-I-48AC14 / AC-I-4860ACL-24 / G80CTL1352422 is a matched HVAC system that pairs a 48,000 BTU (4 ton) 14 SEER2 R32 outdoor condenser with a 132,000 BTU input / 107,000 BTU output 80% AFUE two-stage gas furnace and a 3.5–5 ton cased evaporator coil. The condenser is pre-charged with R32 and includes a leak mitigation kit; the furnace features a variable-speed ECM blower and multi-positional cabinet for flexible installation.

• Complete matched system: 48,000 BTU R32 condenser, two-stage 80% AFUE gas furnace, and 3.5–5 ton cased evaporator coil with factory TXV
• Condenser: 14 SEER2, pre-charged R32 refrigerant, includes R32 leak mitigation kit; electrical 208/230V 1Ph 60Hz
• Furnace: 132,000 BTU input / 107,000 BTU output, two-stage direct ignition, variable-speed ECM blower, multi-positional (upflow/downflow/horizontal)
• Coil: Cased A-coil compatible with R32, liquid line 3/8" and suction line 3/4"

Product Highlights

Matched 4-ton R32 condenser with 14 SEER2 and factory leak mitigation, two-stage 80% AFUE furnace with variable-speed blower, and cased evaporator coil with TXV; multi-positional installation.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-48AC14 / AC-I-4860ACL-24 / G80CTL1352422

Technical Specifications

• Brand: ACiQ
• Manufacturer Part Number: AC-I-48AC14 / AC-I-4860ACL-24 / G80CTL1352422
• Product Type: Matched HVAC system (condenser, furnace, evaporator coil)
• Condenser - Model: AC-I-48AC14
• Condenser - Cooling Capacity: 48,000 BTU (4 Ton)
• Condenser - SEER2: 14 SEER2 (listed as 13.8 in source — values are consistent within rounding/tolerances)
• Condenser - EER2: 11.7
• Condenser - Refrigerant: R32 (pre-charged)
• Condenser - Noise Level: 60 dBA (approx.)
• Condenser - Input Voltage: 208/230V 1 Phase 60 Hz
• Condenser - Max Breaker: 40 Amps
• Condenser - Min Breaker: 27 Amps
• Condenser - Dimensions (H x W x D): 32.87" x 29.13" x 29.13"
• Condenser - Weight: 187 lbs
• Furnace - Model: G80CTL1352422
• Furnace - Input BTU: 132,000 BTU
• Furnace - Output BTU: 107,000 BTU
• Furnace - AFUE: 80%
• Furnace - Blower Motor: Variable Speed ECM
• Furnace - Maximum CFM: 2265
• Furnace - Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace - Input Voltage: 115V 1 Phase 60 Hz
• Furnace - Burner Stages: Two
• Furnace - Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace - Fuel Type: Natural gas (field-convertible to propane with optional kit)
• Furnace - Dimensions (H x W x D): 33.333" x 24.5" x 29.0"
• Furnace - Weight: 163 lbs
• Coil - Model: AC-I-4860ACL-24
• Coil - Tonnage: 3.5 to 5 Ton
• Coil - Style: Cased A-coil
• Coil - Refrigerant Compatibility: R32
• Coil - Liquid Line: 3/8"
• Coil - Suction Line: 3/4"
• Coil - Dimensions (H x W x D): 27.8" x 24.5" x 21.02"
• Coil - Weight: 100 lbs
• AHRI Certificate Number (Furnace): 213148667
• Exhaust Flue Requirement (Furnace): Metal
• Notes (installation): System requires compatible indoor equipment and professional installation; R32 leak detection/mitigation compliance required
