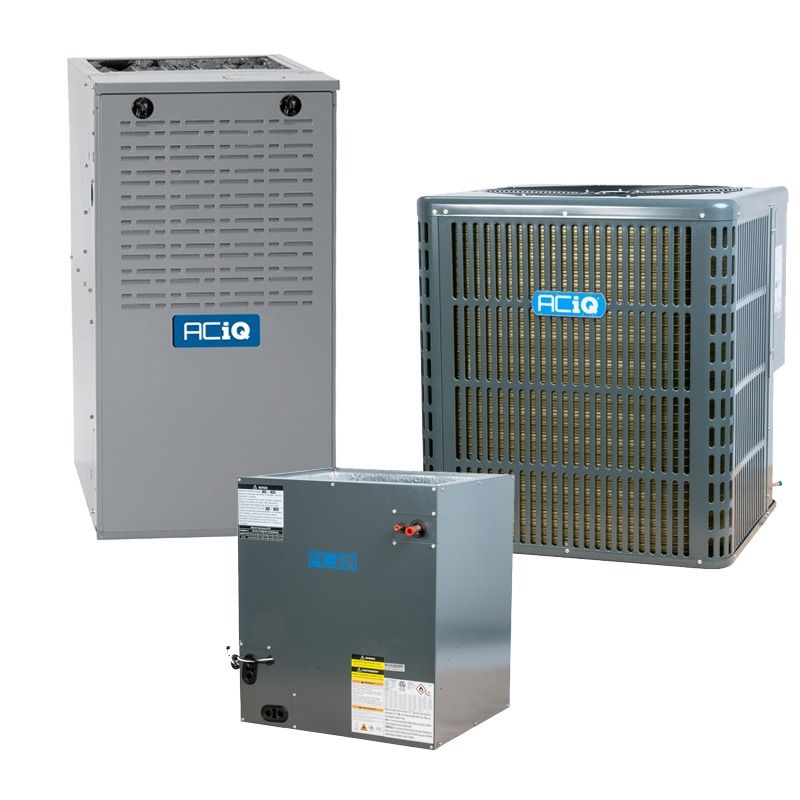

Aciq AC-I-48AC14 4 Ton 14 SEER2 80% AFUE 100,000 BTU Furnace and AC System (21 inches Coil) G80CTL1102120

Product Description

The ACiQ AC-I-48AC14 system pairs a 4 ton R32 condenser with a multi-positional two-stage gas furnace (AC-I-4860ACL-21 / G80CTL1102120) and a 21-inch cased evaporator coil. The condenser is pre-charged for R32 refrigerant and requires 208/230V 1-phase power; the furnace operates at 115V and provides 110,000 BTU input (89,000 BTU output at 80% AFUE). The furnace features a variable-speed ECM blower and two-stage burner for staged heating.

• Matched 4 ton condenser and 100,000 BTU-class two-stage furnace with 21-inch cased A-coil; system pre-charged with R32 and includes R32 leak mitigation kit
• Condenser: 13.8 SEER2 (listed as 14 SEER2), 48,000 BTU cooling capacity, rotary compressor, 208/230V 1-Phase, ~60 dBA outdoor sound level
• Furnace: 110,000 BTU input / 89,000 BTU output (80% AFUE), variable-speed ECM blower, two burner stages, silicon nitride hot surface ignitor, multi-positional configuration

Product Highlights

Matched 4 ton R32 condenser, multi-positional 80% AFUE two-stage 100,000 BTU-class furnace, and 21-inch cased evaporator coil; pre-charged R32 and includes leak mitigation kit; 208/230V condenser and 115V furnace electrical.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-48AC14 / AC-I-4860ACL-21 / G80CTL1102120

Technical Specifications

• Brand: ACiQ
• Manufacturer Part Number: AC-I-48AC14 / AC-I-4860ACL-21 / G80CTL1102120
• System Tonage: 4 Ton (condenser) / 3.5-5 Ton (coil) / 100,000 BTU-class furnace
• Condenser SEER2: 13.8 (listed as 14 SEER2)
• Condenser Cooling Capacity: 48,000 BTU
• Condenser Refrigerant: R32
• Condenser Sound Level: Approximately 60 dBA
• Condenser Input Voltage: 208/230V 1 Phase 60 Hz
• Condenser Max Breaker Size: 40 Amps
• Condenser Min Breaker Size: 27 Amps
• Condenser Compressor Type: Rotary
• Condenser Liquid Line Size: 3/8 inch
• Condenser Suction Line Size: 3/4 inch
• Precharged Refrigerant: Pre-charged with R32
• Refrigerant Kit Included: R32 refrigerant leak mitigation kit included
• Furnace Input BTU: 110,000 BTU
• Furnace Output BTU: 89,000 BTU (80% AFUE)
• Furnace AFUE: 80%
• Furnace Blower Motor: Variable speed ECM
• Furnace Burner Stages: Two-stage
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural gas (field-convertible to propane with optional LP kit)
• Furnace Configuration: Multi-positional (upflow, downflow, horizontal)
• Furnace Input Voltage: 115V 1 Phase 60 Hz
• Furnace AHRI Certificate Number: 213148665
• Furnace Exhaust Flue Requirement: Metal
• Evaporator Coil Type: Cased A-coil
• Evaporator Coil Width: 21 inches
• Evaporator Coil Tonnage Range: 3.5 to 5 Ton
• Evaporator Coil Refrigerant: R32
