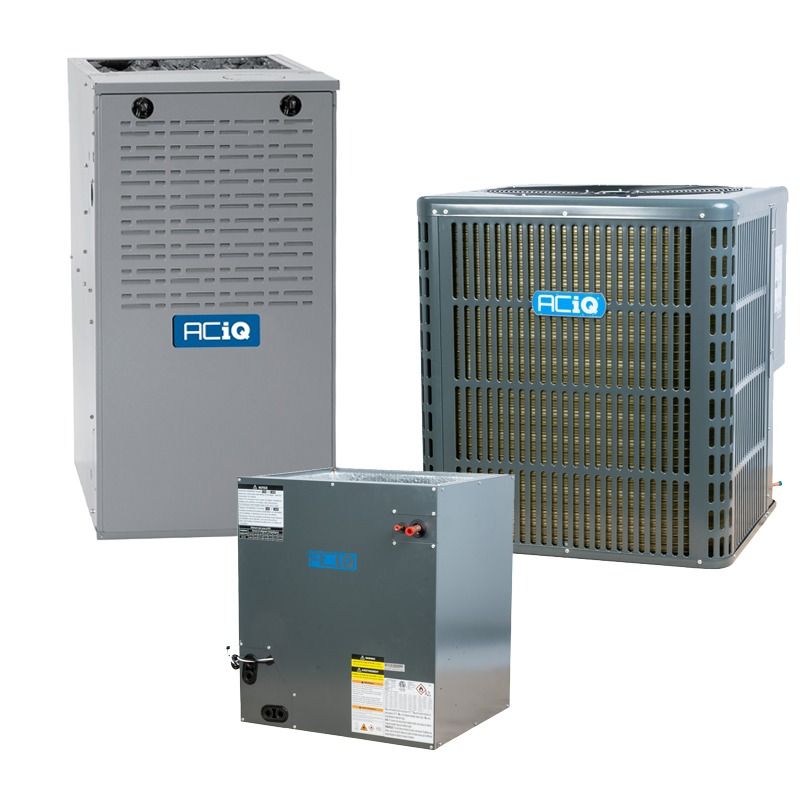

Aciq AC-I-48AC14 4 Ton 14 SEER2 80,000 BTU Furnace & AC System (Multi-Positional) G80CTL0902120

Product Description

AciQ AC-I-48AC14 / AC-I-4860ACL-21 / G80CTL0902120 is a matched 4-ton HVAC system combining a 48,000 BTU R32 condenser, a multi-positional 80,000 BTU two-stage gas furnace, and a compatible cased evaporator coil. The condenser is pre-charged with R32 refrigerant (91.71 oz) and rated 13.8 SEER2; the furnace provides approximately 71,000 BTU output at 80% AFUE and uses a communicating variable-speed ECM blower.

• Matched system: 48,000 BTU condenser (SEER2 13.8) with AC-I-4860ACL-21 coil and G80CTL0902120 two-stage furnace
• Condenser pre-charged for R32 (91.71 oz) and includes R32 refrigerant leak mitigation kit; condenser electrical 208/230V 1Ph 60Hz
• Furnace: 88,000 BTU input / ~71,000 BTU output (80% AFUE), direct ignition silicon nitride hot surface ignitor, variable-speed ECM blower (max 2330 CFM), multi-positional

Product Highlights

Matched 4-ton R32 system with multi-positional furnace and cased coil; condenser SEER2 13.8; furnace 80% AFUE.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-48AC14 / AC-I-4860ACL-21 / G80CTL0902120

Technical Specifications

• Brand: AciQ
• Model / MPN: AC-I-48AC14 / AC-I-4860ACL-21 / G80CTL0902120
• System Tonnage: 4 Ton (condenser); Coil 3.5–5 Ton
• Condenser Cooling Capacity: 48,000 BTU
• Condenser SEER2: 13.8
• Condenser EER2: 11.7
• Condenser Refrigerant: R32
• Condenser Refrigerant Charge: 91.71 oz
• Condenser Electrical (Input Voltage): 208/230V 1 Phase 60 Hz
• Condenser Max Breaker Size: 40 Amps
• Condenser Dimensions (W x H x D): 29.13" x 32.87" x 29.13"
• Condenser Weight: 187 lbs
• Furnace SKU: G80CTL0902120
• Furnace Heating Input: 88,000 BTU
• Furnace Heating Output: 71,000 BTU (approx.)
• Furnace AFUE: 80%
• Furnace Blower Motor: Communicating variable speed ECM
• Furnace Maximum CFM: 2330
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Electrical (Input Voltage): 115V 1 Phase 60 Hz
• Furnace Burner Stages: Two
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural Gas (field-convertible to propane with optional LP kit)
• Furnace Dimensions (H x W x D): 33 1/3" x 21" x 29"
• Furnace Weight: 146 lbs
• Coil SKU: AC-I-4860ACL-21
• Coil Tonnage Range: 3.5 to 5 Ton
• Coil Refrigerant: R32
• Coil Weight: 87 lbs
• Coil Liquid Line: 3/8"
• Coil Suction Line: 3/4"
• Coil Dimensions (W x H x D): 21" x 27.80" x 21.02"
• Coil Cabinet Width: 21"
• Additional Features: Factory-installed TXV on coil; R32 leak mitigation kit; California Low NOx compliant furnace model
